TRANSMISSION

GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH

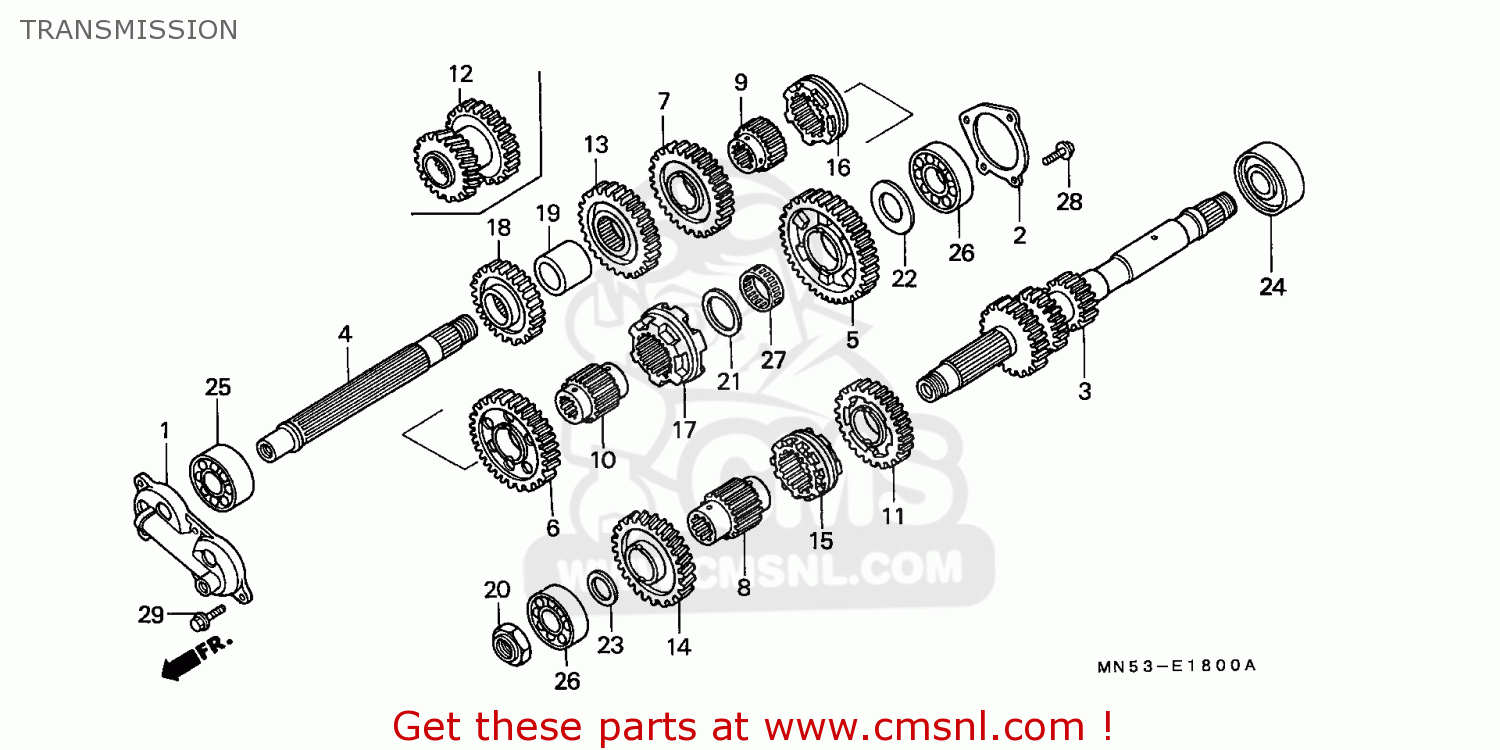

Transmission diagramma GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH

TRANSMISSION GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH
TRANSMISSION GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
23150MN5000
rif: 1
HOLDER COMP,TRNS
€ 51.50
2
23161MN5000
rif: 2
PLATE,CT/SHAFT BR
23161MN5000
€ 11.00
3
23210MN5000
rif: 3
MAINSHAFT COMP.
€ 422.00
4
23220MN5000
rif: 4
SHAFT COMP,COUNTE
€ 150.50
5
23421MT8000
rif: 5
GEAR,C-1
€ 201.50
6
23441MT8000
rif: 6
GEAR,C-2
€ 129.50
7
23451MT8000
rif: 7
GEAR,C-3
€ 116.00
8
23455MN5010
rif: 8
COLLAR,SPLINE,28X
23455MN5010
€ 80.50
9
23456MT8000
rif: 9
COLLAR,SPLINE 28X
€ 53.50
10
23457MN5000
rif: 10
COLLAR,SPLINE,28X
€ 68.00
11
23461MT8000
rif: 11
GEAR,M-4
23461MT8000
€ 132.50
13
23471MT8000
rif: 13
GEAR,C-4
23471MT8000
€ 124.50
14
23481MN5000
rif: 14
GEAR,M-5
23481MN5000
€ 140.50
15
23483MT8000
rif: 15
SHIFTER,FRONT
23483MT8000
€ 60.00
16
23484MT8000
rif: 16
SHIFTER,CENTER
23484MT8000
€ 57.00
17
23485MT8000
rif: 17
SHIFTER,REAR
23485MT8000
€ 60.00
18
23491MT8000
rif: 18
GEAR,C-5
€ 105.50
19
23492MT8000
rif: 19
COLLAR,27.8X35X28
€ 13.00
20
90201MN5000
rif: 20
NUT,HEX 22MM
€ 6.00
21
90467MN5000
rif: 21
WASHER,35.2X46X1.
90467MN5000
€ 5.00
22
90468MN5000
rif: 22
WASHER,25X47X2.6
90468MN5000
€ 5.00
23
90471MN5000
rif: 23
WASHER,25X40X2.6
€ 6.50
24
91001MN5003
rif: 24
B/BRG N/RAD N/COM
91001MN5003
€ 32.00
25
91003MN5003
rif: 25
B/BRG RAD N/COM
91003MN5003
€ 26.00
26
91006MN5003
rif: 26
B/BRG RAD N/COM
91006MN5003
€ 21.00
27
91014MN5003
rif: 27
BRG,NDL.35X40X16
91014MN5003
€ 10.50
28
957010601608
rif: 28
BOLT,FLANGE,6X16
957010601608
€ 1.00
29
957010602008
rif: 29
BOLT,FLANGE,6X20
957010602008
€ 1.00
