CARBURETOR (COMPONENT PARTS)

GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH

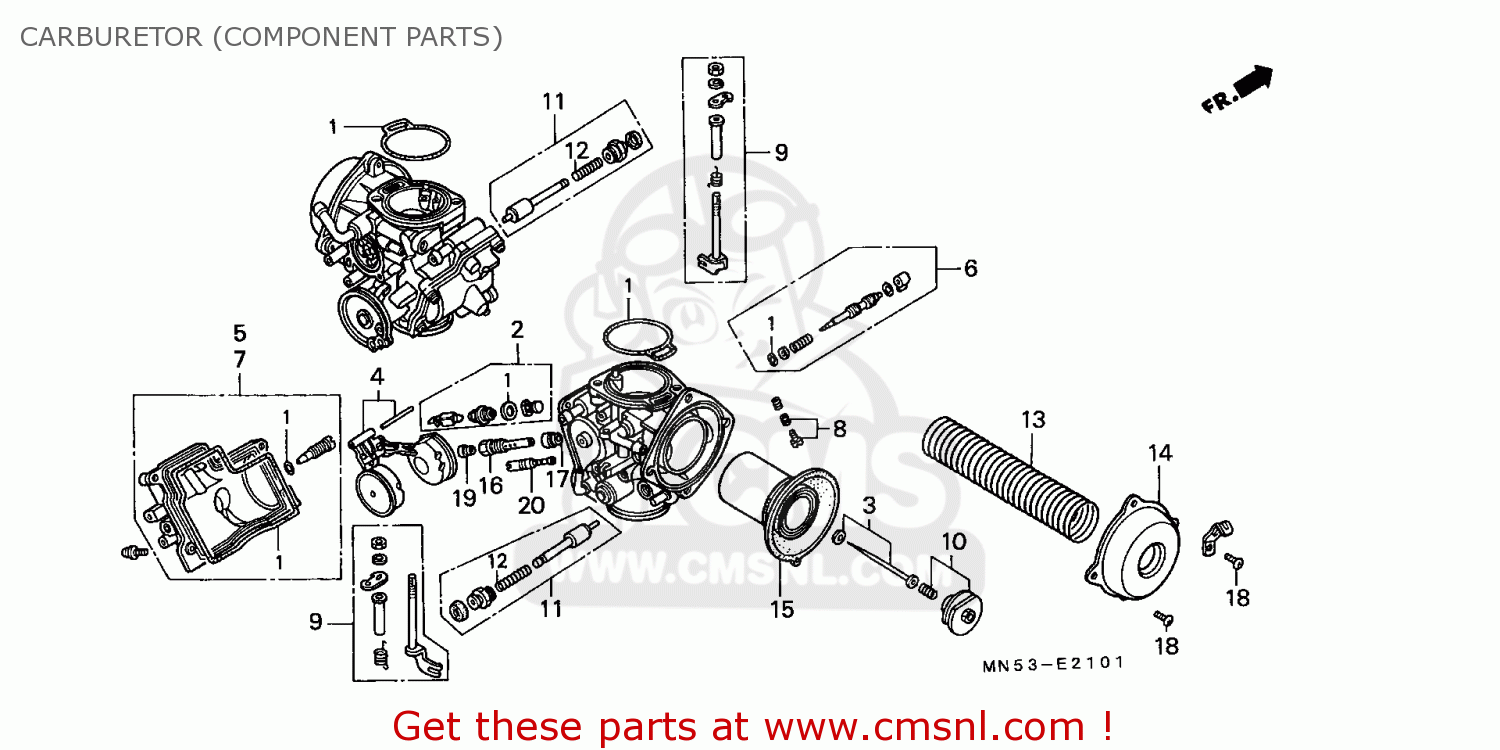

Carburetor (component parts) diagramma GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH

CARBURETOR (COMPONENT PARTS) GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH
CARBURETOR (COMPONENT PARTS) GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
16010MT2004
rif: 1
GASKET SET A
16010MT2004
€ 30.00
2
16011MN5004
rif: 2
VALVE SET,FLOAT
€ 52.50
3
16012MT8010
rif: 3
NEEDLE SET,JET
16012MT8010
€ 28.00
4
16013MT2004
rif: 4
FLOAT SET
16013MT2004
€ 34.50
5
16015MT8010
rif: 5
CHAMBER SET A,FLO
€ 61.00
6
16016MS8681
rif: 6
SCREW SET
16016MS8681
€ 24.00
7
16023MT8010
rif: 7
CHAMBER SET B FLO
€ 59.00
8
16029MB0671
rif: 8
SCREW SET C
16029MB0671
€ 21.00
9
16031MN5014
rif: 9
LEVER SET,STARTER
€ 46.50
10
16037MN5004
rif: 10
PLATE SET
16037MN5004
€ 12.50
11
16046MT8000
rif: 11
VALVE SET,STARTER
€ 41.00
12
16050MT2004
rif: 12
SPRING,COMPRESSIO
€ 12.50
13
16051MT8000
rif: 13
SPRING,COMPRESSIO
16051MT8000
€ 12.50
14
16107MM8004
rif: 14
TOP COMP
16107MM8004
€ 47.50
15
16111MN5004
rif: 15
PISTON COMP.,VACU
16111MN5004
€ 212.00
16
16165MT8000
rif: 16
HOLDER,NEEDLE JET
16165MT8000
€ 63.00
17
16168MT8000
rif: 17
JET,HOLDER
16168MT8000
€ 22.00
18
93500040100A
rif: 18
SCREW,CROSS,4X10
93500040100A
€ 1.00
19
991013931580
rif: 19
JET,MAIN(#158)
991013931580
€ 10.00
20
99103MT80600
rif: 20
JET,SLOW,#60
99103MT80600
€ 15.50
