CARBURETOR (ASSY.)

GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH

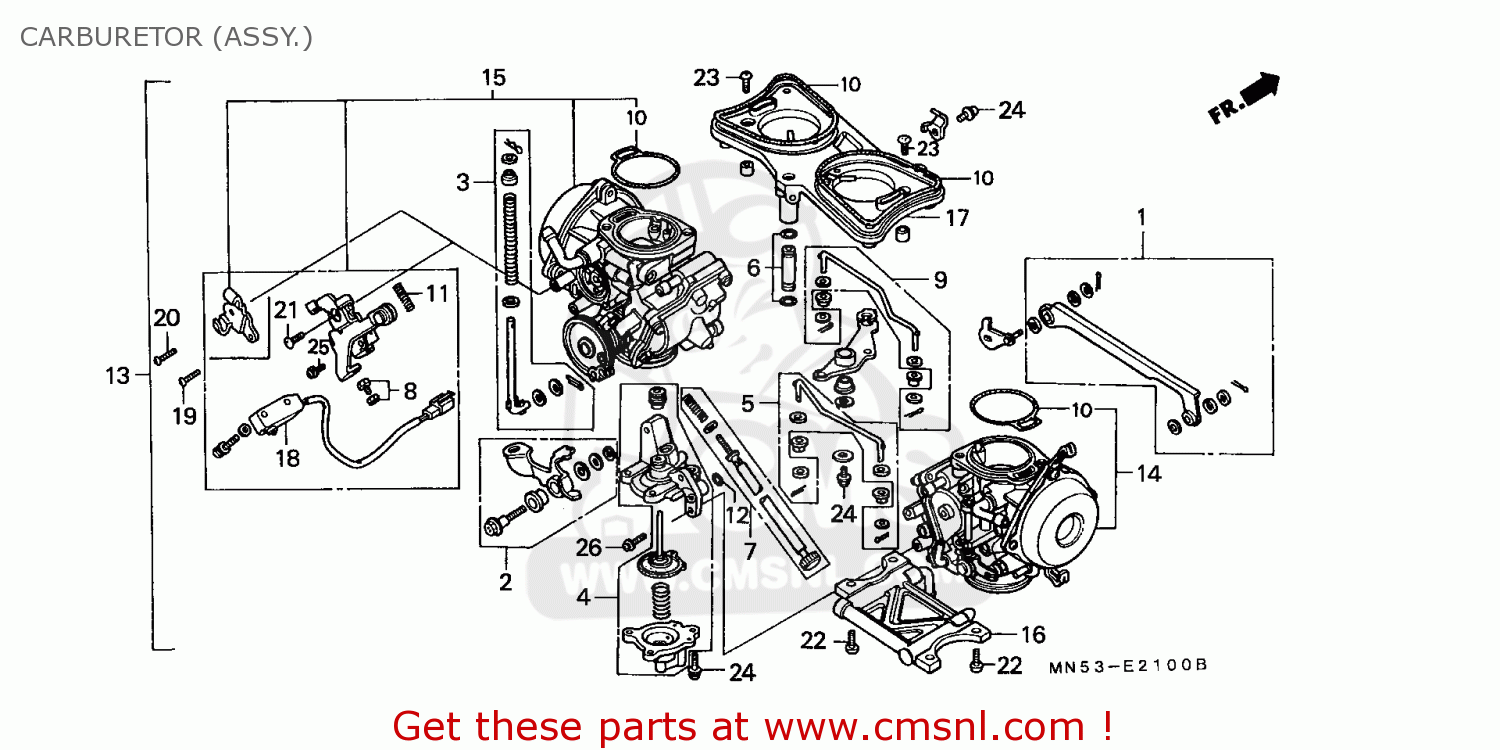

Carburetor (assy.) diagramma GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH

CARBURETOR (ASSY.) GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH

i prezzi sono in EUR

rif

parte #

descrizione

quantità

1

16017MT8000
rif: 1

LEVER SET,LINK

€ 40.00

2

16018MN5004
rif: 2

ARM SET,PUMP

€ 57.00

3

16019MT8000
rif: 3

ROD SET,PUMP

€ 24.00

4

16021MT8000
rif: 4

DIAPHRAGM SET

€ 78.00

5

16025MN5004
rif: 5

ROD SET.,A,STARTE

€ 18.50

6

16026MN5004
rif: 6

JOINT SET,FUEL

€ 27.50

7

16028MN5004
rif: 7

SCREW SET B

€ 32.00

9

16035MN5004
rif: 9

ROD SET B,STERTER

€ 18.00

10

16040MN5014
rif: 10

GASKET SET B

€ 15.50

13

16100MT8600
rif: 13

CARBURETOR ASSY.

€ 1,223.50

14

16101MT8600
rif: 14

CARBURETOR ASSY.R

€ 612.00

15

16102MT8600
rif: 15

CARBURETOR ASSY.L

€ 634.50

16

16119MN5004
rif: 16

PLATE COMP.,STAY

€ 66.00

17

16188MT8000
rif: 17

BASE COMP.,CLEANE

€ 117.00

22

93500060140A
rif: 22

SCREW CROSS 6X14

€ 1.00

23

93500060160A
rif: 23

SCREW,CROSS 6X16

€ 1.00

24

938920401200
rif: 24

SCREW-WASH.,4X12

€ 1.00

26

938920501400
rif: 26

SCREW-WASHER,5X14

€ 0.50
