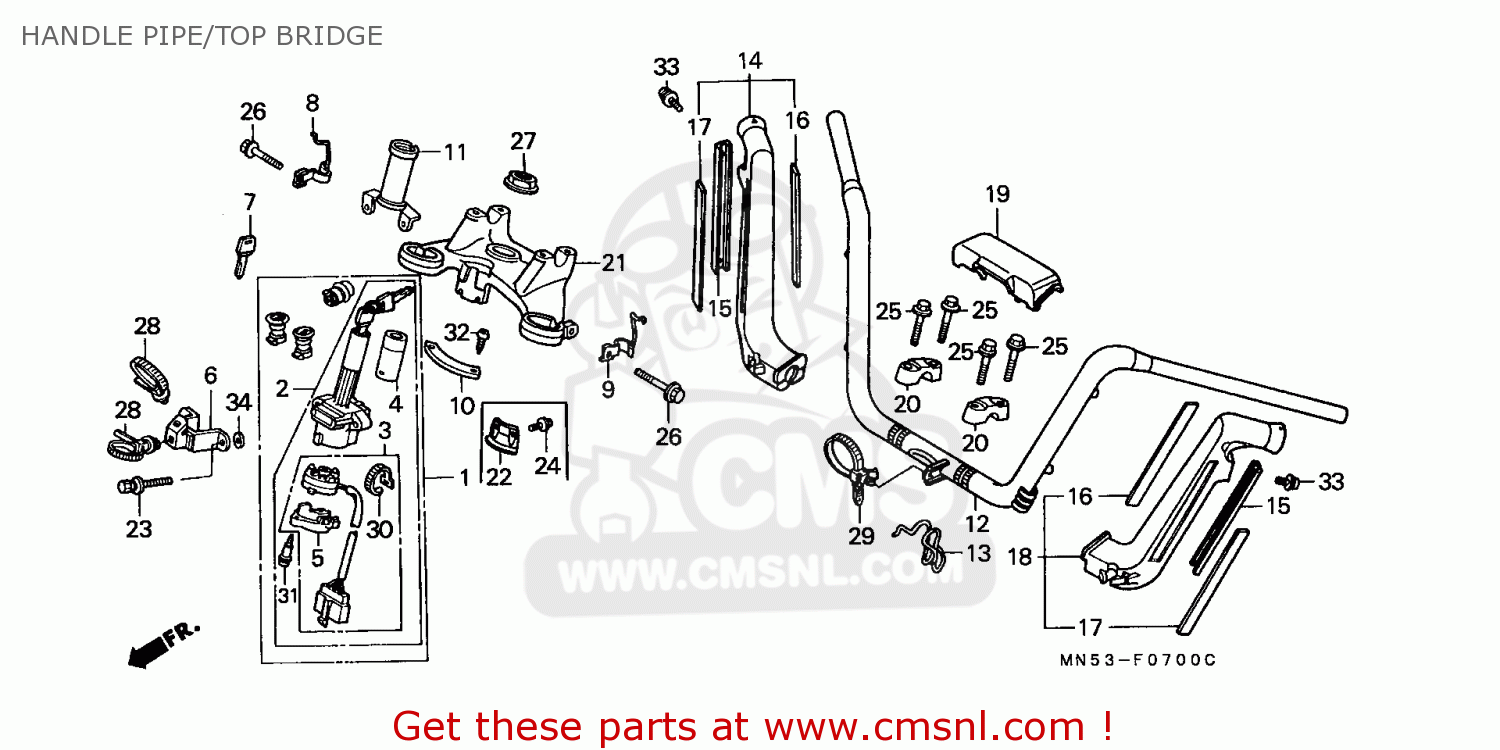

HANDLE PIPE/TOP BRIDGE

rif

parte #

descrizione

quantità

1

35010MT8651
rif: 1

KEY SET.

€ 278.50

2

35100MN5614
rif: 2

SW ASSY.,COMB & L

€ 201.00

3

35101MN5013
rif: 3

BASE COMP.,CONTAC

€ 68.50

5

35105MG9681
rif: 5

COVER,SWITCH

€ 8.50

6

35105MN5000
rif: 6

STAY,CORD CLAMPER

€ 13.50

7

35121MN9611
rif: 7

KEY,BLANK (NO.1)

€ 13.00

8

45158MN5000
rif: 8

CLAMP,R HOSE UP

€ 8.00

9

45159MN5000
rif: 9

CLAMP,L HOSE UP

€ 9.00

10

50341MN5000
rif: 10

COVER,HANDLE STOP

€ 6.00

11

50410MT8000
rif: 11

GUARD,COMBINATION

€ 16.00

12

53100MN5000
rif: 12

PIPE.STRG.HANDLE

€ 273.50

13

53101MW5000
rif: 13

GUIDE,THROTTLE CA

€ 4.00

14

53110MN5000ZA
rif: 14

COVER,R ST*TYPE1*

€ 82.50

15

53111MN5000ZA
rif: 15

PLATE,HND*TYPE 1*

€ 81.50

16

53115MN5300
rif: 16

MOULDING A,HANDLE

€ 8.00

17

53116MN5300
rif: 17

MOULDING B,HANDLE

€ 8.00

18

53120MN5000ZA
rif: 18

COVER,L ST*TYPE1*

€ 82.50

19

53130MN5000
rif: 19

COVER HNDL.CENTER

€ 23.50

20

53131MN5000
rif: 20

HOLDER,UPPER

€ 13.00

21

53230MN5610
rif: 21

BRIDGE,FORK TOP

€ 256.00

22

53231MN5610
rif: 22

PLATE,STEERING LO

€ 11.00

23

90103MN5000
rif: 23

BOLT COMB SW SET

€ 5.50

24

90107KM9000
rif: 24

BOLT,6X10

€ 3.00

25

957010803502
rif: 25

BOLT,FLANGE,8X35

€ 2.00

26

90155167000
rif: 26

BOLT,FLANGE,7X36

€ 2.50

27

90304MJ4670
rif: 27

NUT,FLANGE.,STEER

€ 8.00

28

90672MN5000
rif: 28

CLIP,WIRE HARNESS

€ 4.00

29

90672SA0003
rif: 29

CABLE STRAP

€ 7.50

30

91058MG9681
rif: 30

BAND,SELF LOCK

€ 4.00

31

91059MG9681
rif: 31

SCREW,TAPPING,3X1

€ 2.00

32

93500040060G
rif: 32

SCREW,CROSS 4X6

€ 0.50

33

938910400817
rif: 33

SCREW.WASH 4X8

€ 1.00

tutti gli assemblaggi
