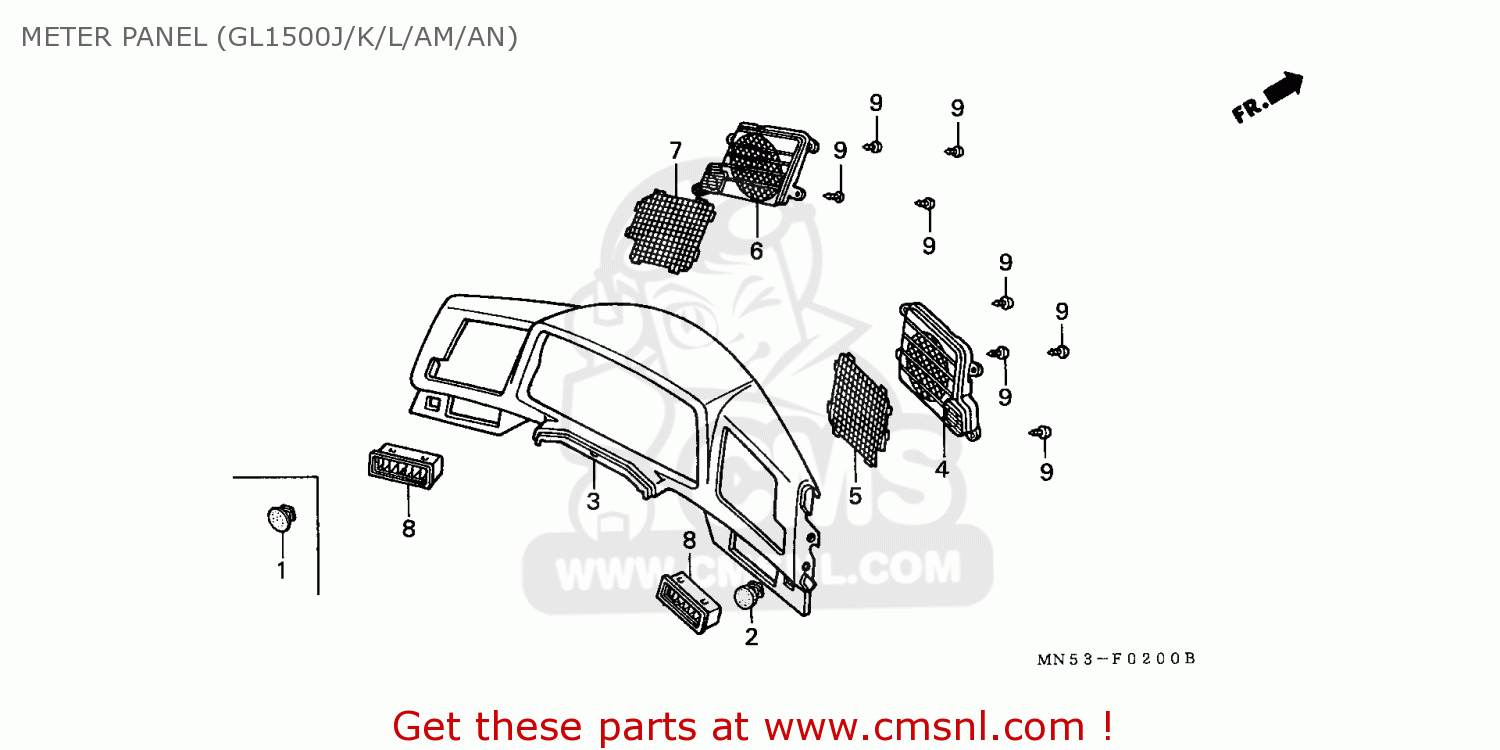

METER PANEL (GL1500J/K/L/AM/AN)

GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH

Meter panel (gl1500j/k/l/am/an) diagramma GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH

METER PANEL (GL1500J/K/L/AM/AN) GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH

i prezzi sono in EUR

rif

parte #

descrizione

quantità

2

64236MG9770
rif: 2

GROMMET,HDLP ADJ.

€ 5.00

3

64240MT8000ZC
rif: 3

PANEL,METE*TYPE1*

€ 104.00

4

64242MN5000ZA
rif: 4

COVER,R.S*TYPE 1*

€ 12.00

5

64243MN5000ZA
rif: 5

GRILLE,R S*TYPE1*

€ 17.50

6

64247MN5000ZA
rif: 6

COVER,L.S*TYPE 1*

€ 14.00

7

64248MN5000ZA
rif: 7

GRILLE,L S*TYPE1*

€ 17.00

8

64480MN5000ZA
rif: 8

OUTLET,FR*TYPE 1*

€ 34.50

9

9390324320
rif: 9

SCREW,TAPPING,4X12

€ 1.00
