CRANKSHAFT/PISTON

GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH

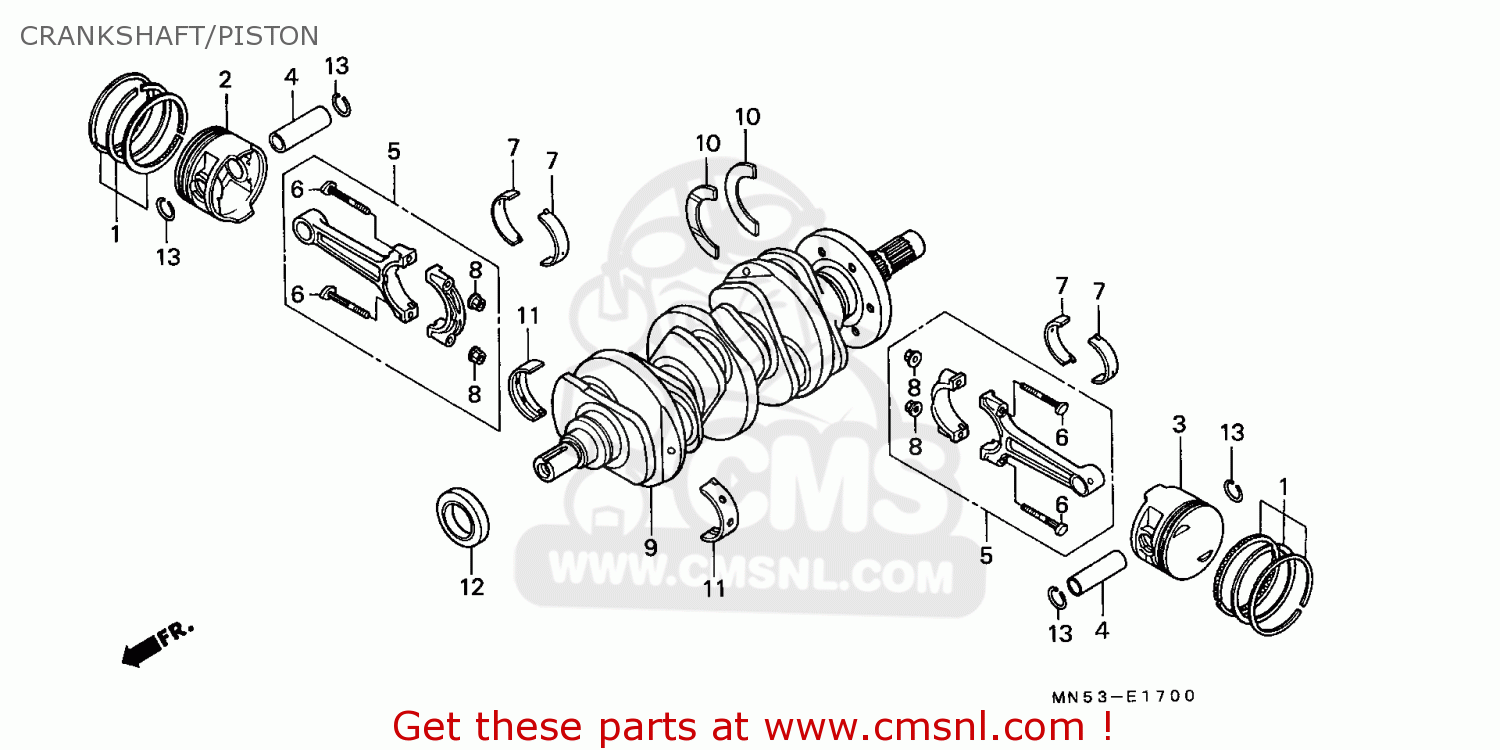

Crankshaft/piston diagramma GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH

CRANKSHAFT/PISTON GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH
CRANKSHAFT/PISTON GL1500A GOLDWING ASPENCADE 1991 (M) SWEDEN / KPH
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
13011MN5305
rif: 1
RING SET PISTON S
13011MN5305
€ 93.50
1
13011MN5306
rif: 1
RING,SET PISTON S
13011MN5306
€ 93.50
1
13021MN5305
rif: 1
RING,SET PISTON O
13021MN5305
€ 72.50
1
13021MN5306
rif: 1
RING SET PISTON O
€ 72.50
1
13031MN5305
rif: 1
RING,SET PISTON O
€ 71.00
1
13031MN5306
rif: 1
RING SET PISTON O
€ 71.00
1
13041MN5305
rif: 1
RING SET,PISTON O
€ 72.50
1
13041MN5306
rif: 1
RING SET PISTON O
€ 72.50
1
13051MN5305
rif: 1
RING SET,PISTON O
€ 72.50
1
13051MN5306
rif: 1
RING SET PISTON O
€ 72.50
2
13101MT2000
rif: 2
PISTON,R.
13101MT2000
€ 66.00
2
13103MT2305
rif: 2
PISTON,R.(0.25)
€ 66.00
2
13104MT2305
rif: 2
PISTON,R.(0.50)
€ 70.00
2
13105MT2305
rif: 2
PISTON,R.(0.75)
€ 67.00
2
13106MT2305
rif: 2
PISTON,R.(1.00)
€ 62.50
3
13102MT2000
rif: 3
PISTON,L.
13102MT2000
€ 42.00
3
13107MT2305
rif: 3
PISTON,L.(0.25)
€ 66.00
3
13108MT2305
rif: 3
PISTON,L.(0.50)
€ 70.00
3
13109MT2305
rif: 3
PISTON,L.(0.75)
€ 67.00
3
13111MT2305
rif: 3
PISTON,L.(1.00)
€ 65.00
4
13111MT2010
rif: 4
PIN,PISTON
13111MT2010
€ 10.00
5
13201MT2000
rif: 5
CONN ROD ASSY A
€ 260.50
5
13202MT2000
rif: 5
CONN ROD ASSY B
€ 260.50
5
13203MT2000
rif: 5
CONN ROD ASSY C
€ 260.50
5
13204MT2000
rif: 5
CONN ROD ASSY D
€ 260.50
5
13205MT2000
rif: 5
CONN ROD ASSY E
€ 260.50
6
13213MC7004
rif: 6
BOLT,CONROD
13213MC7004
€ 6.00
7
13214MN5003
rif: 7
BEARING A,CONNECT
€ 16.50
7
13215MN5003
rif: 7
BEARING B,CONNECT
13215MN5003
€ 16.50
7
13216MN5003
rif: 7
BEARING C,CONNECT
13216MN5003
€ 16.50
7
13217MN5003
rif: 7
BEARING D,CONNECT
13217MN5003
€ 16.50
7
13218MN5003
rif: 7
BEARING E,CONNECT
13218MN5003
€ 16.50
8
13215ML7000
rif: 8
NUT,CONNECTIONG R
13215ML7000
€ 6.00
9
13310MN5010
rif: 9
SHAFT COMP,CRANK
€ 1,925.00
10
13312MN5003
rif: 10
BEARING THRUST
13312MN5003
€ 22.00
11
13314MN5003
rif: 11
BEARING A,MAIN
13314MN5003
€ 13.00
11
13315MN5003
rif: 11
BEARING B,MAIN
13315MN5003
€ 13.00
11
13316MN5003
rif: 11
BEARING C,MAIN
13316MN5003
€ 15.50
11
13317MN5003
rif: 11
BEARING D,MAIN
€ 15.50
11
13318MN5003
rif: 11
BEARING E,MAIN
€ 16.50
12
91201MN5003
rif: 12
OIL SEAL,35X59X8
91201MN5003
€ 12.00
