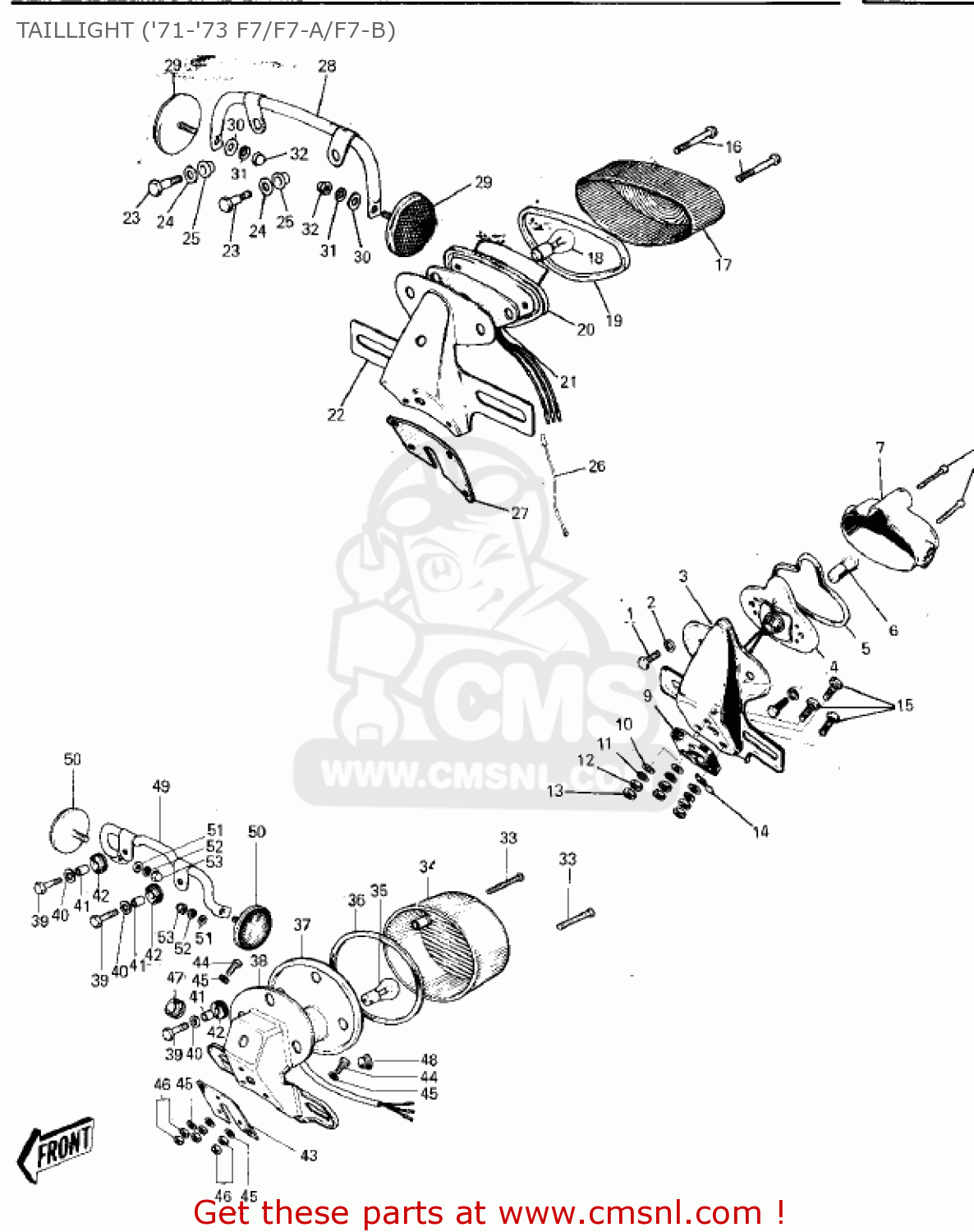

TAILLIGHT ('71-'73 F7/F7-A/F7-B)

F7A 1972 USA

Taillight ('71-'73 f7/f7-a/f7-b) Schemat F7A 1972 USA

TAILLIGHT ('71-'73 F7/F7-A/F7-B) F7A 1972 USA
TAILLIGHT ('71-'73 F7/F7-A/F7-B) F7A 1972 USA
ceny są w EUR
Ref
Część #
opis
Ilość
?
2302401921
Ref: ?
Includes items 1 - 8
LAMP ASSY-TAIL,BLACK
€ 94.00
1
110N0510
Ref: 1
F7
BOLT-HEX HEAD,5X10
€ 0.50
2
461F0500
Ref: 2
WASHER-SPRING,5MM
461F0500
€ 0.50
3
2303600710
Ref: 3
BKT-LICENSE PLT,BLACK
€ 31.00
4
23027009
Ref: 4
SOCKET-TAIL LAMP
€ 17.00
5
23028008
Ref: 5
GASKET-TAIL LAMP (NAS)
23028008
€ 4.00
6
92069023
Ref: 6
BULB 6V 3/21CP
€ 4.00
7
23026010
Ref: 7
LENS,TAIL LAMP
23026010
€ 61.00
8
220E0450
Ref: 8
SCREW-PAN HEAD,4X50
220E0450
€ 3.00
9
35039005
Ref: 9
DAMPER,TAIL LAMP
35039005
€ 6.00
10
92022125
Ref: 10
WASHER,6.5X20X1.6
92022125
€ 1.00
11
461F0600
Ref: 11
WASHER-SPRING,6MM
461F0600
€ 0.50
12
311B0600
Ref: 12
NUT,6MM
311B0600
€ 0.50
13
312B0600
Ref: 13
NUT,6MM
312B0600
€ 0.50
14
35024002
Ref: 14
CLAMP,WIRING HARNESS
35024002
€ 2.00
15
112G0635
Ref: 15
BOLT-UPSET,6X35
112G0635
€ 2.00
?
2302401921
Ref: ?
Includes items 16 -
LAMP ASSY-TAIL,BLACK
€ 94.00
16
220R0455
Ref: 16
SCREW-PAN-CROS
220R0455
€ 3.50
17
23026022
Ref: 17
LENS,TAIL LAMP
23026022
€ 45.00
18
92069023
Ref: 18
BULB 6V 3/21CP
€ 4.00
19
23028016
Ref: 19
GASKET-TAIL LAMP LENS (NAS)
23028016
€ 6.50
?
23027029
Ref: ?
Includes items 20 an
CASE-TAIL LAMP
23027029
€ 23.00
21
23028015
Ref: 21
GASKET-TAIL LAMP CASE (NAS)
23028015
€ 6.00
22
2303601421
Ref: 22
BKT-LICENSE PLT,BLACK
€ 24.00
23
92001111
Ref: 23
BOLT
92001111
€ 6.00
24
920221561
Ref: 24
WASHER,8.5X20X1.6
920221561
€ 2.50
25
92075091
Ref: 25
DAMPER RUBBER
92075091
€ 1.50
26
26011014
Ref: 26
WIRE-IGNITION LEAD
26011014
€ 1.00
27
35039005
Ref: 27
DAMPER,TAIL LAMP
35039005
€ 6.00
28
28013002
Ref: 28
BRACKET-REFLECTOR
28013002
€ 8.00
29
2812008
Ref: 29
UNAVAILABLE IN PRICE BOOK
€ 0.00
30
411B0500
Ref: 30
WASHER-PLAIN,5MM
411B0500
€ 0.50
31
461F0500
Ref: 31
WASHER-SPRING,5MM
461F0500
€ 0.50
32
322N0500
Ref: 32
NUT-CAP,5MM
322N0500
€ 2.00
?
2302406921
Ref: ?
Includes items 33 -
LAMP ASSY,TAIL,BLACK
€ 98.50
33
220E0435A
Ref: 33
F7A/F7B
SCREW-PAN HEAD,4X35
220E0435A
€ 4.00
34
23026023
Ref: 34
LENS,TAIL LAMP
23026023
€ 85.50
35
92069028
Ref: 35
BULB 6V 17/5.3W
92069028
€ 4.50
36
23028018
Ref: 36
GASKET,TAIL LAMP LENS (NAS)
23028018
€ 6.00
37
23027030
Ref: 37
BODY-COMP-TAIL LAMP
€ 72.00
38
2303601921
Ref: 38
FLAT BLK
BKT-LICENSE PLT,BLACK
€ 59.00
39
112G0620
Ref: 39
BOLT 6X20
112G0620
€ 1.00
40
92022125
Ref: 40
WASHER,6.5X20X1.6
92022125
€ 1.00
41
92027129
Ref: 41
COLLAR,6.8X10X8.5
92027129
€ 3.00
42
92075076
Ref: 42
DAMPER
92075076
€ 2.50
43
35039005
Ref: 43
8T
DAMPER,TAIL LAMP
35039005
€ 6.00
44
116B0625
Ref: 44
BOLT-HEX HEAD,6X25
€ 3.50
45
92022125
Ref: 45
WASHER,6.5X20X1.6
92022125
€ 1.00
46
312B0600
Ref: 46
NUT,6MM
312B0600
€ 0.50
47
92071019
Ref: 47
GROMMET,10MM
92071019
€ 2.00
48
92074006
Ref: 48
PLUG,FENDER,RR,12X1
92074006
€ 3.50
49
28013005
Ref: 49
BRACKET-REFLECTOR
28013005
€ 12.00
50
28012009
Ref: 50
REFLECTOR-REFLEX,RR
28012009
€ 16.50
51
411B0500
Ref: 51
WASHER-PLAIN,5MM
411B0500
€ 0.50
52
461F0500
Ref: 52
WASHER-SPRING,5MM
461F0500
€ 0.50
53
322N0500
Ref: 53
NUT-CAP,5MM
322N0500
€ 2.00
