FOOTRESTS/STAND/BRAKE PEDAL

F7A 1972 USA

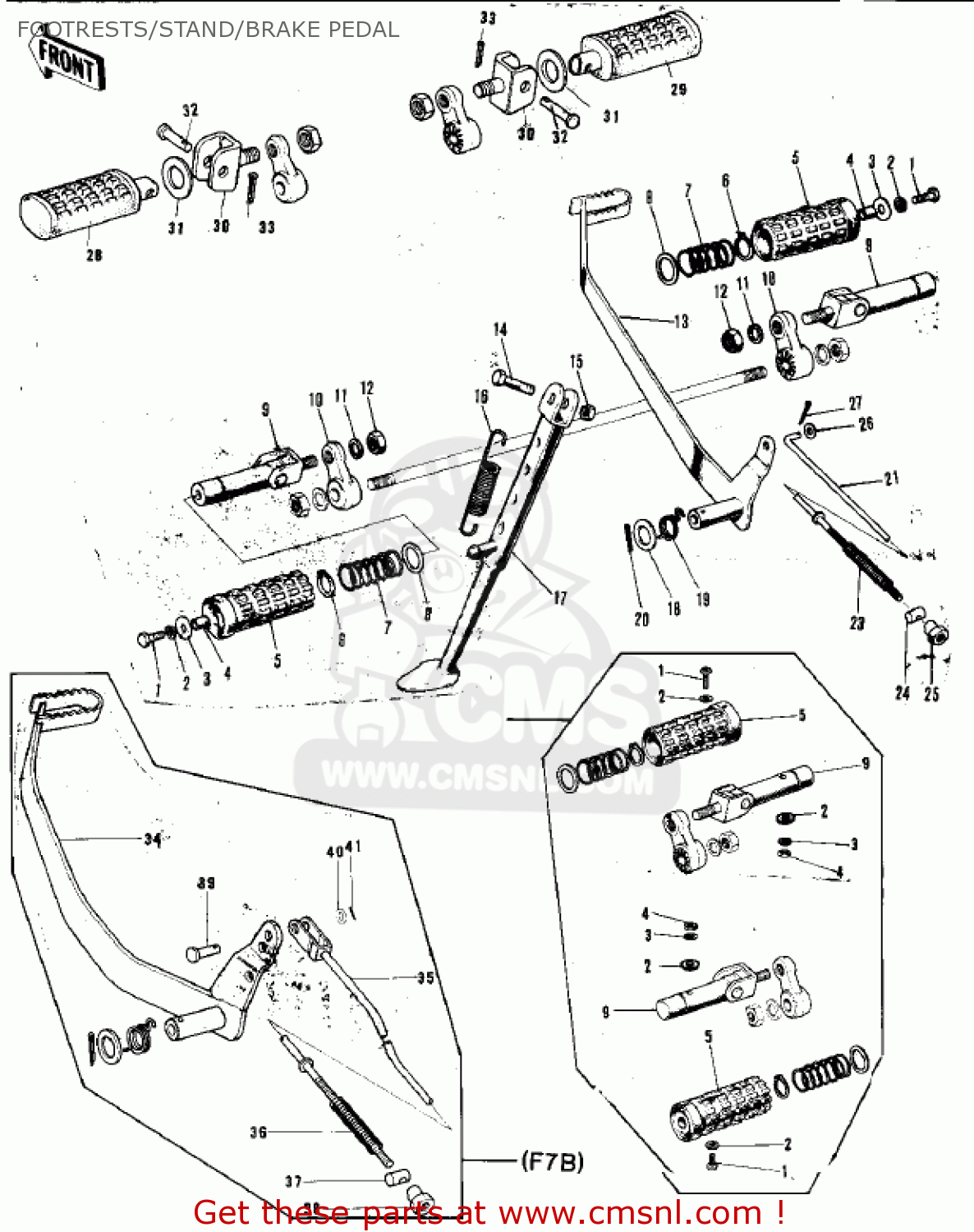

Footrests/stand/brake pedal Schemat F7A 1972 USA

FOOTRESTS/STAND/BRAKE PEDAL F7A 1972 USA
FOOTRESTS/STAND/BRAKE PEDAL F7A 1972 USA
ceny są w EUR
Ref
Część #
opis
Ilość
1
112G0618
Ref: 1
BOLT-UPSET
112G0618
€ 0.50
1
220B0540
Ref: 1
F7A
SCREW-PAN-CROS
220B0540
€ 2.00
2
461F0600
Ref: 2
WASHER-SPRING,6MM
461F0600
€ 0.50
2
410F0500
Ref: 2
F7A
WASHER-PLAIN-SMALL,5M
€ 0.50
3
92022125
Ref: 3
WASHER,6.5X20X1.6
92022125
€ 1.00
3
461F0500
Ref: 3
F7A
WASHER-SPRING,5MM
461F0500
€ 0.50
4
92027103
Ref: 4
COLLAR
92027103
€ 2.50
4
311B0500
Ref: 4
F7A
NUT-HEX
311B0500
€ 0.50
5
92076023
Ref: 5
RUBBER-FOOTREST
92076023
€ 11.00
5
92076023
Ref: 5
F7A
RUBBER-FOOTREST
92076023
€ 11.00
6
480J1600
Ref: 6
CIRCLIP-TYPE-C,16MM
480J1600
€ 2.00
7
34006002
Ref: 7
SPRING-FOOTREST PEG
34006002
€ 3.00
8
92022049
Ref: 8
WASHER-FOLDING PEG
92022049
€ 2.00
?
34002051
Ref: ?
Includes items 9 and
FOOTREST BAR ASSEMBLY
€ 111.00
9
34003030
Ref: 9
D=10
FOOTREST BAR HOLDER,LH
34003030
€ 81.50
9
34003032
Ref: 9
F7A
BAR-FOOTREST
34003032
€ 26.50
9
34002051
Ref: 9
D=12
FOOTREST BAR ASSEMBLY
€ 111.00
10
34007009
Ref: 10
D=12
BRACKET-FOOTREST BAR
34007009
€ 16.00
11
461F1000
Ref: 11
NOT REQUIRED FOR 920
WASHER-SPRING,10MM
461F1000
€ 0.50
12
315B1000
Ref: 12
NUT,10MM
315B1000
€ 0.50
12
92019009
Ref: 12
NUT,LOCK,12MM
92019009
€ 4.50
13
43001035
Ref: 13
PEDAL-BRAKE
43001035
€ 23.00
13
43001046
Ref: 13
F7B
PEDAL-BRAKE
43001046
€ 35.00
14
113G1028
Ref: 14
BOLT,HEX HEAD,10X28
€ 4.50
15
315B1000
Ref: 15
NUT,10MM
315B1000
€ 0.50
16
34023005
Ref: 16
SPRING-MAIN STAND
34023005
€ 6.00
17
34024028
Ref: 17
STAND-SIDE
€ 26.00
18
92022085
Ref: 18
WASHER,15.3X24X1.2
92022085
€ 2.50
19
43005033
Ref: 19
SPRING,BRAKE PEDAL
43005033
€ 4.50
20
550D3030
Ref: 20
PIN-COTTER,3.0X30
550D3030
€ 1.50
16
430105003
Ref: 16
Includes items 21 -
BRAKE ROD ASSY
430105003
€ 14.00
16
43010013
Ref: 16
Includes items 21 -
BRAKE ROD ASSEMBLY
€ 41.00
23
43012001
Ref: 23
SPRING,BRAKE ROD
43012001
€ 3.00
24
92043039
Ref: 24
PIN,BRAKE ROD
92043039
€ 4.00
25
92015042
Ref: 25
NUT-BRAKE ROD ADJUST
92015042
€ 4.00
26
410B0600
Ref: 26
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
27
550D2015
Ref: 27
PIN-COTTER,2.0X15
550D2015
€ 1.00
28
340271114
Ref: 28
STEP-ASSY,FR,LH
€ 22.50
29
340271115
Ref: 29
STEP-ASSY,FR,RH
340271115
€ 22.50
30
3402100110
Ref: 30
HOLDER-FOOT REST,LH
3402100110
€ 14.50
31
92022204
Ref: 31
WASHER-PLAIN
92022204
€ 0.50
32
92043080
Ref: 32
PIN-FOOTREST BAR FIT
92043080
€ 3.50
33
550D2515
Ref: 33
PIN COTTER,295X15
550D2515
€ 0.50
34
43001046
Ref: 34
F7B
PEDAL-BRAKE
43001046
€ 35.00
?
43010013
Ref: ?
Includes items 35 -
BRAKE ROD ASSEMBLY
€ 41.00
36
43012001
Ref: 36
F7B
SPRING,BRAKE ROD
43012001
€ 3.00
37
92043039
Ref: 37
F7B
PIN,BRAKE ROD
92043039
€ 4.00
38
92015042
Ref: 38
F7B
NUT-BRAKE ROD ADJUST
92015042
€ 4.00
39
92043064
Ref: 39
F7B
PIN-BRAKE ROD FITTING
92043064
€ 4.00
40
410B0600
Ref: 40
F7B
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
41
550D2015
Ref: 41
F7B
PIN-COTTER,2.0X15
550D2015
€ 1.00
