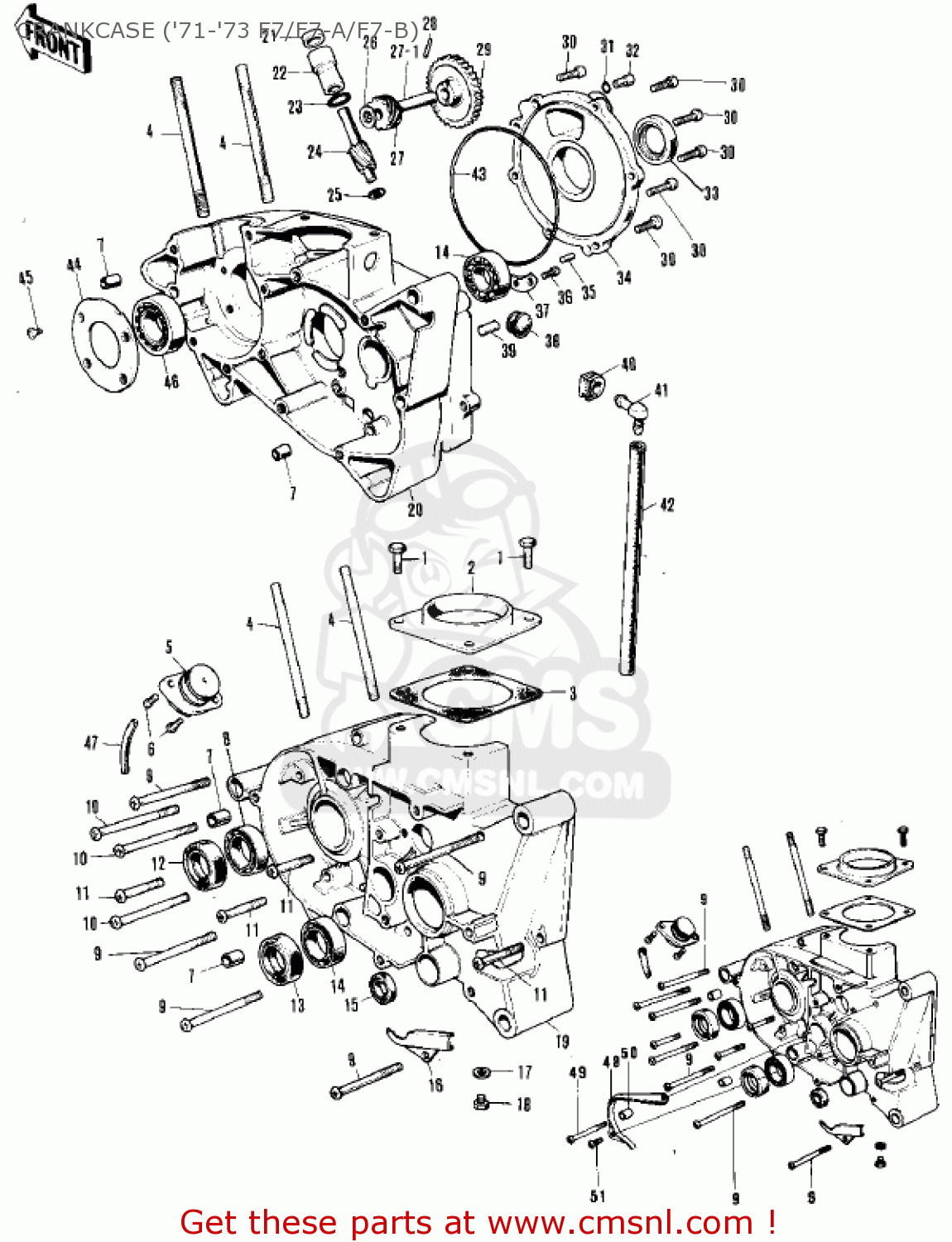

CRANKCASE ('71-'73 F7/F7-A/F7-B)

Ref

Część #

opis

Ilość

1

112G0620
Ref: 1

BOLT 6X20

€ 1.00

2

11015022
Ref: 2

INLET PIPE

€ 6.50

3

11017006
Ref: 3

GASKET-INLET PIPE (NAS)

€ 6.50

4

172G0870
Ref: 4

STUD,8X70

€ 3.50

5

16137002
Ref: 5

PUMP,FUEL DRIN

€ 65.50

5

16137002
Ref: 5
E/NO. 14444

PUMP,FUEL DRIN

€ 65.50

6

220B0616
Ref: 6

SCREW-PAN HEAD,6X16

€ 2.00

7

920431037
Ref: 7

PIN,DOWEL,10X8.2X14

€ 0.50

8

601B6205
Ref: 8

BEARING-BALL,#6205C3

€ 13.00

9

220B0665
Ref: 9

SCREW-PAN HEAD,6X65

€ 2.50

9

220B0665
Ref: 9
F7B

SCREW-PAN HEAD,6X65

€ 2.50

10

220B0655
Ref: 10

SCREW-PAN HEAD,6X55

€ 2.00

11

220B0640
Ref: 11

SCREW-PAN HEAD,6X40

€ 2.00

12

920491250
Ref: 12

SEAL-OIL

€ 11.00

13

92050039
Ref: 13

OIL SEAL SC30426

€ 8.50

14

920451046
Ref: 14

BEARING-BALL,6204C3

€ 20.50

15

92049004
Ref: 15

OIL SEAL SB12205

€ 5.50

16

14076002
Ref: 16

COVER-WIRING HARNESS

€ 2.50

17

92065058
Ref: 17

GASKET, 10,5X16X1 (NAS)

€ 2.50

18

92067001
Ref: 18

PLUG-OIL DRAIN

€ 3.00

19

14002078
Ref: 19

CRANKCASE,L.H

€ 157.00

20

14003046
Ref: 20

CRANKCASE,RH

€ 317.00

21

92054004
Ref: 21

OIL SEAL

€ 13.50

22

92028095
Ref: 22

BUSH-TACHOMETER

€ 5.50

23

92055025
Ref: 23

'O' RING

€ 2.50

24

13223003
Ref: 24

GEAR-TACHOMETER

€ 21.00

25

92026026
Ref: 25

WASHER-THRUST

€ 5.00

26

92026025
Ref: 26

WASHER-THRUST

€ 6.50

27

13224007
Ref: 27

GEAR-TACHOMETER

€ 15.50

27-1

16086002
Ref: 27-1

SHAFT-OIL PUMP GEAR

€ 4.50

28

92042035
Ref: 28

PIN,DOWEL,2.5X12.8

€ 2.50

29

16085016
Ref: 29

GEAR-OIL PUMP

€ 25.50

30

220B0620
Ref: 30

SCREW-PAN HEAD,6X20

€ 2.00

31

92055037
Ref: 31

RING-O,CHECK VALVE

€ 2.50

32

16128006
Ref: 32

VALVE-CHECK

€ 7.00

33

653B324507
Ref: 33

OIL SEAL,TB32457

€ 11.00

34

14019046
Ref: 34

COVER-ROTARY DISC VLV

€ 29.50

35

610A0512
Ref: 35

ROLLER,5X12

€ 3.00

36

220B0612
Ref: 36

SCREW-PAN HEAD,6X12

€ 1.00

37

14014022
Ref: 37

HOLDER-MISSION BERNG

€ 2.00

38

92071038
Ref: 38

GROMMET,PIPE

€ 2.50

39

551A0816
Ref: 39

PIN-DOWEL,8X16

€ 0.50

40

92071042
Ref: 40

GROMMET

€ 2.50

41

140691001
Ref: 41

BREATHER

€ 16.50

42

92059061
Ref: 42

PIPE-BREATHER

€ 3.00

43

92055019
Ref: 43

RING-O,120MM

€ 8.00

44

14014021
Ref: 44

HOLDER-CRANK BEARING

€ 2.00

45

221B0616
Ref: 45

SCREW-CNTSNK HD,6X16

€ 0.50

46

601B6305
Ref: 46

BEARING-BALL,#6305C3

€ 28.00

47

92059031
Ref: 47

PIPE-FUEL OVERFLOW

€ 1.50

48

14077002
Ref: 48
F7B

GUIDE-CHAIN

€ 7.00

49

220B0685
Ref: 49
F7B

SCREW-PAN HEAD,6X85

€ 3.50

50

92027169
Ref: 50
F7B

COLLAR,6.8X10X16

€ 3.50

51

220B0612
Ref: 51
F7B

SCREW-PAN HEAD,6X12

€ 1.00

CRANKCASE ('71-'73 F7/F7-A/F7-B)
