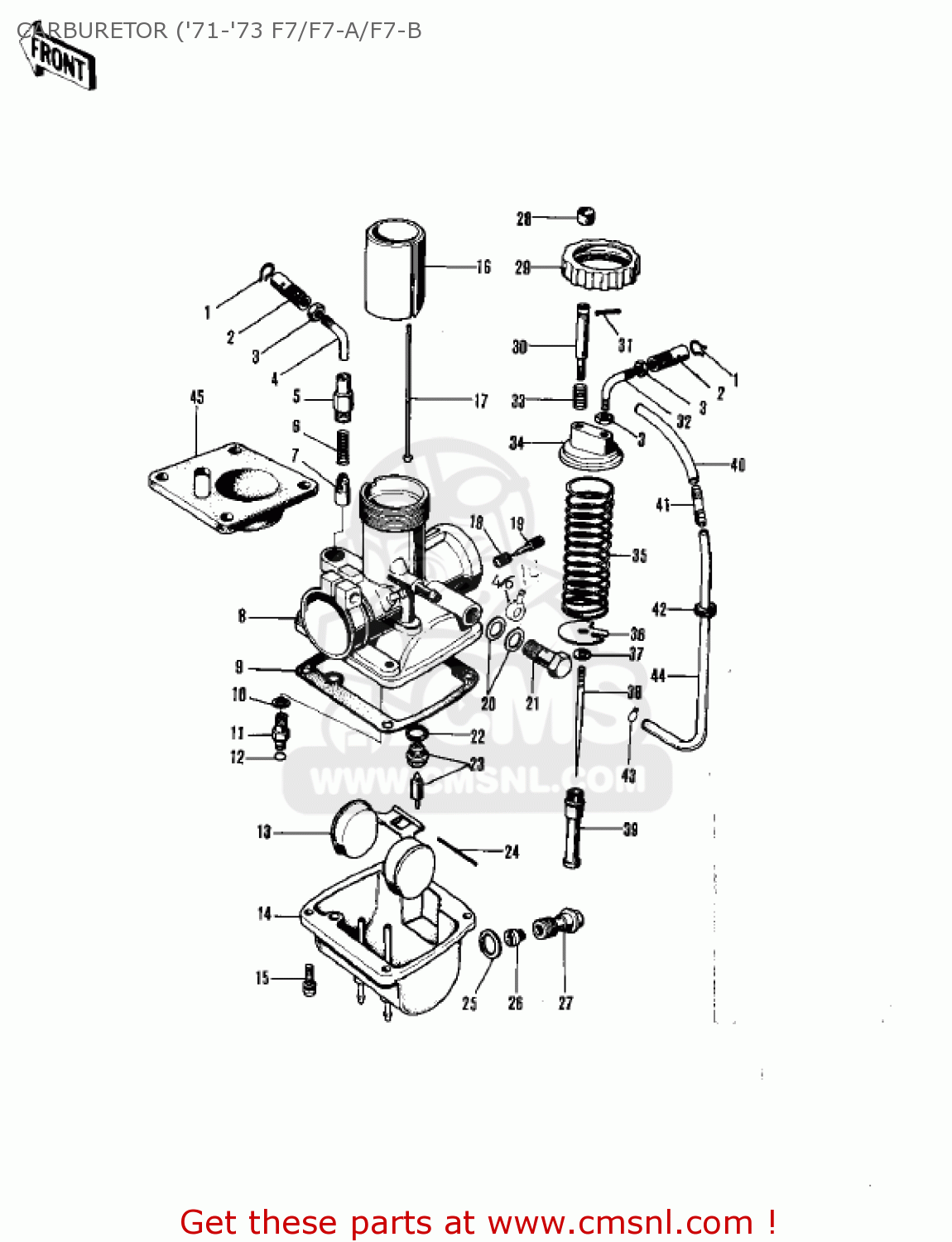

CARBURETOR ('71-'73 F7/F7-A/F7-B

Ref

Część #

opis

Ilość

1

92036018
Ref: 1

CIRCLIP

€ 2.50

2

16002007
Ref: 2

ADJUSTER-CABLE,THROTT

€ 7.00

?

16001211
Ref: ?
Includes items 3 - 3

CARBURETOR ASSEMBLY

€ 576.00

3

16003004
Ref: 3

NUT-CABLE ADJUST LOCK

€ 4.00

4

16077005
Ref: 4

CABLE GUIDE

€ 3.50

5

16012014
Ref: 5

CAP-STARTER PLUNGER

€ 3.00

6

16013003
Ref: 6

SPRING-STARTER PLUNG

€ 3.50

7

16016002
Ref: 7

PLUNGER,STARTER

€ 19.00

9

16019013
Ref: 9

GASKET-FLOAT CHAMBER (NAS)

€ 15.50

10

16034001
Ref: 10

WASHER-MAIN JET

€ 2.50

11

16065008
Ref: 11

HOLDER,JET NEEDLE

€ 11.00

12

92055044
Ref: 12

'O' RING

€ 6.50

13

16031016
Ref: 13

FLOAT

€ 81.50

15

16033009
Ref: 15

SCREW-FLOAT CHAMBER

€ 0.50

16

16025069
Ref: 16
CA 2.5

VALVE,THROTTLE CA2.5

€ 42.50

17

16024009
Ref: 17

ROD-THROTTLE VLV STOP

€ 4.00

18

16022007
Ref: 18

SPRING-THR STOP SCREW

€ 5.00

19

16014002
Ref: 19

SCREW-PILOT AIR

€ 11.00

20

92065078
Ref: 20

GASKET-BANJO BOLT (NAS)

€ 1.00

20

751P0800
Ref: 20

GASKET,8MM

€ 1.00

21

92001014
Ref: 21

BOLT-BANJO

€ 11.50

22

16029004
Ref: 22

WASHER-FLOAT VLV SEAT

€ 2.50

23

16030005
Ref: 23
#2.5

VALVE-FLOAT,2.5

€ 40.00

23

16030025
Ref: 23
#2.0

VALVE-FLOAT,#2.6

€ 76.50

24

16032003
Ref: 24

FLOAT PIN

€ 4.00

25

16034005
Ref: 25
ASBESTOS

WASHER,BANJO BOLT (MCA)

€ 3.00

26

920631042
Ref: 26
S.T.D.

JET-MAIN,#A105R

€ 9.50

26

92063073
Ref: 26
OPTION

JET-MAIN,#107.5R

€ 9.00

26

920631038
Ref: 26
OPTION

JET-MAIN,#A110

€ 10.00

26

920631028
Ref: 26
OPTION

JET-MAIN,#A102.5R

€ 9.50

26

920631033
Ref: 26
OPTION

JET-MAIN,#A100R

€ 16.00

27

92001097
Ref: 27

BOLT-BANJO

€ 14.50

28

16037002
Ref: 28

CAP,PILOT SCREW

€ 4.50

29

16004011
Ref: 29

CAP-MIXING CHAMBER

€ 5.50

30

16021010
Ref: 30

SCREW-THROTTLE STOP

€ 11.00

31

550D1210
Ref: 31

PIN-COTTER,1.2X10

€ 1.50

32

16077001
Ref: 32

GUIDE,CABLE

€ 6.00

33

16022008
Ref: 33

SPRING-THR STOP SCREW

€ 1.50

34

16005020
Ref: 34

TOP-MIXING CHAMBER

€ 6.00

35

16006014
Ref: 35

SPRING-THROTTLE VALVE

€ 9.50

36

16007024
Ref: 36

SPRING SEAT,THRTL VL

€ 5.00

37

16008010
Ref: 37

CLAMP,E-TYPE

€ 5.00

38

16009040
Ref: 38
4EJ3

NEEDLE-JET,4EJ3

€ 26.50

39

16017048
Ref: 39
0-2

JET,NEEDLE,#0-2

€ 70.50

40

92059002
Ref: 40

PIPE-OIL TANK

€ 20.50

41

92005003
Ref: 41

NIPPLE

€ 2.00

42

92071038
Ref: 42

GROMMET,PIPE

€ 2.50

43

92037010
Ref: 43

CLAMP-FUEL PIPE

€ 2.50

44

92059065
Ref: 44

PIPE

€ 20.50

45

14038027
Ref: 45

CAP-CARBURETOR

€ 6.00

46

92061019
Ref: 46

CONNECTOR,BANJO

€ 9.00

CARBURETOR ('71-'73 F7/F7-A/F7-B

wszystkie zespoły
