i prezzi sono in EUR

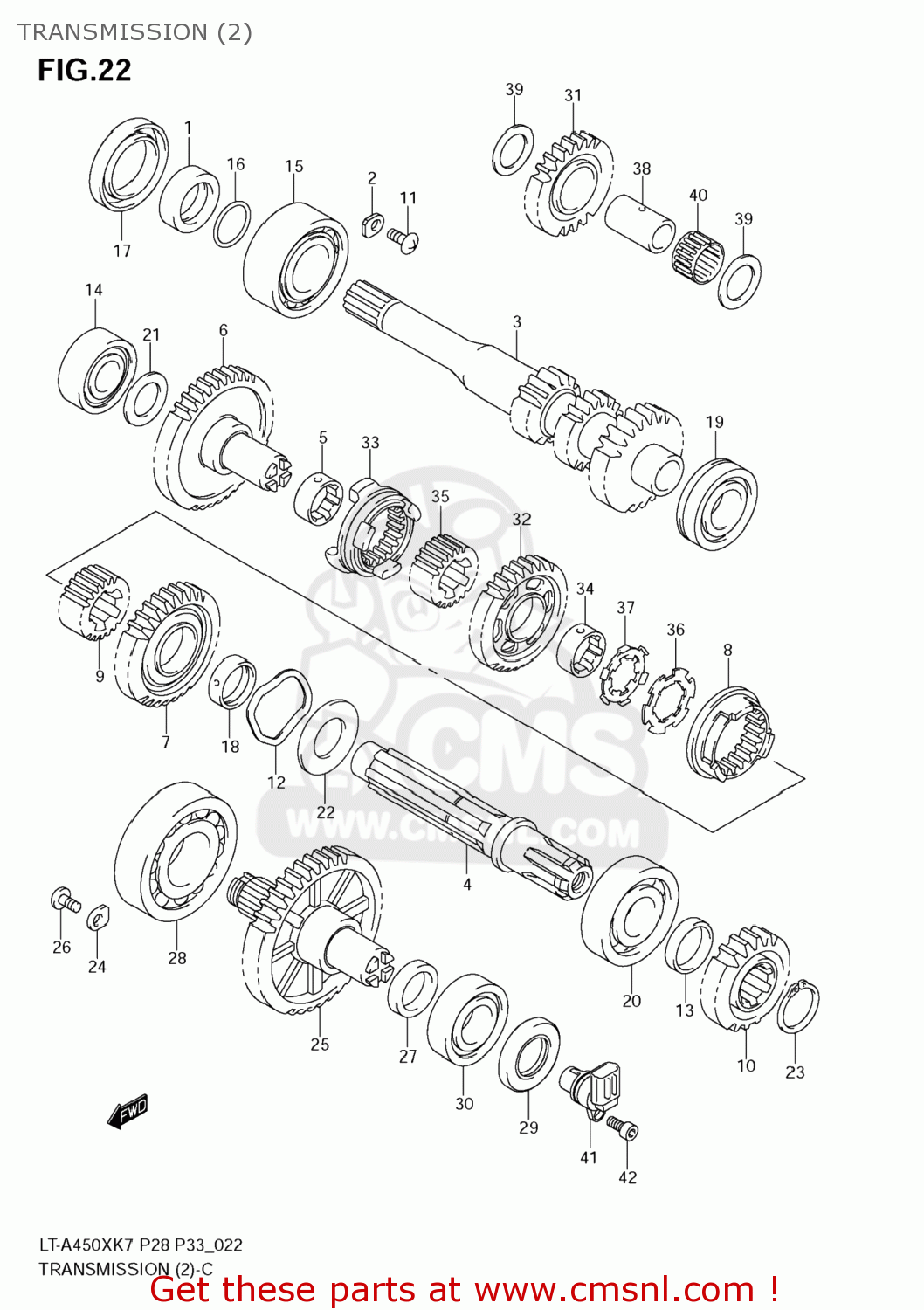

rif
parte #
descrizione
quantità
1
SPACER,PRIMARY SHAFT
2
RETAINER
3
SHAFT,DRIVE
5
BUSH,3RD DRIVEN GEAR
6
GEAR,SUB T/M DRIVEN LOW
7
GEAR,SUB T/M DRIVEN HIGH
9
SPACER,REVERSE SELECT SLIDING
10
GEAR,SUB T/M DRIVE NO.2
11
BOLT(6X12)
12
WASHER
14
BEARING(20X47X14)
16
O RING(D:2.4,ID:24.7)
17
SEAL,OIL(38X56X7)
18
BUSH
19
BEARING(25X52X15)
20
BEARING(25X62X17)
21
WASHER
24
RETAINER
26
BOLT(6X12)
27
SPACER(25X34X5.5)
28
BEARING(30X72X19)
29
SEAL,OIL(25X45X5)
30
BEARING(25X52X15)
31-1
GEAR,REVERSE IDLE(NT:23)
31-2
GEAR,REVERSE IDLE
33
DOG,SUB T/M SELECT SLIDING
34
BUSH,3RD DRIVEN GEAR
35
SPACER,REVERSE SELECT SLIDING
36
WASHER,LOCK
37
WASHER
38
SHAFT,REVERSE IDLE GEAR
39
SHIM(20X30X1)
40
BEARING(20X24X13)
42
BOLT
