REAR BOX

LT-A450X KING QUAD 2008 (K8) USA (E03) KINGQUAD KING-QUAD

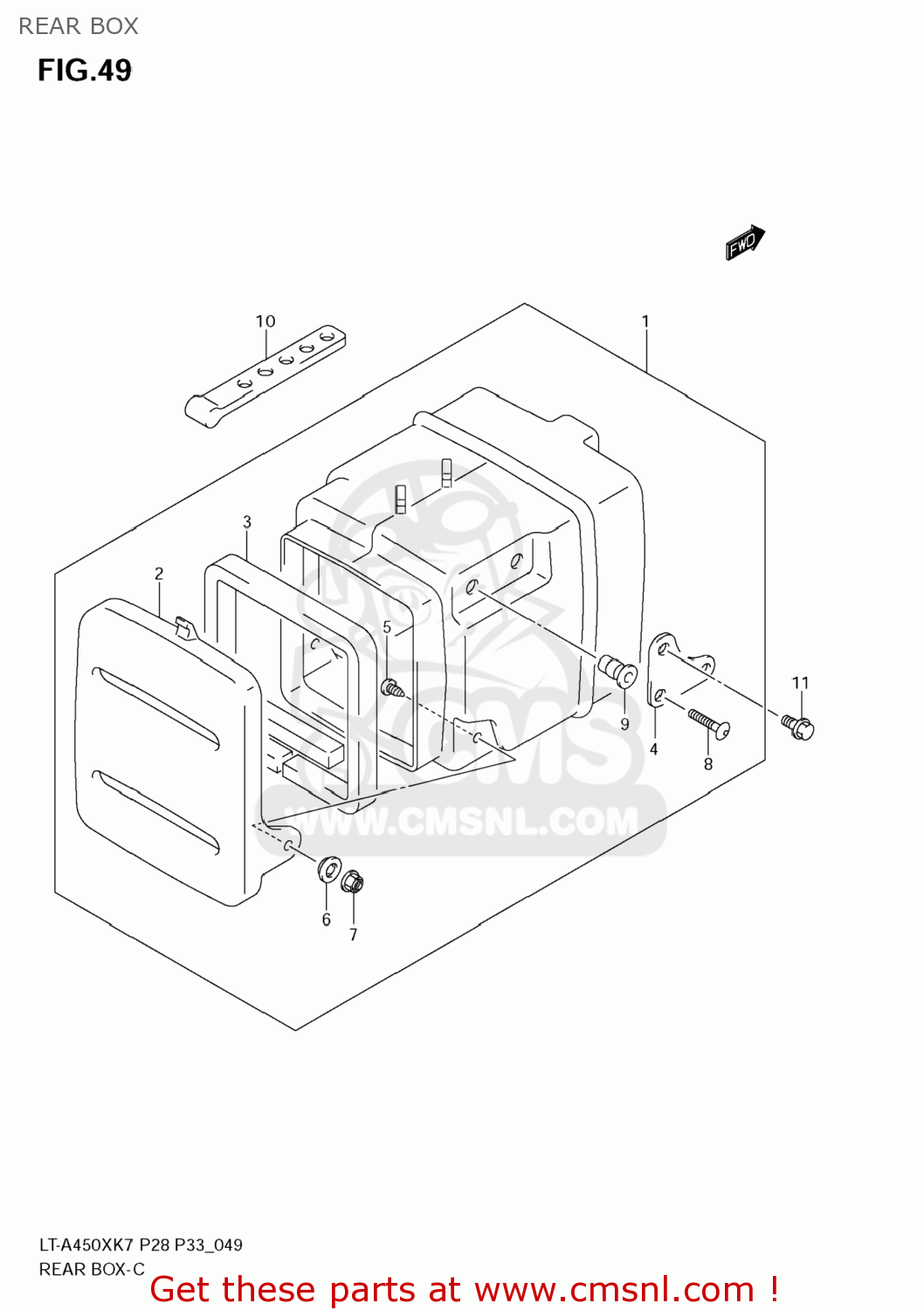

Rear box diagramma LT-A450X KING QUAD 2008 (K8) USA (E03) KINGQUAD KING-QUAD

i prezzi sono in EUR

rif

parte #

descrizione

quantità

9310031G00
rif: 1

BOX ASSY,RR

€ 237.00

9311231G00
rif: 2

LID,RR BOX

€ 48.00

9311431G00
rif: 3

CUSHION,RR BOX

€ 18.00

9311331G00
rif: 4

BRACKET,RR BOX

€ 5.50

021420616B
rif: 5

SCREW

€ 1.50

0916906045
rif: 6
09169-06055

WASHER

€ 2.00

083193106A
rif: 7

NUT

€ 2.00

021420520B
rif: 8

SCREW

€ 1.50

0915905019
rif: 9

NUT

€ 5.00

9319109F20
rif: 10

BAND,RR BOX

€ 4.00

015500610B
rif: 11

BOLT

€ 2.00
