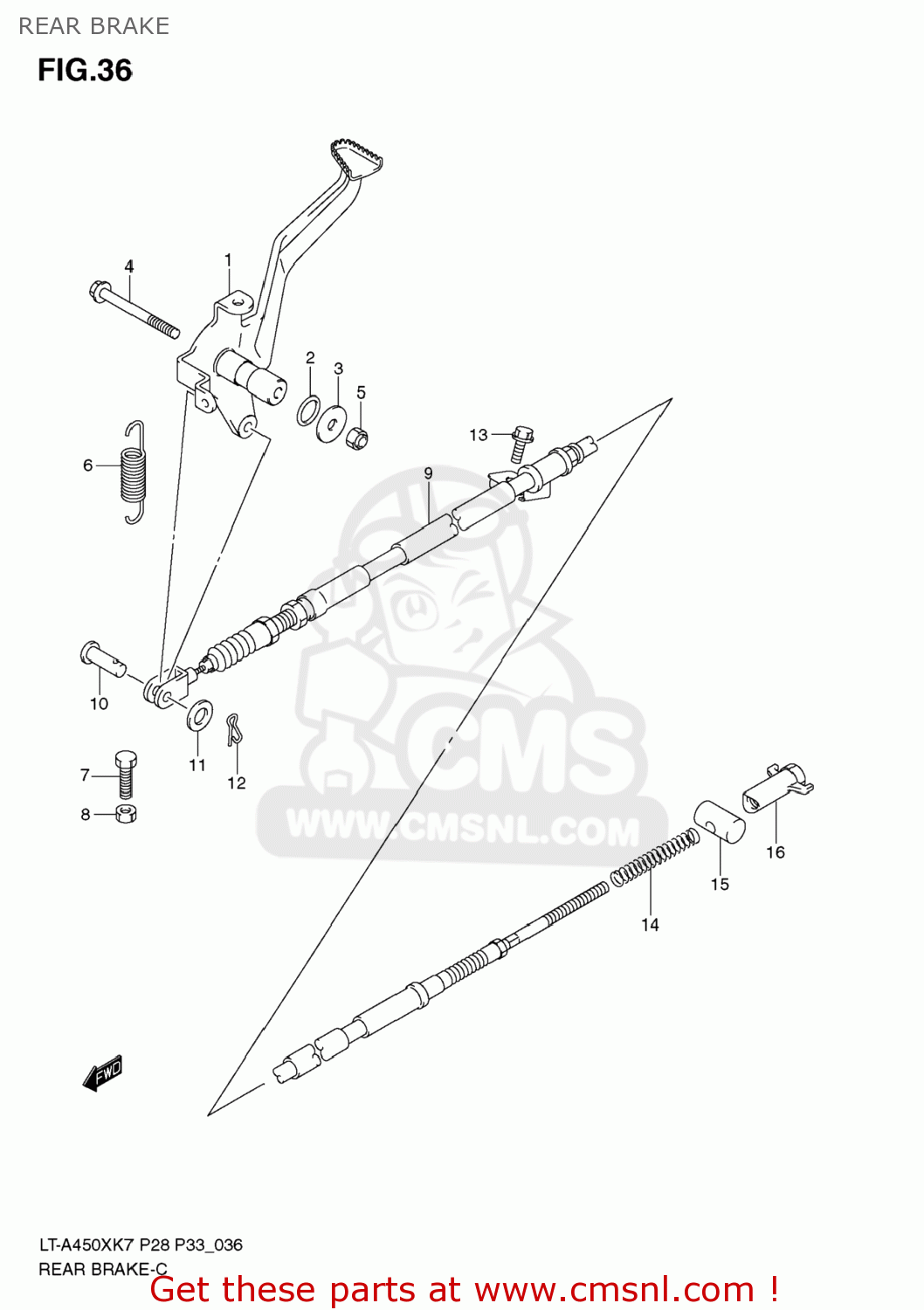

REAR BRAKE

LT-A450X KING QUAD 2008 (K8) USA (E03) KINGQUAD KING-QUAD

Rear brake diagramma LT-A450X KING QUAD 2008 (K8) USA (E03) KINGQUAD KING-QUAD

i prezzi sono in EUR

rif

parte #

descrizione

quantità

4311031G00
rif: 1

PEDAL,BRAKE

€ 297.50

0928014011
rif: 2

O RING(D:2.5,ID:13.8)

€ 3.50

0916006138
rif: 3

WASHER(6.5X22X2.3)

€ 2.50

0910306195
rif: 4

BOLT(6X65)

€ 3.50

083192106A
rif: 5

NUT

€ 1.50

0944312019
rif: 6

SPRING

€ 5.50

015000620A
rif: 7

BOLT

€ 1.50

083100006A
rif: 8

NUT

€ 1.50

5851031G00
rif: 9

CABLE,RR BRAKE

€ 46.50

0920005001
rif: 10

PIN(L:17.5)

€ 1.50

083220106B
rif: 11

WASHER

€ 1.50

0938506012
rif: 12

CLIP

€ 1.50

015470616A
rif: 13

BOLT

€ 1.50

0944008042
rif: 14

SPRING

€ 2.00

0920913006
rif: 15

PIN

€ 6.00

0915006015
rif: 16

NUT

€ 2.50
