REAR COMBINATION LAMP

LT-A450X KING QUAD 2008 (K8) USA (E03) KINGQUAD KING-QUAD

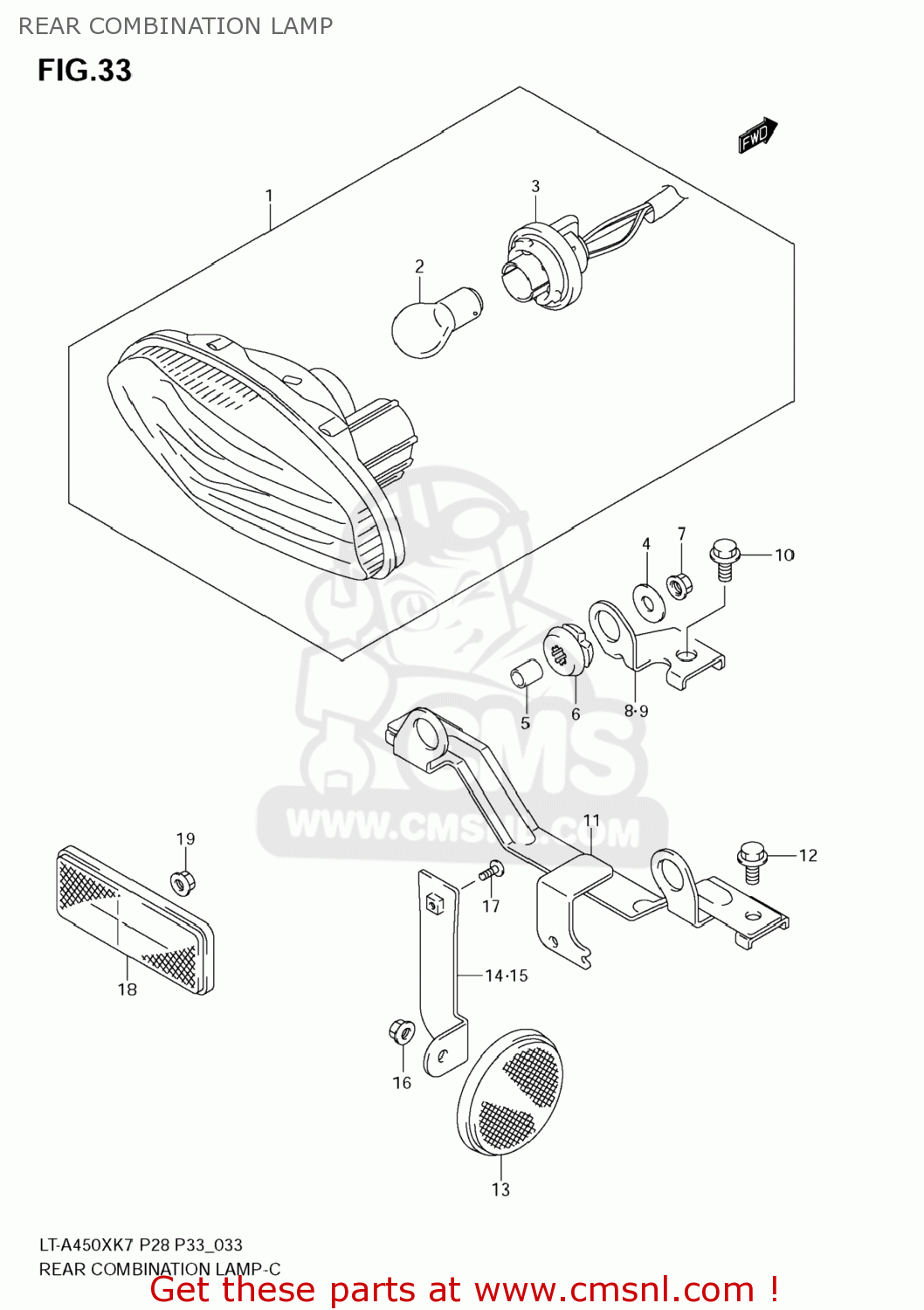

Rear combination lamp diagramma LT-A450X KING QUAD 2008 (K8) USA (E03) KINGQUAD KING-QUAD

REAR COMBINATION LAMP LT-A450X KING QUAD 2008 (K8) USA (E03) KINGQUAD KING-QUAD
REAR COMBINATION LAMP LT-A450X KING QUAD 2008 (K8) USA (E03) KINGQUAD KING-QUAD
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
3571031G00
rif: 1
LAMP ASSY,RR COMBINATION
3571031G00
€ 40.00
2
0947112128
rif: 2
BULB(12V21/5W,BF141-49642A)
0947112128
€ 5.50
3
3571803G30
rif: 3
SOCKET & BULB
3571803G30
€ 25.50
4
0916006077
rif: 4
WASHER(6.5X20X1.2)
0916006077
€ 1.50
5
0918006264
rif: 5
SPACER(6.5X9X10.5)
0918006264
€ 2.00
6
0932009018
rif: 6
CUSHION
0932009018
€ 2.00
7
083161006B
rif: 7
NUT
083161006B
€ 2.00
8
3572631G40
rif: 8
BRACKET,RR LAMP,R
€ 5.50
9
3572631G50
rif: 9
BRACKET,RR LAMP,L
€ 5.50
10
015500612A
rif: 10
BOLT
015500612A
€ 1.50
11
3572631G10
rif: 11
BRACKET,RR COMBINATION LAMP
€ 12.00
12
015500612A
rif: 12
BOLT
015500612A
€ 1.50
13
3597014A20
rif: 13
REFLECTOR ASSY,RR SIDE
3597014A20
€ 11.00
14
3597531G00
rif: 14
BRACKET,RR SIDE RR,R
€ 4.50
15
3597631G00
rif: 15
BRACKET,RR SIDE RR,L
€ 4.50
16
083161005B
rif: 16
NUT
083161005B
€ 2.50
17
0912505073
rif: 17
SCREW(5X8)
0912505073
€ 1.00
18
3597007F01
rif: 18
REFLECTOR ASSY,RR
3597007F01
€ 15.00
19
083161005B
rif: 19
NUT
083161005B
€ 2.50
