FUEL PUMP

LT-A450X KING QUAD 2008 (K8) USA (E03) KINGQUAD KING-QUAD

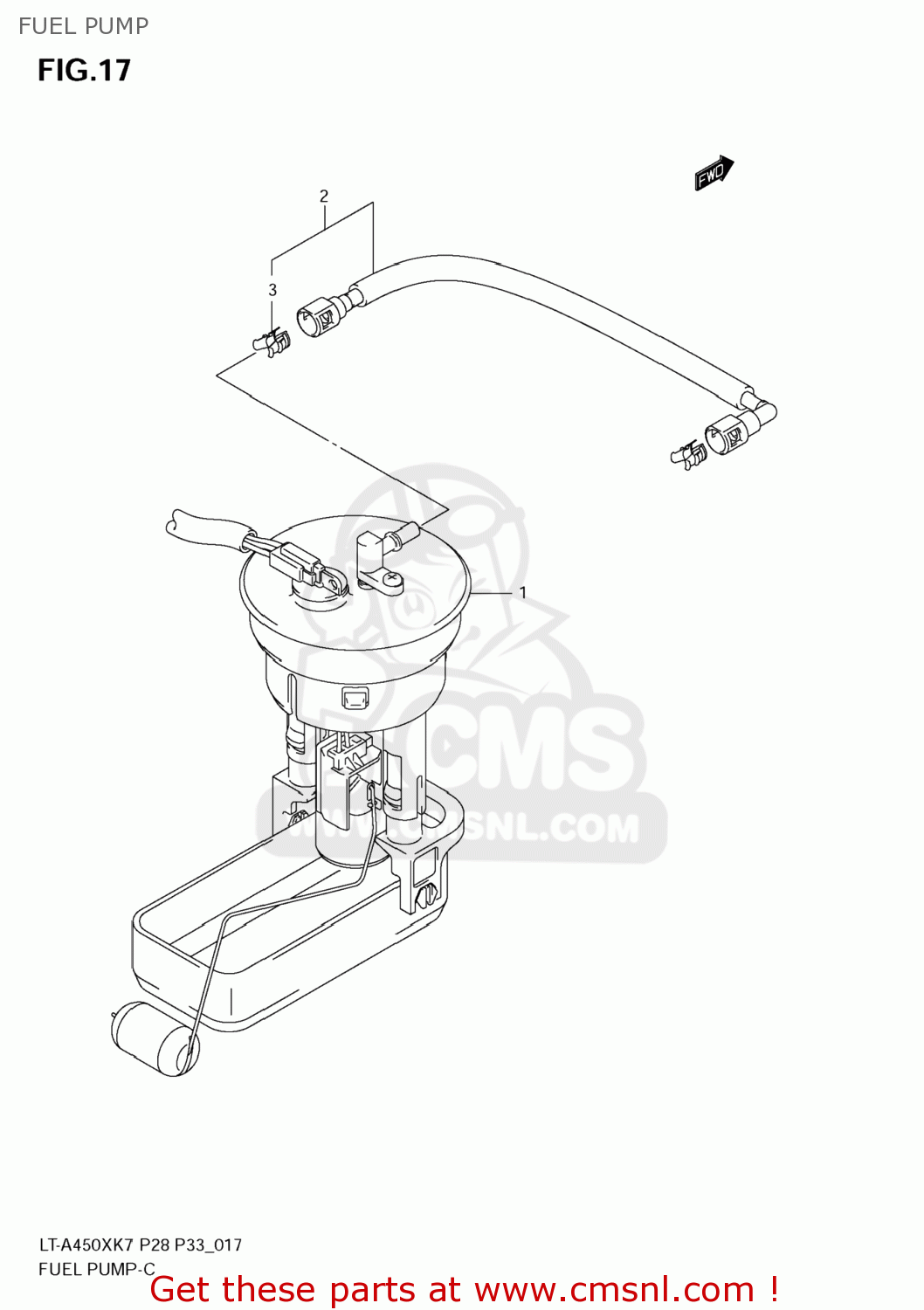

Fuel pump diagramma LT-A450X KING QUAD 2008 (K8) USA (E03) KINGQUAD KING-QUAD

FUEL PUMP LT-A450X KING QUAD 2008 (K8) USA (E03) KINGQUAD KING-QUAD

i prezzi sono in EUR

rif

parte #

descrizione

quantità

1-1

1510031G01
rif: 1-1
15100-31G02

PUMP ASSY,FUEL

€ 588.50

1-2

1510031G20
rif: 1-2
15100-31G21

PUMP ASSY,FUEL

€ 436.00

2

1581031G00
rif: 2
15810-31G01

HOSE COMP,FUEL

€ 29.00

3

1581535F00
rif: 3

RETAINER

€ 5.50
