SEAT

GN125 1983 (D) (E01 E04 E18)

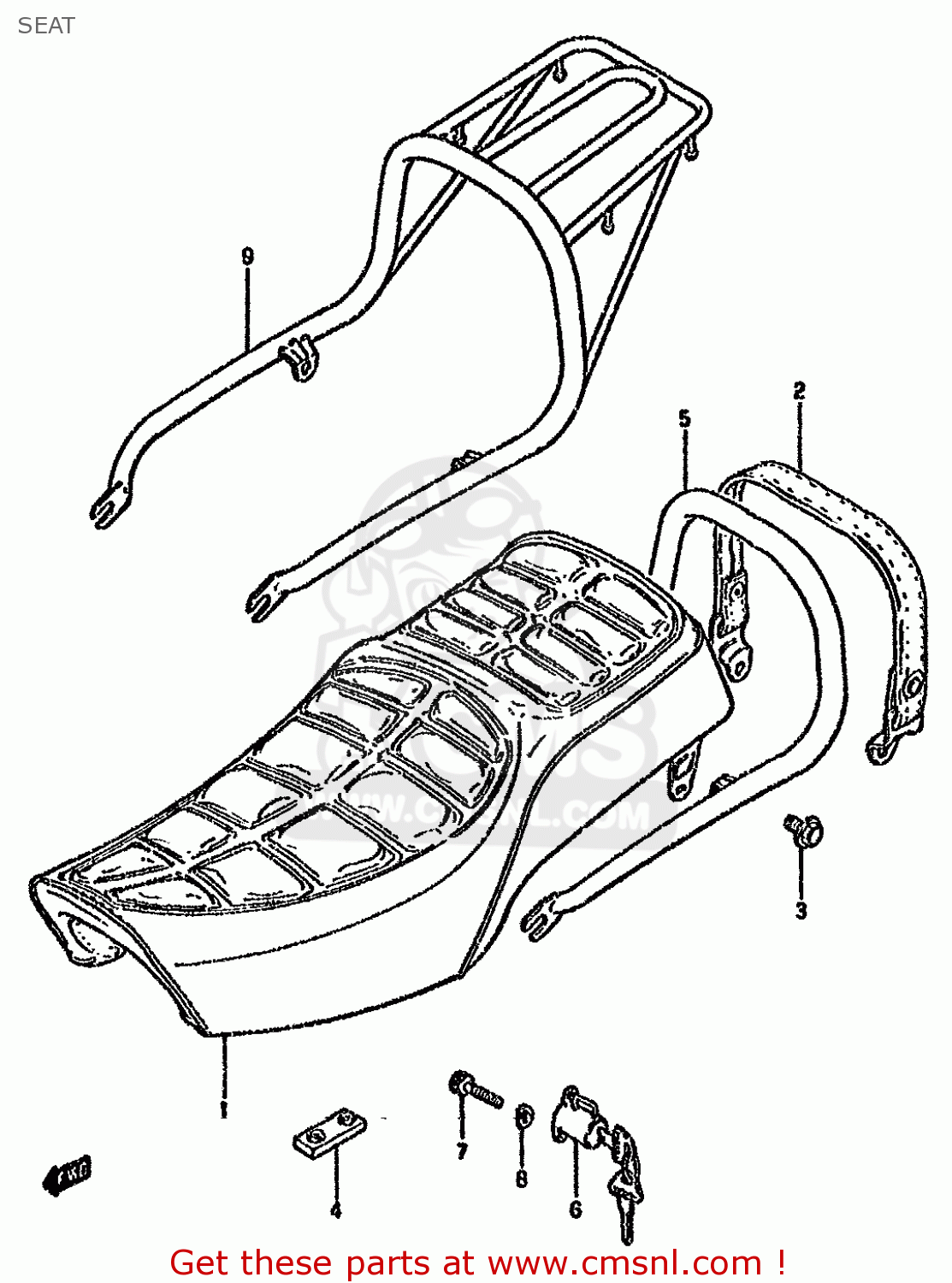

Seat schéma GN125 1983 (D) (E01 E04 E18)

les prix sont en EUR

ref

pièce #

description

quantité

1-1

451000531047U
ref: 1-1
MODEL Z

SEAT ASSEMBLY

€ 287.00

1-2

451000532148H
ref: 1-2
MODEL D/K/M/N/R-4510

SEAT ASSY

€ 287.00

2-1

451800530047U
ref: 2-1
MODEL Z E1,E2,E4,E21

BAND,SEAT

€ 25.00

2-2

451800532048H
ref: 2-2
MODEL D/K/M/N/R E1,E

BAND ASSY,SEAT GRIP

€ 25.00

3-1

0151708165
ref: 3-1
MODEL Z/D/K/M/N

BOLT, LOWER

€ 2.00

3-2

0155008163
ref: 3-2
MODEL R

BOLT

€ 2.00

0932108009
ref: 4

CUSHION

€ 3.50

4621005300
ref: 5

HANDLE,PILLION RIDER

€ 655.50

6-1

9570037400KEY
ref: 6-1
MODEL Z/D/K

LOCK SET,HELMET

€ 36.00

6-2

9570037810
ref: 6-2
MODEL M/N/R

LOCK SET,HELMET

€ 36.00

7-1

0910606024
ref: 7-1
MODEL Z/D/K/M/N

BOLT 6X11

€ 2.50

7-2

0913906069
ref: 7-2
MODEL R

SCREW

€ 2.50

0832121067
ref: 8

WASHER,LOCK

€ 1.50

4631005300
ref: 9
OPT

CARRIER

€ 161.50
