CYLINDER

GN125 1983 (D) (E01 E04 E18)

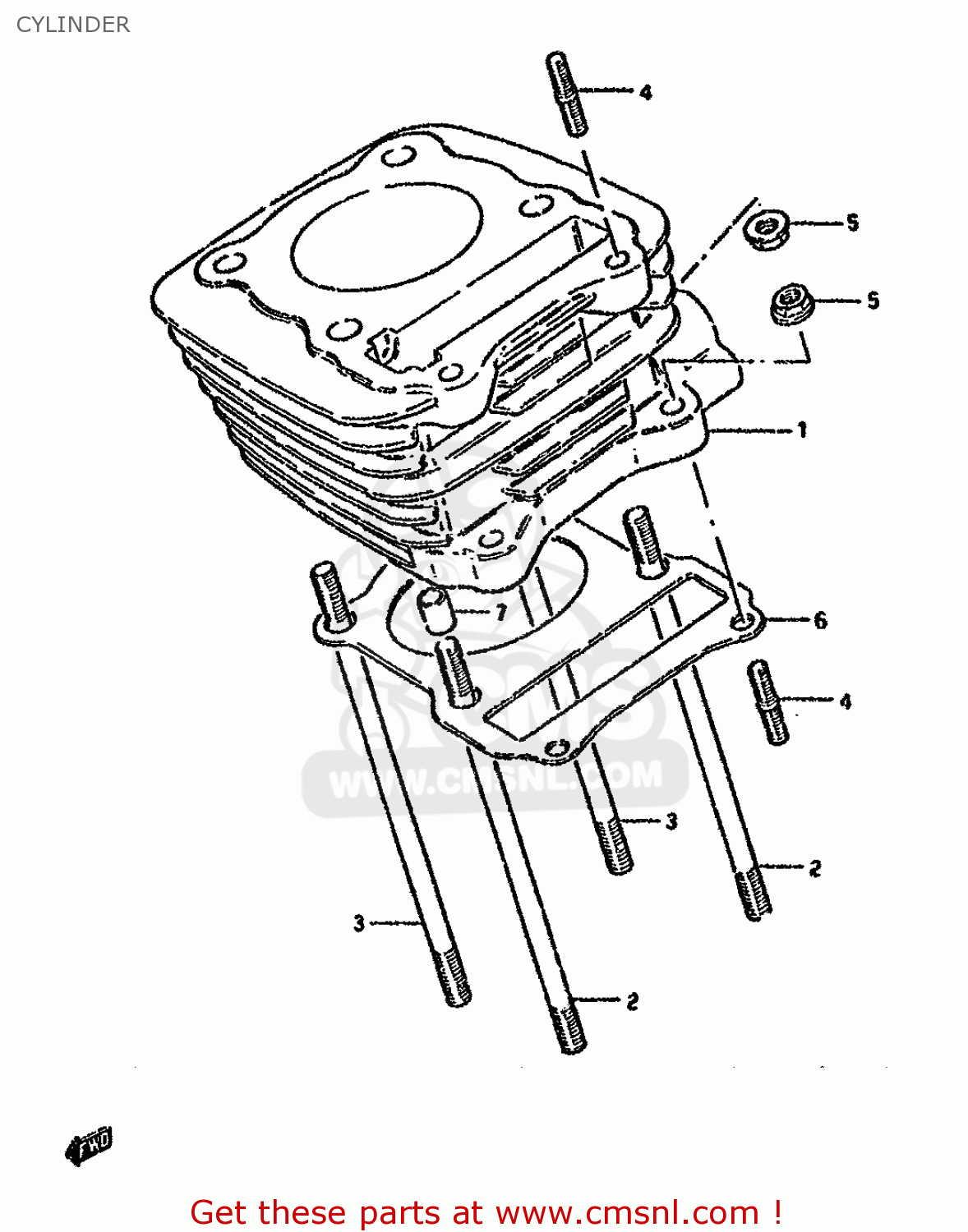

Cylinder schéma GN125 1983 (D) (E01 E04 E18)

les prix sont en EUR

ref

pièce #

description

quantité

1121005202
ref: 1

CYLINDER

€ 237.50

0910808062
ref: 2

BOLT,STUD

€ 4.00

0910808089
ref: 3

BOLT,STUD

€ 6.00

0142106257
ref: 4

BOLT,STUD

€ 2.50

5-1

0915906017
ref: 5-1
MODEL Z/D/K/M/N

NUT

€ 1.50

5-2

0831610067
ref: 5-2
MODEL R

NUT

€ 2.00

6-1

1124105200
ref: 6-1
MODEL Z/D/K

GASKET,CYLINDER (MCA)

€ 4.50

6-2

1124105311
ref: 6-2
MODEL M/N/R-11241-05

GASKET,CYLINDER (NAS)

€ 4.50

7-1

0421111169
ref: 7-1

PIN

€ 1.50

7-2

0421111149
ref: 7-2

PIN

€ 1.50
