FOOTREST

GN125 1983 (D) (E01 E04 E18)

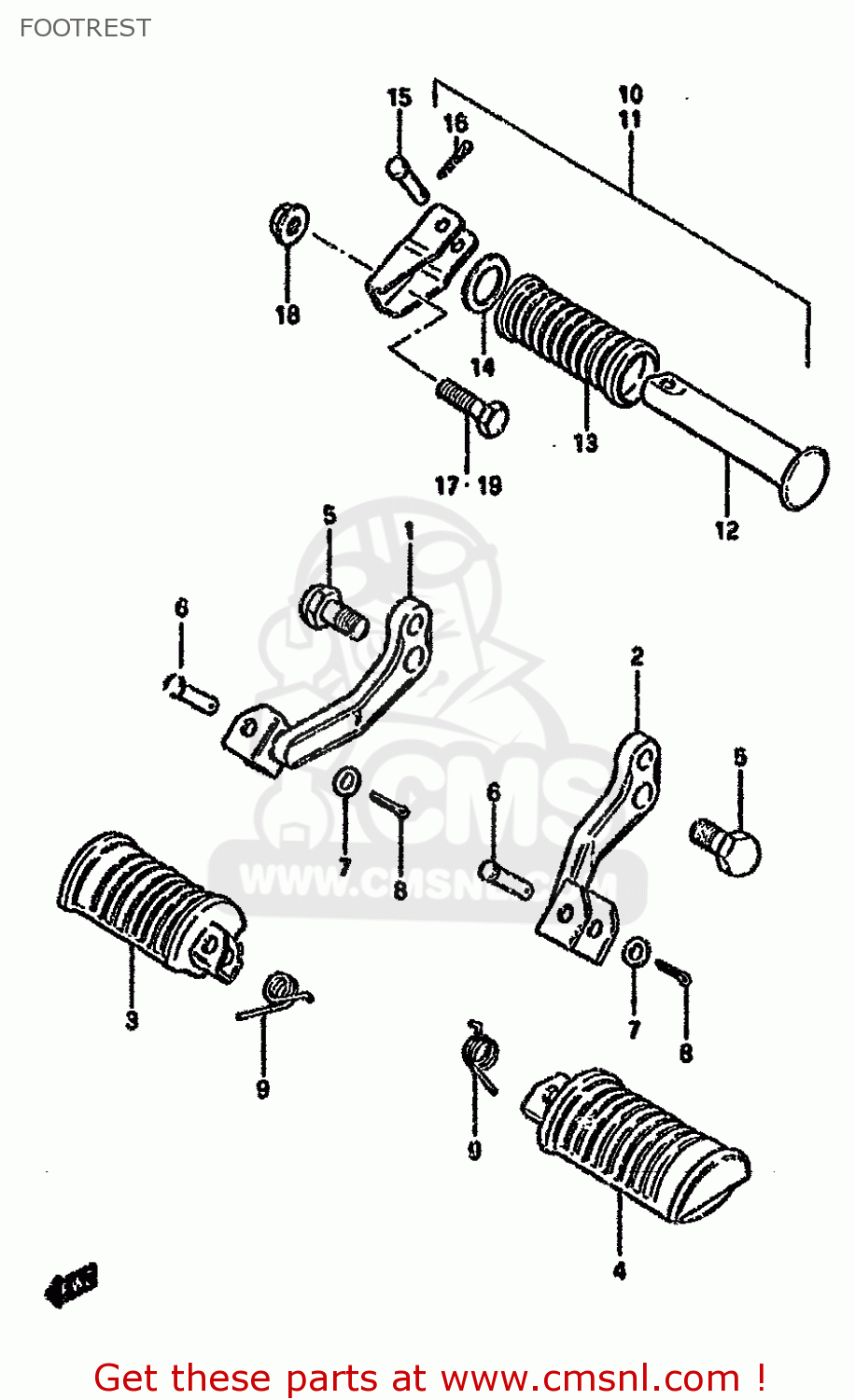

Footrest schéma GN125 1983 (D) (E01 E04 E18)

FOOTREST GN125 1983 (D) (E01 E04 E18)
FOOTREST GN125 1983 (D) (E01 E04 E18)
les prix sont en EUR
ref
pièce #
description
quantité
1
4351005330
ref: 1
HOLDER,FR FOOTREST,R
4351005330
€ 51.00
2
4352005330
ref: 2
HOLDER,FR FOOTREST,L
4352005330
€ 51.00
3
4355037301
ref: 3
RUBBER,PILLION FOOTREST,R
4355037301
€ 22.50
4
4356037301
ref: 4
RUBBER,PILLION FOOTREST,L
4356037301
€ 22.50
5
0155012257
ref: 5
BOLT
0155012257
€ 2.50
6
0920008002
ref: 6
PIN
0920008002
€ 1.50
7
0832211088
ref: 7
MODEL Z/D/K/M/N
WASHER
0832211088
€ 1.50
8
0411120208
ref: 8
PIN 20X20
0411120208
€ 1.00
9
0944814012
ref: 9
SPRING
0944814012
€ 3.00
10-1
4360005301
ref: 10-1
MODEL Z/R
FOOTREST ASSY,PILLION,R
4360005301
€ 29.50
10-2
4360005310
ref: 10-2
MODEL D/K/M/N
FOOTREST ASSEMBLY,REAR,RIGHT
4360005310
€ 44.00
11-1
4370005301
ref: 11-1
MODEL Z/R
FOOTREST ASSY,PILLION,L
4370005301
€ 29.50
11-2
4370005310
ref: 11-2
MODEL D/K/M/N
FOOTREST ASSY,PILLION,L
4370005310
€ 44.00
12-1
4361003001
ref: 12-1
MODEL Z/R
BAR,FOOTREST RUBBER
4361003001
€ 8.00
12-2
4361038300
ref: 12-2
MODEL D/K/M/N
BAR,PILLION FOOTREST
4361038300
€ 26.50
13
4361233200
ref: 13
RUBBER,PILLION FOOTREST
4361233200
€ 4.50
14
0916019006
ref: 14
WASHER (19.5X32X2)
0916019006
€ 2.00
15
0920006033
ref: 15
PIN
0920006033
€ 2.00
16-1
0411120208
ref: 16-1
MODEL Z/R
PIN 20X20
0411120208
€ 1.00
16-2
0411120158
ref: 16-2
MODEL D/K/M/N
PIN
0411120158
€ 1.00
17-1
0151710458
ref: 17-1
MODEL Z/D/K/M/N
BOLT 10X45
€ 3.00
17-2
0155010453
ref: 17-2
MODEL R
BOLT
0155010453
€ 3.00
18-1
0831616108
ref: 18-1
MODEL Z/D/K/M/N
NUT
0831616108
€ 2.00
18-2
0831610103
ref: 18-2
MODEL R
NUT
0831610103
€ 2.00
19-1
0151710257
ref: 19-1
MODEL Z/D/K/M/N
BOLT
0151710257
€ 3.00
19-2
0155010253
ref: 19-2
MODEL R
BOLT
0155010253
€ 3.00
