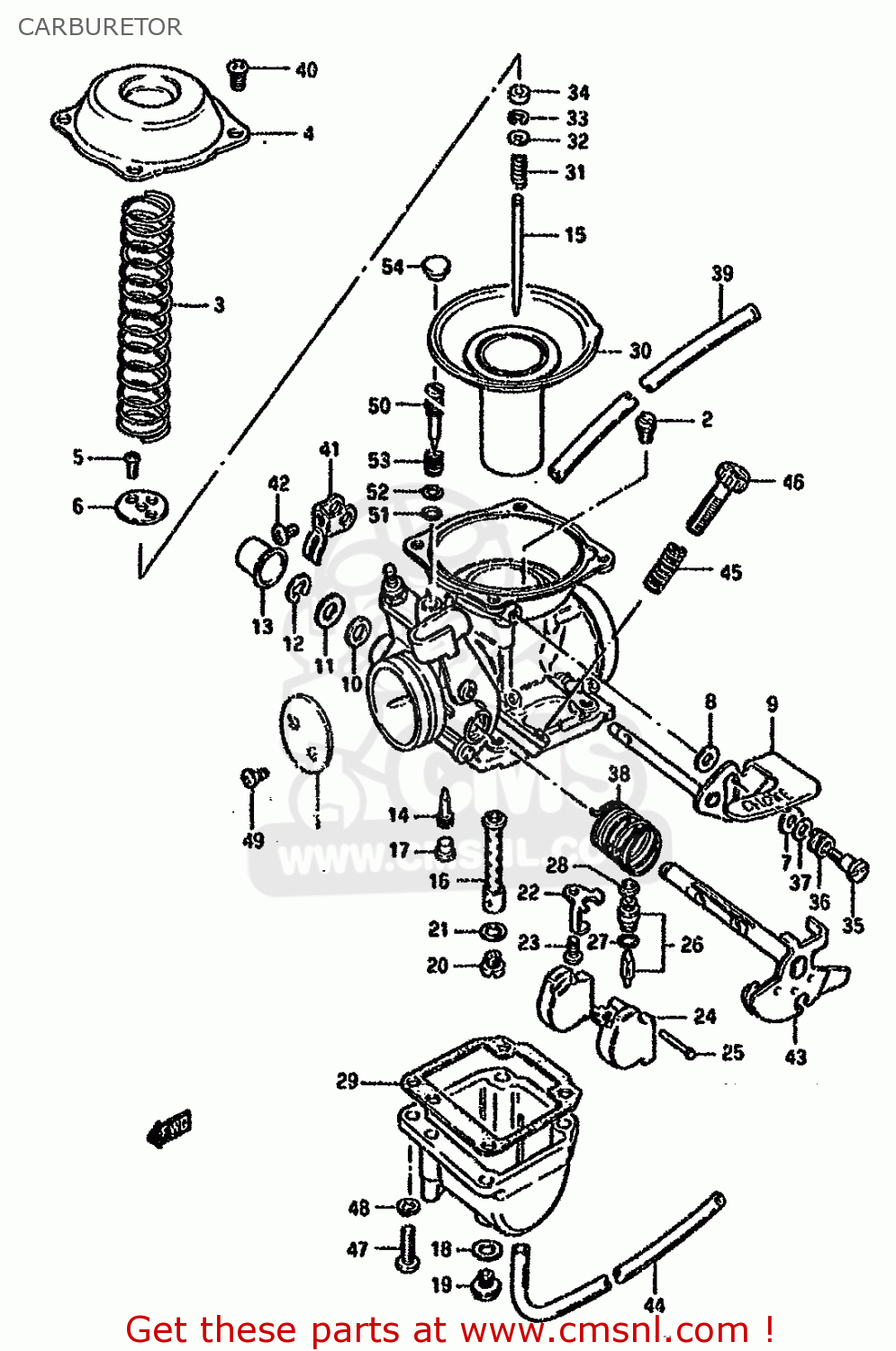

CARBURETOR

ref

pièce #

description

quantité

0

1320005311
ref: 0

CARBURETOR ASSY

€ 316.50

0

1320005370
ref: 0
E18 F.NO.110520~

CARBURETOR ASSY

€ 0.00

0

13200053C0
ref: 0
E22

CARBURETOR ASSY

€ 0.00

0

1320005300
ref: 0
MODEL N/R:E30

CARBURETOR ASSEMBLY

€ 137.50

1

1355133200
ref: 1

VALVE,THROTTLE

€ 0.00

2

0949136005
ref: 2

JET,MAIN(180)

€ 9.50

3

1350333200
ref: 3

SPRING

€ 8.00

4

1350233210
ref: 4

COVER

€ 18.50

5

1339934010
ref: 5

SCREW

€ 2.00

6

1338937400
ref: 6

PLATE

€ 5.00

7

1343105300
ref: 7

PACKING (NAS)

€ 5.00

8

1343244110
ref: 8

WASHER,STARTER LEVER (4.1X12X0.8)

€ 2.00

9

1341005300
ref: 9

SHAFT ASSY,STARTER

€ 18.00

10

1365151010
ref: 10

SEAL

€ 3.50

11

1355747070
ref: 11

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

12

1361744080
ref: 12

E RING

€ 3.50

13

1357847070
ref: 13

CAP

€ 5.50

14

0949235008
ref: 14

JET,PILOT(35)

€ 7.50

15-1

1338305310
ref: 15-1

NEEDLE,JET

€ 14.00

15-2

1338305300
ref: 15-2
MODEL N/R:E30

NEEDLE,JET

€ 0.00

16

0949400370
ref: 16

JET,NEEDLE(P-2)

€ 19.50

17

1335744080
ref: 17

PLUG,NEEDLE JET

€ 4.00

18

1324644080
ref: 18

GASKET (NAS)

€ 3.50

19

1324744080
ref: 19

PLUG,DRAIN

€ 9.00

20

0949120012
ref: 20

JET,MAIN(102.5)

€ 8.50

21

1333244080
ref: 21

WASHER,NEEDLE NOZZLE

€ 2.50

22-1

1337311400
ref: 22-1

PLATE,NEEDLE VALVE FITING

€ 6.50

22-2

1337339110
ref: 22-2
E22

PLATE

€ 6.50

23

0211204066
ref: 23

SCREW

€ 2.00

24

1325005300
ref: 24

FLOAT

€ 28.50

25

1325492311
ref: 25

PIN,FLOAT

€ 2.00

26

1337044500
ref: 26

VALVE ASSY,NEEDLE

€ 38.00

27

1337444080
ref: 27

O-RING,NEEDLE VALVE

€ 5.00

28

1337684110
ref: 28

FILTER

€ 7.00

29-1

1325133200
ref: 29-1

GASKET,FLOAT CHAMBER (NAS)

€ 11.00

29-2

1325105400
ref: 29-2
E22

GASKET,FLOAT CHAMBER (NAS)

€ 11.00

30-1

1350033200
ref: 30-1

DIAPHRAGM ASSEMBLY

€ 191.00

30-2

1350005400
ref: 30-2
E22

DIAPHRAGM ASSEMBLY

€ 191.00

31

1338844030
ref: 31

SPRING

€ 5.50

32

1338244030
ref: 32

WASHER

€ 3.00

33

1339410010
ref: 33

CLIP

€ 4.00

34

1338747010
ref: 34

RING

€ 6.00

35

1343833110
ref: 35

SCREW

€ 5.50

36

1342643010
ref: 36

SPRING

€ 4.50

37

1361543010
ref: 37

WASHER,STARTER SHAFT

€ 2.50

38

1357337100
ref: 38

SPRING,THROTTLE SHAFT

€ 0.00

39

1368422A00
ref: 39
L:550-300

HOSE

€ 12.00

40

0211205086
ref: 40

SCREW

€ 1.50

41

1342205300
ref: 41

LEVER

€ 0.00

42

1360531210
ref: 42

SCREW

€ 3.00

43

1355005300
ref: 43

SHAFT,THROTTLE

€ 0.00

44

1368337420
ref: 44
L:500-350

HOSE

€ 4.00

45

1326837420
ref: 45

SPRING,THROTTLE SCREW

€ 3.50

46

1326737100
ref: 46

SCREW,THROTTLE STOP

€ 8.50

47

0211204166
ref: 47

SCREW

€ 1.00

48

0832121046
ref: 48

LOCK WASHER

€ 1.50

49

1360444080
ref: 49

SCREW

€ 3.00

50-1

1327945410
ref: 50-1
MODEL Z/D

SCREW, PILOT

€ 8.00

50-2

1327945400
ref: 50-2
MODEL K/M EXCEPT E18

SCREW,PILOT

€ 8.00

51

1329529900
ref: 51
EXCEPT E18 F.NO.1105

O RING,PILOT AIR SCREW

€ 3.50

52

1329129900
ref: 52
EXCEPT E18 F.NO.1105

WASHER

€ 1.50

53

1326847070
ref: 53
EXCEPT E18 F.NO.1105

SPRING

€ 4.00

54

1335736A00
ref: 54
MODEL K/M EXCEPT E18

PLUG

€ 4.50
