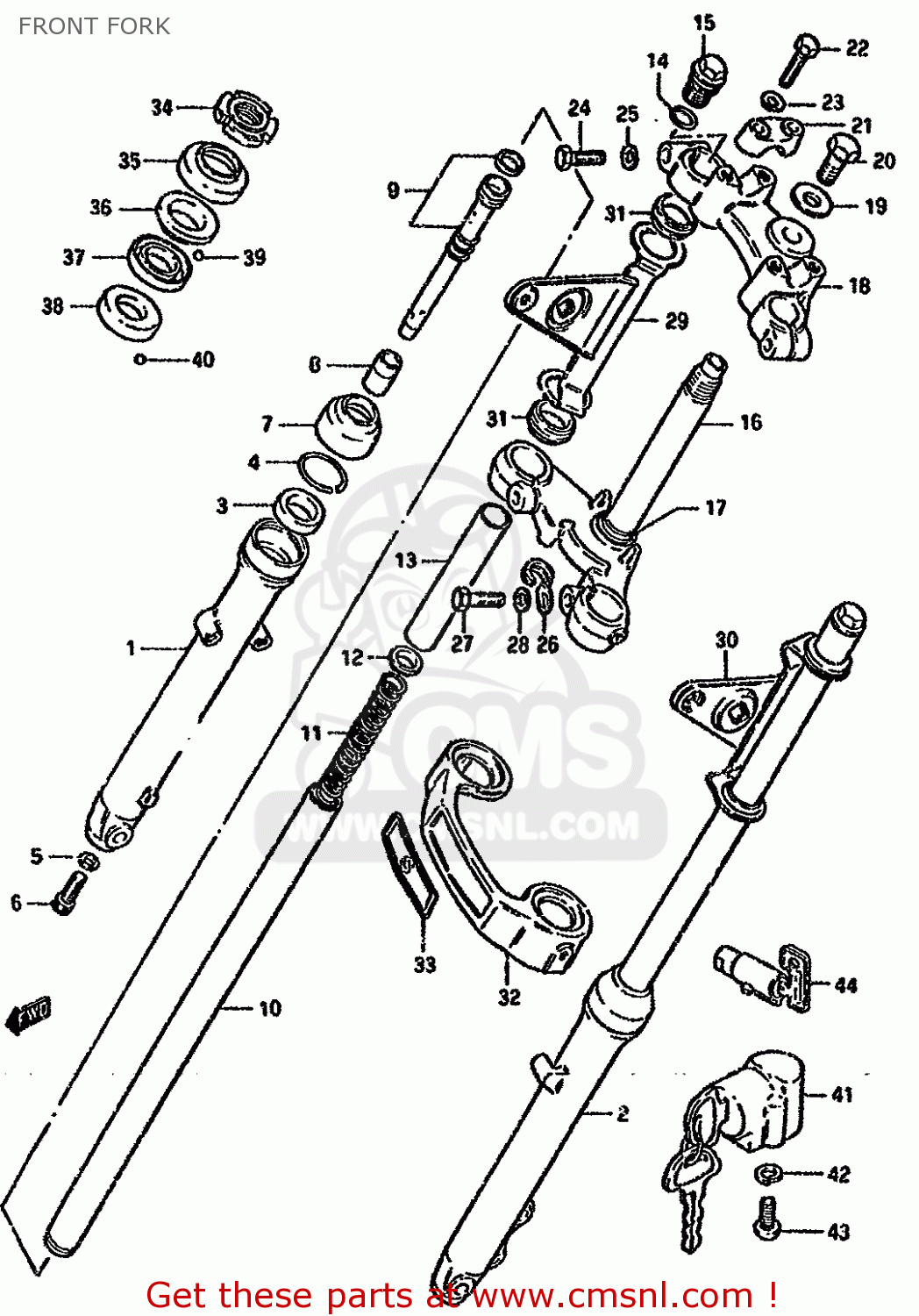

FRONT FORK

ref

pièce #

description

quantité

0

5110005300291
ref: 0
MODEL Z/D/K

FRONT FORK ASSY

€ 688.00

0

5110005301291
ref: 0
MODEL M/N/R

FORK ASSY,FR

€ 688.00

0

51100053B0291
ref: 0
E22

FRONT FORK ASSY

€ 0.00

1

5113005300
ref: 1

TUBE,OUTER,R

€ 140.50

2

5114005300
ref: 2

TUBE,OUTER,L

€ 154.50

3

5115305300
ref: 3

SEAL,OIL

€ 8.50

4

5115641603
ref: 4

RING,SNAP

€ 7.50

5

5114841310
ref: 5

GASKET (NAS)

€ 1.50

6

5114716510
ref: 6

BOLT,FORK CYLINDER(10X25)

€ 3.50

7

5117341603
ref: 7

SEAL,DUST

€ 5.00

8

5119536220
ref: 8

PIECE,OIL LOCK

€ 11.50

9

5114605300
ref: 9

CYLINDER

€ 35.00

10

5111005300
ref: 10

TUBE,INNER

€ 239.00

11

5117105300
ref: 11

SPRING

€ 24.50

12

5117218630
ref: 12

GUIDE,SPRING COVER

€ 5.00

13

5117605300
ref: 13

SPACER

€ 10.00

14-1

5118125010
ref: 14-1
MODEL Z/D/K/M

O-RING,FORK INNER TUBE

€ 2.50

14-2

5118129400
ref: 14-2
MODEL N/R

O RING

€ 2.50

15

5135141603
ref: 15

CAP

€ 11.00

16-1

5141011310
ref: 16-1
MODEL Z/D

STEM,STEERING

€ 157.50

16-2

5141011311
ref: 16-2
MODEL K/M/N/R

STEM,STEERING

€ 157.50

16-3

51410053B0
ref: 16-3
E22

STEM,STEERING

€ 142.00

17

5162133001
ref: 17

RACE,STEERING OUTER LWR

€ 9.50

18

5131111300291
ref: 18

HEAD,STEERING STEM(BLACK)

€ 128.00

19

5135622012
ref: 19

WASHER,STEM HEAD(10.5X30X3.2)

€ 4.00

20-1

5135120010
ref: 20-1
MODEL Z/D/K/M

BOLT,FORK INNER TUBE

€ 23.50

20-2

5135120011
ref: 20-2
MODEL N/R

BOLT,FORK INNER TUBE

€ 23.50

21

5621129320291
ref: 21

HOLDER,HANDLE(BLACK)

€ 8.00

22

0120408357
ref: 22

BOLT

€ 3.50

23

0832121088
ref: 23

LOCK WASHER

€ 1.50

24

5145115113
ref: 24

BOLT,FORK INNER TUBE F

€ 2.50

25

0832121107
ref: 25

WASHER,LOCK,10

€ 1.50

26

5145536010
ref: 26

CLIP

€ 6.00

27

5145128012
ref: 27

BOLT,FR FORK LWR(12X33)

€ 10.50

28

0832121128
ref: 28

WASHER,LOCK 12

€ 2.00

29

5153005300
ref: 29

BRACKET,HEADLAMP,R

€ 43.50

30

5154005300
ref: 30

BRACKET,HEADLAMP,L

€ 42.50

31

5155311300
ref: 31

CUSHION,HEADLAMP BRACKET

€ 3.50

32-1

5187105300
ref: 32-1
MODEL Z/D

COVER,FRAME HEAD

€ 27.00

32-2

5187105301
ref: 32-2
MODEL K/M/N/R

COVER,FR FORK

€ 27.00

33

6821138300
ref: 33

EMBLEM,FR FORK COVER

€ 7.50

34

5163128000
ref: 34

NUT,STEERING STEM(25X44X10)

€ 10.00

35

5164325001
ref: 35

DUST SEAL,STEERING UPR

€ 3.00

36

5162128000
ref: 36

RACE,STEERING OUTER UPR

€ 5.50

37

5161120002
ref: 37

RACE,STEERING INNER UPR

€ 5.50

38

5161133002
ref: 38

LACE,STEERING INNER LWR

€ 6.50

39

0611106003
ref: 39

BALL

€ 1.00

40

0611108003
ref: 40

BALL

€ 1.00

41

5191025311
ref: 41

LOCK ASSY,STEERING

€ 23.50

42

0832121057
ref: 42

LOCK WASHER

€ 2.00

43-1

0211205128
ref: 43-1
MODEL Z/D/K/M/N

SCREW

€ 1.50

43-2

0211235123
ref: 43-2
MODEL R

SCREW

€ 1.50

44

5190030901
ref: 44
E22

LOCK ASSY,STEERING(NEIMAN)

€ 175.00

toutes les assemblages
