TRANSMISSION

KAF300-C1 MULE550 1997 USA

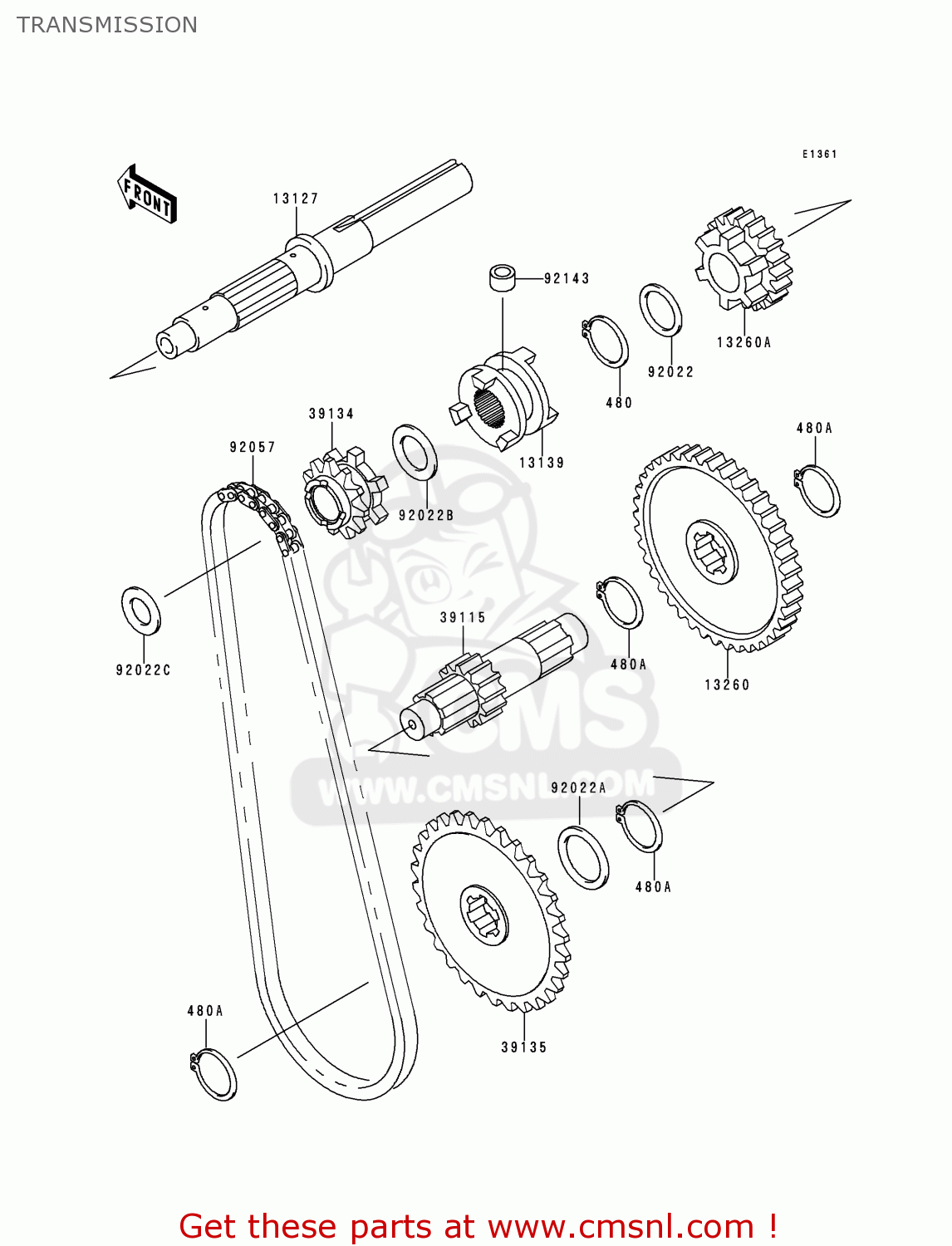

Transmission diagram KAF300-C1 MULE550 1997 USA

TRANSMISSION KAF300-C1 MULE550 1997 USA
TRANSMISSION KAF300-C1 MULE550 1997 USA
prices are in EUR
ref
part #
description
quantity
480
480J2500
ref: 480
CIRCLIP-TYPE-C,25MM
480J2500
€ 1.00
480A
480J2800
ref: 480A
CIRCLIP-TYPE-C,28MM
480J2800
€ 3.00
13127
131271203
ref: 13127
SHAFT-TRANSMISSION IN
€ 189.50
13139
131391070
ref: 13139
SHIFTER
€ 93.00
13260
132601152
ref: 13260
GEAR,OUTPUT FORWARD,5
€ 129.00
13260A
132601336
ref: 13260A
GEAR,INPUT FORWARD,24
€ 115.00
39115
391151070
ref: 39115
SHAFT,OUTPUT REDUCTIO
€ 154.50
39134
391341054
ref: 39134
SPROCKET-DRIVE,11T
€ 93.00
39135
391351053
ref: 39135
GEAR,OUTPUT REVERSE,3
€ 108.00
92022
920221109
ref: 92022
WASHER,25.3X33X1
920221109
€ 4.00
92022A
920221626
ref: 92022A
WASHER,28.3X34X0.3
920221626
€ 14.00
92022B
920221723
ref: 92022B
WASHER,22.3X35X2.0
€ 7.00
92022C
92022270
ref: 92022C
WASHER,PLAIN
92022270
€ 6.50
92057
920571349
ref: 92057
CHAIN,REVERSE
920571349
€ 15.00
92143
921431497
ref: 92143
COLLAR,8X14X10.5
921431497
€ 3.00
