Your online partscatalog

GEAR CHANGE MECHANISM

KAF300-C1 MULE550 1997 USA

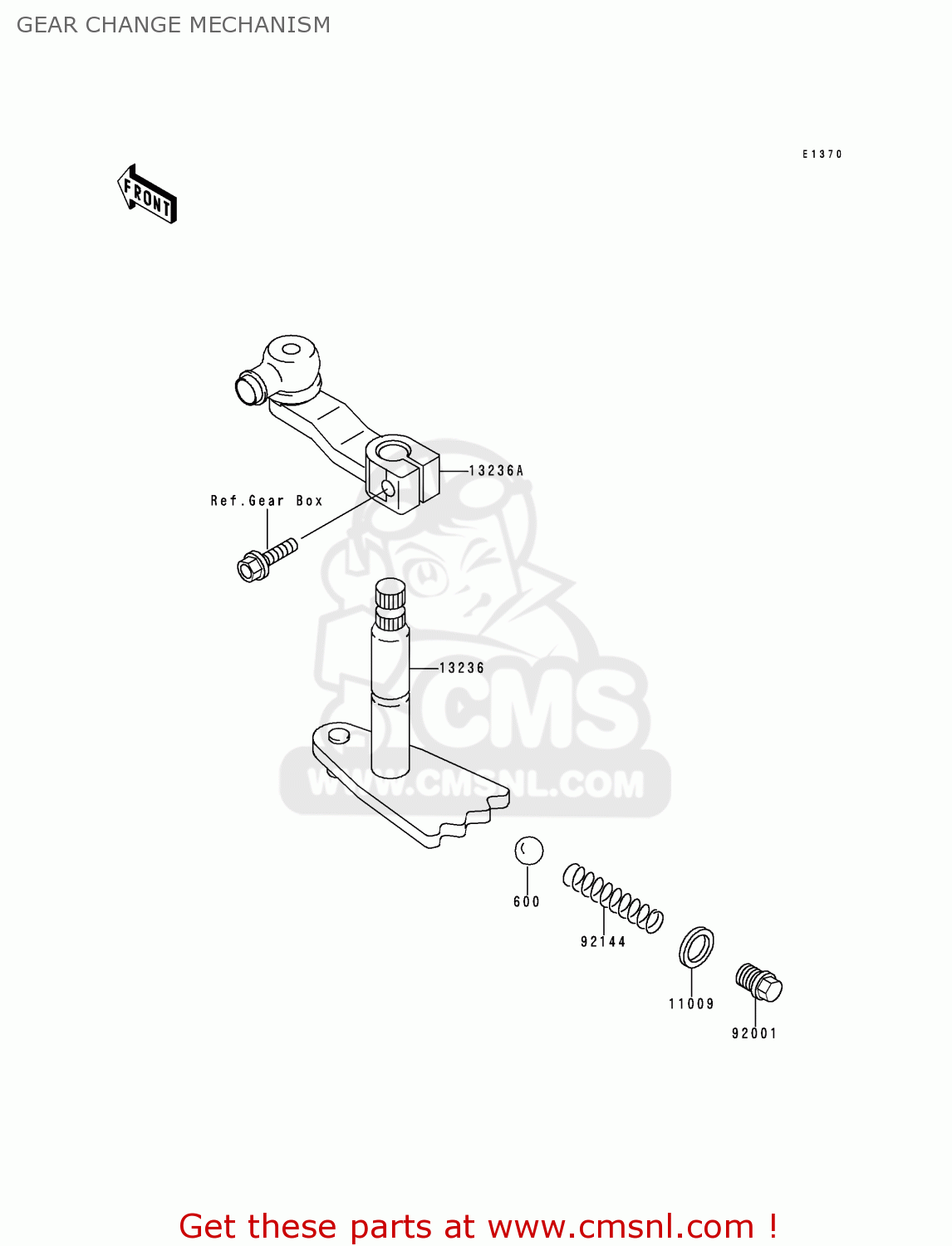

Gear change mechanism diagram KAF300-C1 MULE550 1997 USA

GEAR CHANGE MECHANISM KAF300-C1 MULE550 1997 USA
GEAR CHANGE MECHANISM KAF300-C1 MULE550 1997 USA
prices are in EUR
ref
part #
description
quantity
600
600A1300
ref: 600
BALL-STEEL,13/32
600A1300
€ 0.50
11009
110091008
ref: 11009
GASKET,15.5X22X1 (NAS)
110091008
€ 2.50
13236
132361218
ref: 13236
LEVER-COMP,CHANGE
€ 21.00
13236A
132361258
ref: 13236A
LEVER-COMP
132361258
€ 39.00
92001
920011037
ref: 92001
BOLT,NEUTAL POSITION
920011037
€ 9.00
92144
921441551
ref: 92144
SPRING
921441551
€ 2.50
