REAR HUBS/BRAKES

KAF300-C1 MULE550 1997 USA

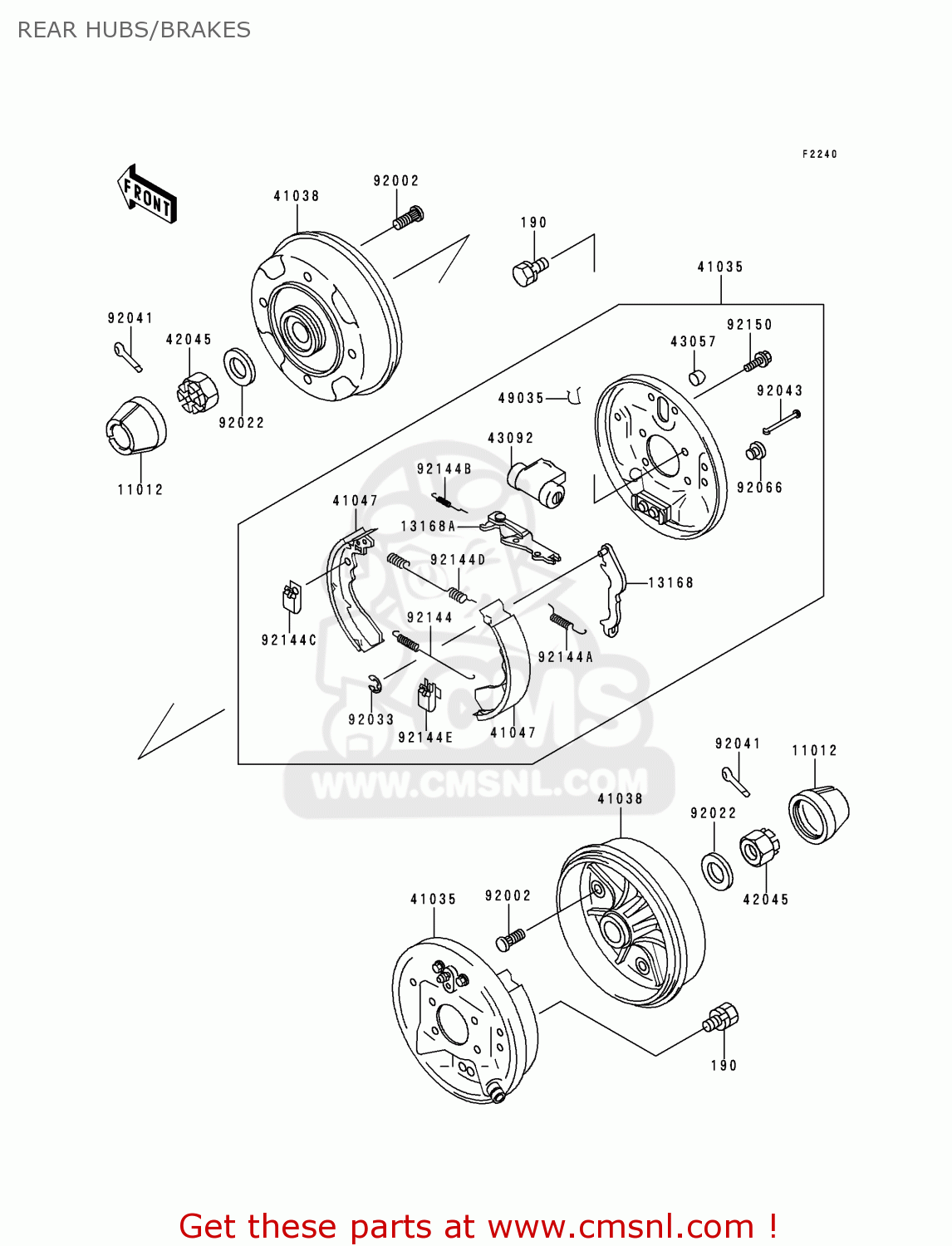

Rear hubs/brakes diagram KAF300-C1 MULE550 1997 USA

REAR HUBS/BRAKES KAF300-C1 MULE550 1997 USA
REAR HUBS/BRAKES KAF300-C1 MULE550 1997 USA
prices are in EUR
ref
part #
description
quantity
190
190H1016
ref: 190
BOLT-UPSET-WS,10X16
190H1016
€ 2.50
11012
110121969
ref: 11012
CAP,WHEEL
110121969
€ 4.50
13168
131681481
ref: 13168
LEVER
€ 12.50
13168A
131681482
ref: 13168A
LEVER
€ 24.00
41035
410351283
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 446.50
41038
410381239
ref: 41038
DRUM,REAR BRAKE
410381239
€ 256.00
41047
410471052
ref: 41047
SHOE-ASSY-BRAKE,RR (NAS)
410471052
€ 14.00
42045
42045018
ref: 42045
NUT,18MM
42045018
€ 7.00
43057
430571054
ref: 43057
CAP-BREATHER
€ 3.00
43092
430921058
ref: 43092
CYLINDER
430921058
€ 104.50
49035
490351058
ref: 49035
PIN-SPRING
490351058
€ 3.00
92002
920021388
ref: 92002
BOLT,10X30
920021388
€ 6.00
92022
920221658
ref: 92022
WASHER,18.3X34X4.5
920221658
€ 3.00
92033
920331279
ref: 92033
RING-SNAP
€ 2.50
92041
920411053
ref: 92041
COTTER,4.0X35
920411053
€ 2.50
92043
920431460
ref: 92043
PIN,SHOE HOLD
920431460
€ 3.00
92066
920661365
ref: 92066
PLUG
€ 2.50
92144
921441613
ref: 92144
SPRING,RETURN,LWR
921441613
€ 5.00
92144A
921441614
ref: 92144A
SPRING
921441614
€ 4.00
92144B
921441615
ref: 92144B
SPRING
921441615
€ 3.00
92144C
921441616
ref: 92144C
SPRING,SHOE HOLD
921441616
€ 5.50
92144D
921441851
ref: 92144D
SPRING,RETURN,UPP
921441851
€ 6.00
92144E
921441858
ref: 92144E
SPRING,SHOE HOLD
921441858
€ 6.00
92150
921501664
ref: 92150
BOLT,FLANGED,6X10
€ 2.50
