CRANKSHAFT/PISTON(S)

KAF300-C1 MULE550 1997 USA

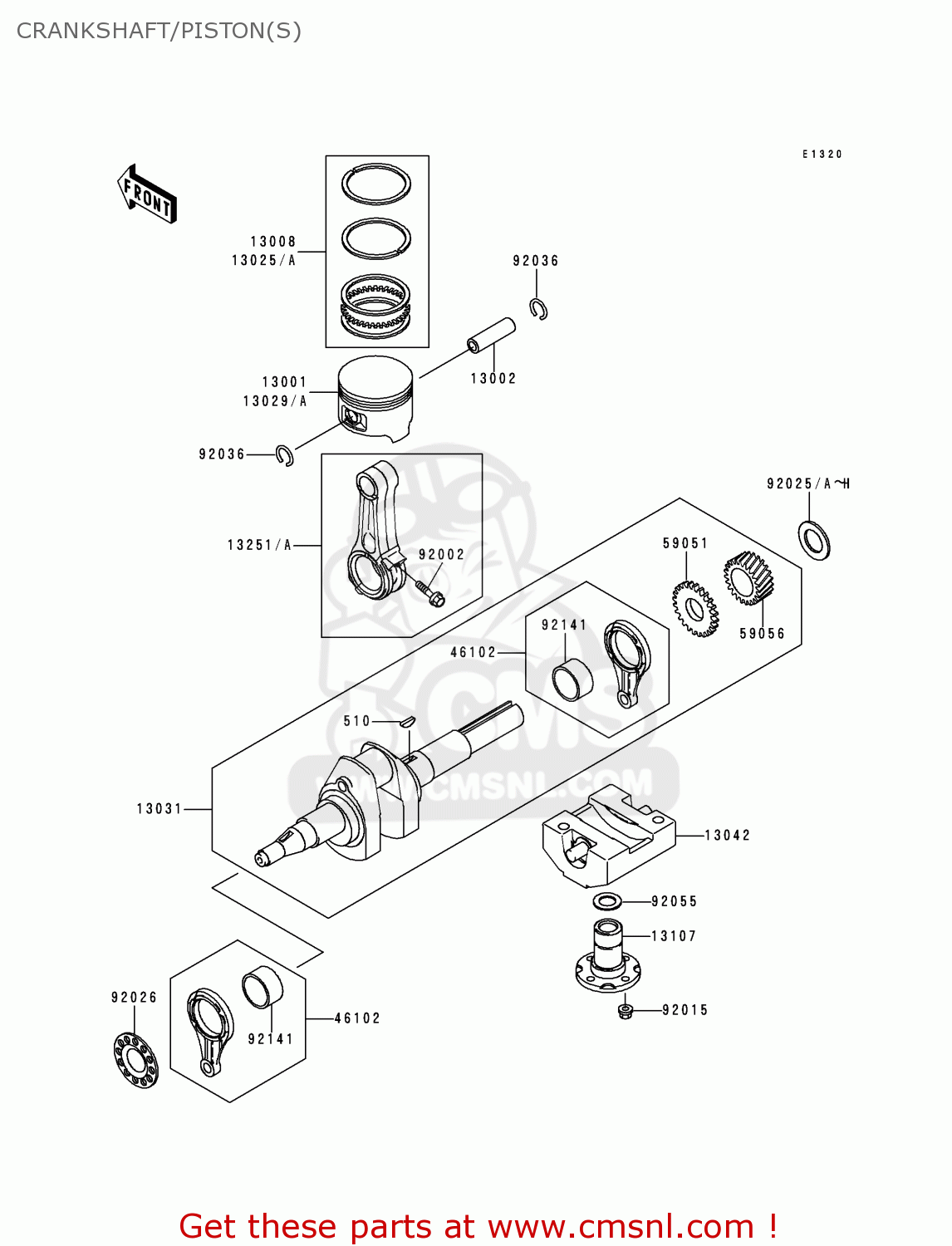

Crankshaft/piston(s) diagram KAF300-C1 MULE550 1997 USA

CRANKSHAFT/PISTON(S) KAF300-C1 MULE550 1997 USA
CRANKSHAFT/PISTON(S) KAF300-C1 MULE550 1997 USA
prices are in EUR
ref
part #
description
quantity
510
510A5100
ref: 510
KEY-WOODRUFF
510A5100
€ 1.50
13001
130012125
ref: 13001
PISTON-ENGINE,STD
€ 33.50
13002
130022069
ref: 13002
PIN-PISTON
130022069
€ 6.00
13008
130086007
ref: 13008
RING-SET-PISTON,STD
130086007
€ 31.50
13025
130252073
ref: 13025
RING-SET-PISTON L,0.2
130252073
€ 27.00
13025A
130252074
ref: 13025A
RING-SET-PISTON L,0.5
130252074
€ 34.50
13029
130292100
ref: 13029
PISTON-ENGINE L,0.25
€ 45.50
13029A
130292101
ref: 13029A
PISTON-ENGINE L,0.50
130292101
€ 41.50
13031
130312060
ref: 13031
CRANKSHAFT-COMP
€ 295.00
13042
130426009
ref: 13042
WEIGHT
€ 79.50
13107
131072088
ref: 13107
SHAFT
131072088
€ 14.50
13251
132516034
ref: 13251
ROD-ASSY-CONNECTING,U
€ 53.00
13251A
132516056
ref: 13251A
ROD-ASSY-CONNECTING
€ 66.50
46102
461026004
ref: 46102
ROD
€ 32.00
59051
590512097
ref: 59051
GEAR-SPUR
590512097
€ 22.50
59056
590562993
ref: 59056
GEAR-HELICAL
€ 34.50
92002
920022053
ref: 92002
BOLT
920022053
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92025
920252168
ref: 92025
SHIM,T=1.13
€ 2.50
92025A
920252169
ref: 92025A
SHIM,T=1.18
€ 2.50
92025B
920252170
ref: 92025B
SHIM,T=1.23
€ 2.50
92025C
920252171
ref: 92025C
SHIM,T=1.28
€ 2.50
92025D
920252172
ref: 92025D
SHIM,T=1.33
€ 2.50
92025E
920252173
ref: 92025E
SHIM,T=1.38
€ 3.00
92025F
920252174
ref: 92025F
SHIM,T=1.43
€ 3.00
92025G
920252175
ref: 92025G
SHIM,T=1.48
€ 3.00
92025H
920252207
ref: 92025H
SHIM,T=1.53
920252207
€ 3.00
92026
920262052
ref: 92026
SPACER
€ 10.50
92036
92036008
ref: 92036
CIRCLIP-PISTON PIN
92036008
€ 0.50
92055
920552072
ref: 92055
RING-O
920552072
€ 1.00
92141
921412090
ref: 92141
BEARING-PLANE
€ 5.00
