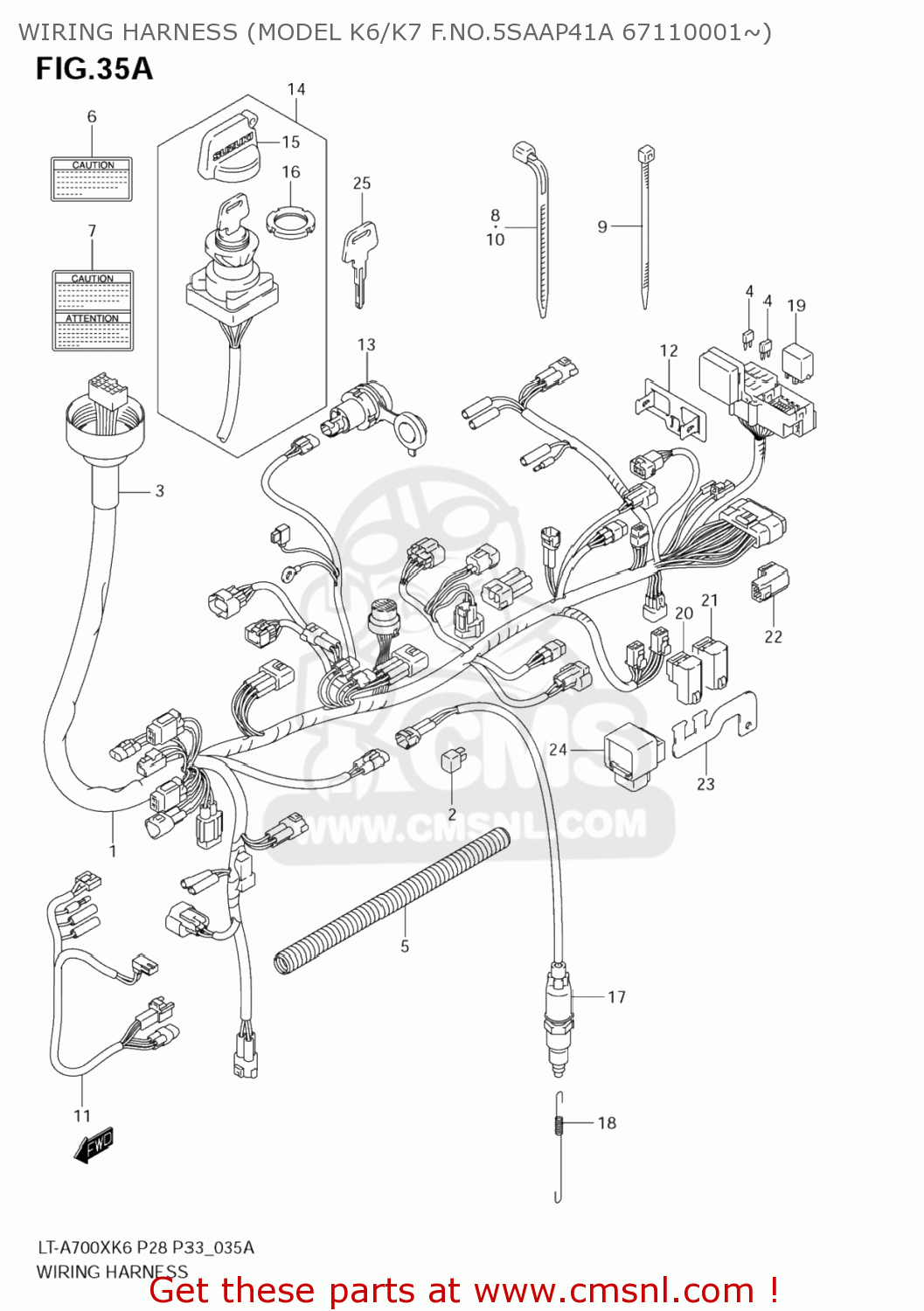

WIRING HARNESS (MODEL K6/K7 F.NO.5SAAP41A 67110001~)

LT-A700X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD

Wiring harness (model k6/k7 f.no.5saap41a 67110001~) technisch schema LT-A700X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD

WIRING HARNESS (MODEL K6/K7 F.NO.5SAAP41A 67110001~) LT-A700X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD
WIRING HARNESS (MODEL K6/K7 F.NO.5SAAP41A 67110001~) LT-A700X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
3661031G30
ref: 1
36610-31G32
HARNESS,WIRING
€ 201.50
2
3280016A00
ref: 2
RECTIFIER ASSY
3280016A00
€ 9.50
3
3661831G00
ref: 3
COVER,SPEED
€ 7.00
4-1
0948110501
ref: 4-1
FUSE(10A)
0948110501
€ 2.00
4-2
0948115501
ref: 4-2
FUSE(15A)
0948115501
€ 1.00
5
3661931G00
ref: 5
GUIDE,WIRING HARNESS
€ 9.50
6
3885209F30
ref: 6
LABEL,CAUTION MAX AMP
€ 3.50
7
3885203G10
ref: 7
LABEL,CAUTION MAX AMP
€ 5.50
8-1
0940711401
ref: 8-1
CLAMP(L:95)
€ 2.50
8-2
0940714403
ref: 8-2
CLAMP(L:125)
0940714403
€ 2.50
8-3
0940718402
ref: 8-3
CLAMP(L:165)
0940718402
€ 2.00
8-4
0940725401
ref: 8-4
CLAMP(L:235)
0940725401
€ 4.00
9
0940714407
ref: 9
CLAMP(L:145)
0940714407
€ 3.00
10
0940719401
ref: 10
CLAMP(L:190)
€ 2.00
11-1
3685703G00
ref: 11-1
WIRE,FR BRAKE SW LEAD
€ 22.50
11-2
3685731G00
ref: 11-2
WIRE,FR BRAKE SW LEAD
€ 32.50
12
3674431G00
ref: 12
BRACKET,FUSE BOX
3674431G00
€ 13.50
13
3885003G00
ref: 13
TERMINAL,POWER SOURCE
3885003G00
€ 40.50
14
3711031G00
ref: 14
SWITCH ASSY,IGNITION
3711031G00
€ 95.00
15
3714219B00
ref: 15
MASCOT,KEY
3714219B00
€ 3.50
16
3711224500
ref: 16
NUT,IGNITION SWITCH
3711224500
€ 5.00
17
3774038F01
ref: 17
SWITCH ASSY,STOP LAMP
3774038F01
€ 53.50
18
0944306080
ref: 18
SPRING
0944306080
€ 3.50
19
3873009F00
ref: 19
RELAY,NEUTRAL START
3873009F00
€ 25.00
20-1
3874031G10
ref: 20-1
RELAY ASSY
3874031G10
€ 18.50
20-2
3874031G01
ref: 20-2
RELAY ASSY,FUEL PUMP
3874031G01
€ 25.50
21-1
3874031G10
ref: 21-1
RELAY ASSY
3874031G10
€ 18.50
21-2
3874031G01
ref: 21-2
RELAY ASSY,FUEL PUMP
3874031G01
€ 25.50
22
3874031G01
ref: 22
RELAY ASSY,FUEL PUMP
3874031G01
€ 25.50
23
3874131G10
ref: 23
38741-31G20
BRACKET,RELAY
3874131G10
€ 10.50
24
3875031G00
ref: 24
RELAY ASSY,DRIVE
3875031G00
€ 84.50
25-1
3714619B00
ref: 25-1
KEY,BLANK(TYPE:C)
3714619B00
€ 5.00
25-2
3714619B10
ref: 25-2
KEY,BLANK(TYPE:D)
3714619B10
€ 5.00
25-3
3714619B20
ref: 25-3
KEY,BLANK(TYPE:E)
3714619B20
€ 5.00
25-4
3714619B30
ref: 25-4
KEY,BLANK(TYPE:F)
3714619B30
€ 5.00
