MAGNETO

LT-A700X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD

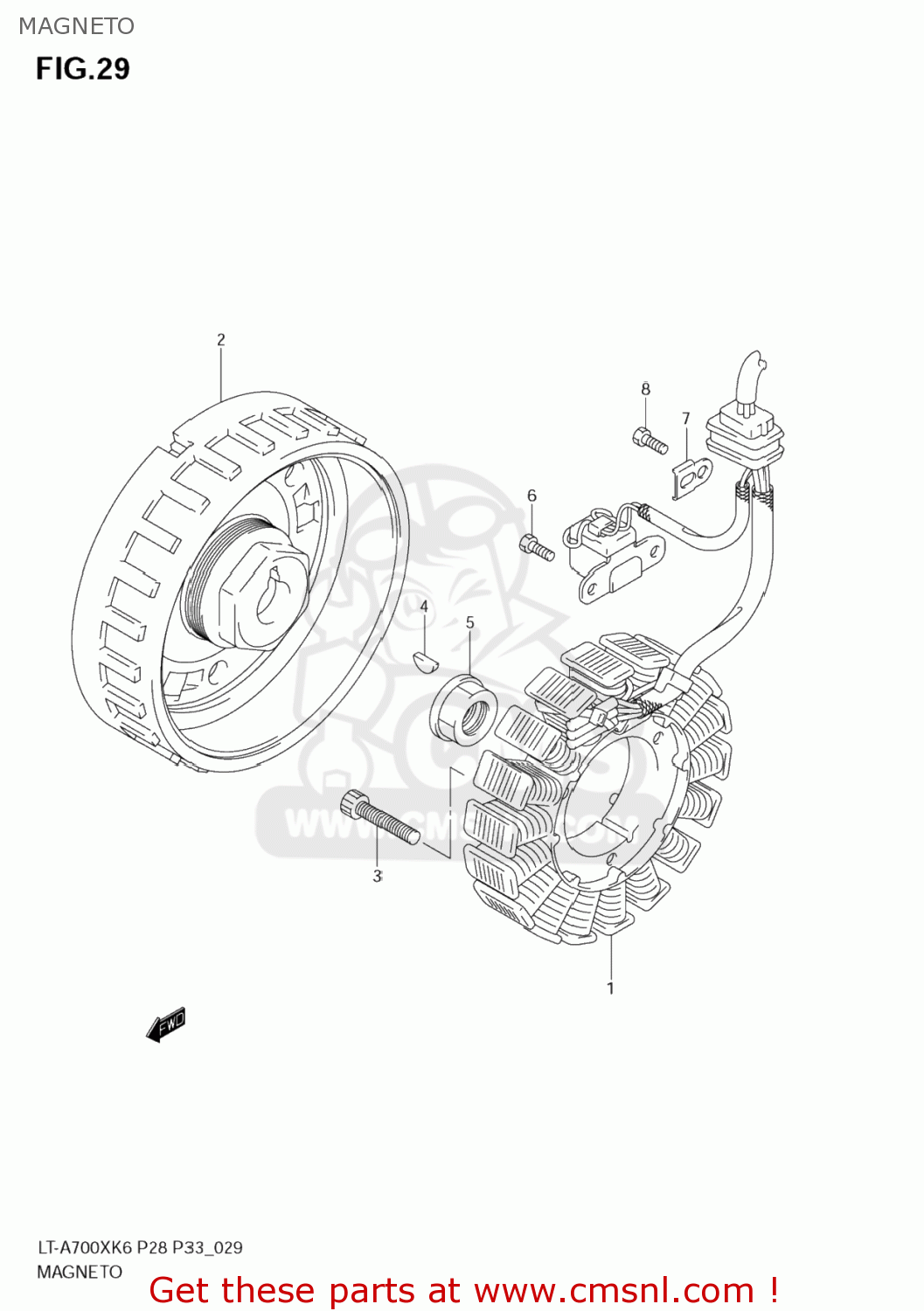

Magneto technisch schema LT-A700X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD

prijzen zijn in EUR

ref

onderdeelnr

omschrijving

hoeveelheid

3210131G00
ref: 1
32101-31G01

STATOR ASSY

€ 565.50

3210231G00
ref: 2

ROTOR ASSY

€ 503.50

0713006303
ref: 3
07130-0630B

BOLT

€ 3.00

0834131059
ref: 4

KEY

€ 2.00

3179218A00
ref: 5

NUT,MAGNETO ROTOR

€ 7.50

0910005019
ref: 6

BOLT(5X10)

€ 1.50

3149745000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0910005019
ref: 8

BOLT(5X10)

€ 1.50
