REAR BRAKE

LT-A700X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD

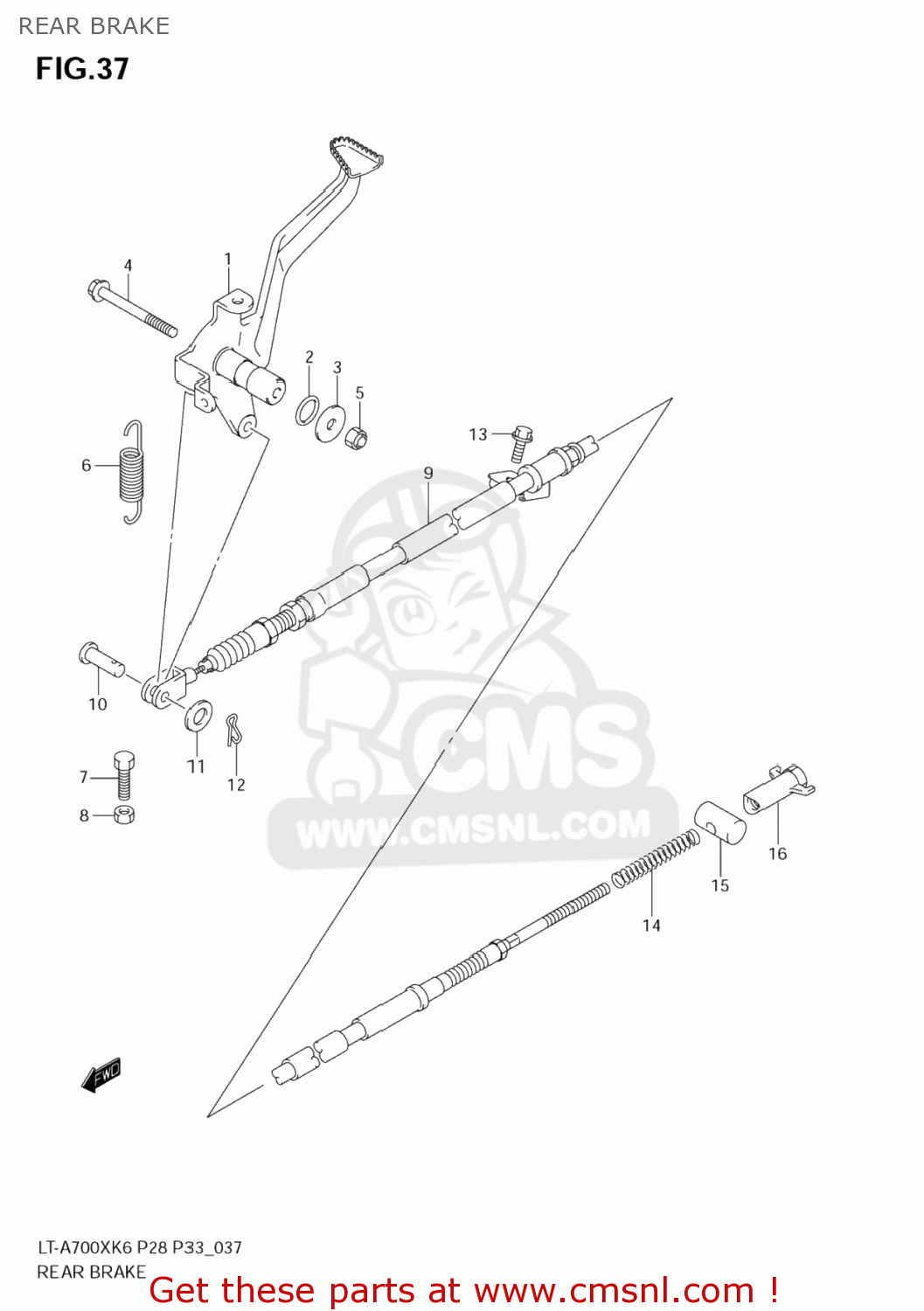

Rear brake technisch schema LT-A700X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD

prijzen zijn in EUR

ref

onderdeelnr

omschrijving

hoeveelheid

4311031G00
ref: 1

PEDAL,BRAKE

€ 297.50

0928014011
ref: 2

O RING(D:2.5,ID:13.8)

€ 3.50

0916006138
ref: 3

WASHER(6.5X22X2.3)

€ 2.50

0155006653
ref: 4
01550-0665A

BOLT

€ 2.50

0831921063
ref: 5
08319-2106B

NUT

€ 2.00

0944312019
ref: 6

SPRING

€ 5.50

0150006203
ref: 7
01500-0620A

BOLT

€ 1.50

0831000063
ref: 8
08310-0006A

NUT 6MM

€ 1.50

5851031G00
ref: 9

CABLE,RR BRAKE

€ 46.50

0920005001
ref: 10

PIN(L:17.5)

€ 1.50

0832201063
ref: 11
08322-0106B

WASHER

€ 1.50

0938506012
ref: 12

CLIP

€ 1.50

0155006163
ref: 13
01550-0616A

BOLT

€ 2.50

0944008042
ref: 14

SPRING

€ 2.00

0920913006
ref: 15

PIN

€ 6.00

0915006015
ref: 16

NUT

€ 2.50
