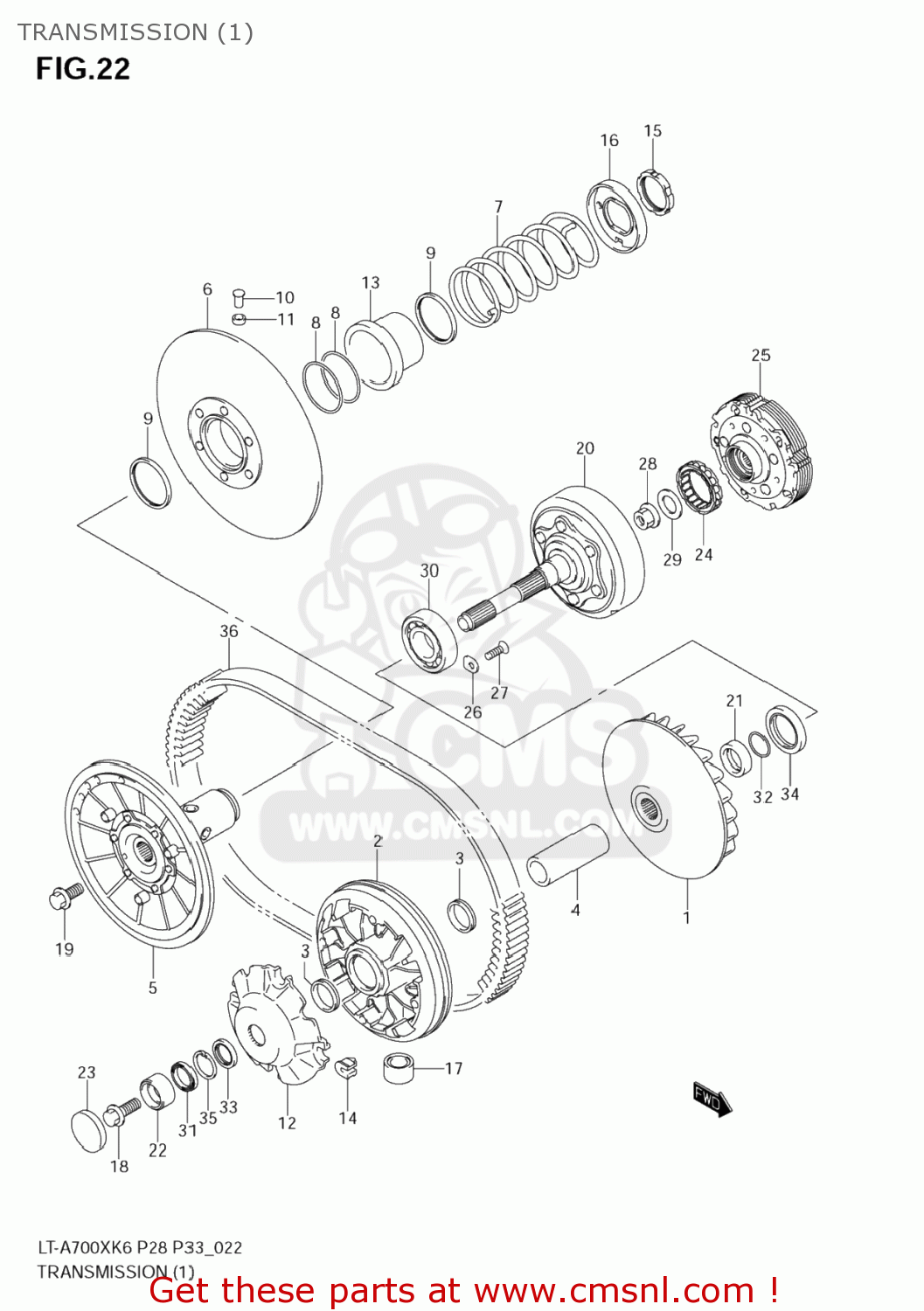

TRANSMISSION (1)

ref

onderdeelnr

omschrijving

hoeveelheid

1

2111031G00
ref: 1

FACE,FIXED DRIVE

€ 90.50

2

2112031G00
ref: 2

FACE,MOVABLE DRIVE

€ 93.50

3

2112431G00
ref: 3

SEAL,MOVABLE DRIVE FACE OIL

€ 9.00

4

2112531G00
ref: 4

SPACER,MOVABLE DRIVE

€ 31.00

5

2121031G00
ref: 5
21210-31G01

FACE,FIXED DRI

€ 226.50

6

2124031G00
ref: 6
21240-31G01

FACE,MOVABLE D

€ 273.50

7

2124309F52
ref: 7

SPRING,MOVABLE DRIVEN

€ 30.00

8

2124515F00
ref: 8

O RING,MOVABLE DRIVEN

€ 4.00

9

2124731G00
ref: 9

SEAL,MOVABLE DRIVEN

€ 9.50

10

2124815F01
ref: 10

PIN,MOVABLE DRIVEN

€ 3.50

11

2124915F00
ref: 11

SPACER,MOVABLE DRIVEN PIN

€ 4.50

12

2143131G00
ref: 12

PLATE,MOVABLE DRIVE

€ 25.00

13

2147109F60
ref: 13

SHEET,MOVABLE DRIVEN

€ 9.00

14

2148114F00
ref: 14

DAMPER,MOVABLE DRIVE PLATE

€ 5.00

15

2151809F50
ref: 15

NUT,DRIVEN PULLEY SPRING

€ 19.50

16

2151909F52
ref: 16

HOLDER,MOVABLE DRIVEN SPRING

€ 10.50

17

2165031G00
ref: 17

ROLLER,MOVABLE DRIVE

€ 11.00

18

0910312028
ref: 18

BOLT(12X30)

€ 5.00

19

0910312049
ref: 19

BOLT(12X25)

€ 3.50

20

2110031G00
ref: 20

HOUSING,CLUTCH

€ 253.50

21

2110231G00
ref: 21

SPACER,PRIMARY SHAFT

€ 14.50

22

2110631G00
ref: 22

SPACER,CLUTCH HOUSING BRG

€ 23.00

23

2110731G00
ref: 23

CAP,V-BELT BEARING HOUSING

€ 5.50

24

2127344D00
ref: 24

CLUTCH,PRIMARY DRIVE ONE WAY

€ 80.50

25

2150031G00
ref: 25

CLUTCH ASSY,SHOE (NAS)

€ 261.00

26

2474120A00
ref: 26

RETAINER,COUNTER BEARING,R

€ 2.00

27

0912606011
ref: 27

SCREW(6X12)

€ 1.50

28

0915918020
ref: 28

NUT

€ 7.00

29

0916418004
ref: 29

WASHER

€ 3.00

30

0926228014
ref: 30

BEARING(28X68X18)

€ 39.50

31

0926235075
ref: 31

BEARING(35X47X7)

€ 55.00

32

0928025004
ref: 32

O RING(D:2.4,ID:24.7)

€ 2.00

33

0928335051
ref: 33

SEAL,OIL(35X47X5)

€ 18.50

34

0928338025
ref: 34

SEAL,OIL(38X56X7)

€ 26.00

35

0833141479
ref: 35

CIRCLIP

€ 2.50

36

2760131G00
ref: 36

V-BELT,DRIVE

€ 157.50
