WIRE HARNESS / IGNITION COIL

CL450 SCRAMBLER 1971 K4 USA

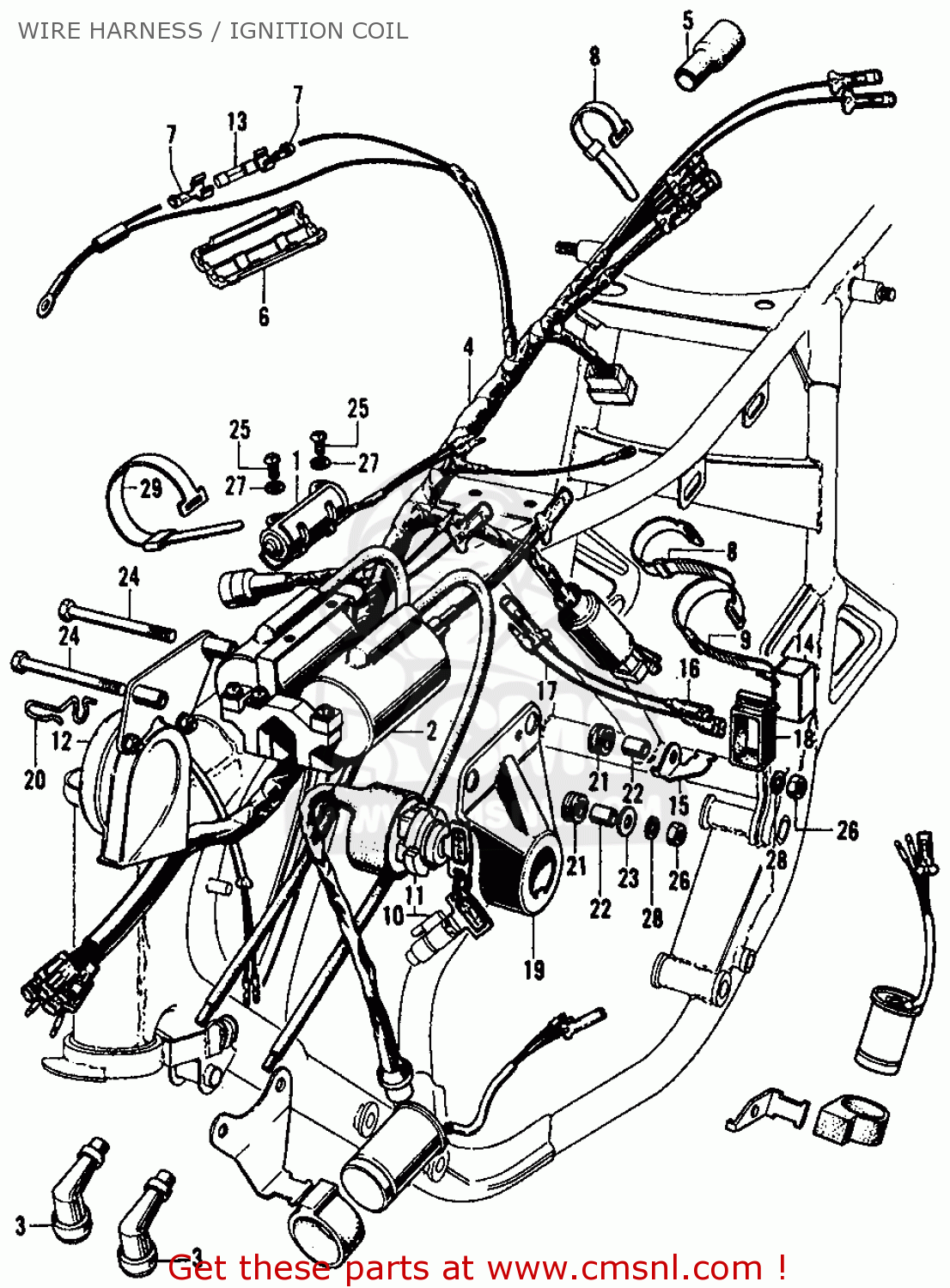

Wire harness / ignition coil technisch schema CL450 SCRAMBLER 1971 K4 USA

WIRE HARNESS / IGNITION COIL CL450 SCRAMBLER 1971 K4 USA
WIRE HARNESS / IGNITION COIL CL450 SCRAMBLER 1971 K4 USA
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
30280292672
ref: 1
A
CONDENSER ASSY
30280292672
€ 73.50
2
30500292672
ref: 2
A
COIL IGNITION
30500292672
€ 210.50
3
30700292000
ref: 3
A
CAP,SUPPRESER
€ 23.50
3
30700890000
ref: 3
A
CAP,NOISE SUPPR.
€ 23.50
3
30700890003
ref: 3
A
CAP ASSY.,NOISE S
€ 23.50
3
30700890013
ref: 3
A
CAP ASSY,NOISE SU
30700890013
€ 23.50
4
32100319000
ref: 4
A
HARNESS,WIRE
32100319000
€ 135.00
5
32108046000
ref: 5
A
CONNECTOR,HARNESS
32108046000
€ 5.50
6
32111230000
ref: 6
A
CASE,FUSE
32111230000
€ 5.00
7
32112230000
ref: 7
A
CONNECTOR,FUSE
32112230000
€ 6.00
8
32161286000
ref: 8
A
BAND,B1 WIRE
€ 3.00
8
9501462200
ref: 8
A
BAND,B1 WIRE
9501462200
€ 3.00
9
32161286000
ref: 9
A
BAND,B1 WIRE
€ 3.00
9
32162286000
ref: 9
A
BAND B3,WIRE HARN
€ 4.00
9
9501462200
ref: 9
A
BAND,B1 WIRE
9501462200
€ 3.00
10
35010303003
ref: 10
A
KEY-SET
€ 118.50
10
35010315007
ref: 10
A
KEY SET.
35010315007
€ 118.50
10
35010315017
ref: 10
A
KEY,SET
35010315017
€ 118.50
10
35010336611
ref: 10
A
KEY-SET
35010336611
€ 118.50
12
38100286014
ref: 12
A
HORN ASSY
€ 157.00
13
38201250000
ref: 13
A
FUSE,15A
38201250000
€ 1.00
13
9820011500
ref: 13
A
FUSE,15A
9820011500
€ 1.00
14
38300292670
ref: 14
A
SIGNAL STAT
38300292670
€ 42.00
14
38301KJ6741
ref: 14
A
RELAY,WINKER
€ 42.00
14
38301KJ6742
ref: 14
A
RELAY,WINKER
€ 42.00
14
38301KJ6743
ref: 14
A
RELAY COMP.,WINKE
38301KJ6743
€ 42.00
15
38301292672
ref: 15
A
STAY WINKER RELAY
€ 5.50
16
38304243670
ref: 16
A
CORD A WINKER
38304243670
€ 3.50
17
38305243670
ref: 17
A
CORD B WINKER
38305243670
€ 3.50
18
38306292670
ref: 18
A
SUSPENSION,RELAY
€ 1.00
19
50375292020B
ref: 19
A
BRACKET SWITCH
50375292020B
€ 14.50
20
50402283000
ref: 20
A
CLAMPER CABLE
50402283000
€ 7.50
21
84705292000
ref: 21
A
RUBBER,NU BRACKET
84705292000
€ 2.50
22
84706286000
ref: 22
A
COLLAR NO BRACKET
84706286000
€ 3.00
23
90581701000
ref: 23
A
WASHER,18MM
90581701000
€ 2.50
23
90581831650
ref: 23
A
WASHER,18MM
90581831650
€ 3.50
24
9200006065
ref: 24
A
BOLT HEX 6X65
9200006065
€ 1.50
24
92101060650A
ref: 24
A
BOLT,HEX,6X65
92101060650A
€ 1.50
25
93500050080A
ref: 25
A
SCREW,CROSS 5X8
93500050080A
€ 0.50
26
90310KA3711
ref: 26
A
NUT HEX 6MM
€ 1.00
26
94000060000S
ref: 26
A
NUT,HEX.,6MM
€ 1.00
26
9400106000
ref: 26
A
NUT,HEX 6MM
9400106000
€ 1.00
26
94001060000S
ref: 26
A
NUT,HEX 6MM
94001060000S
€ 1.00
26
94001060080S
ref: 26
A
NUT,HEX.,6MM
€ 1.00
26
94001062000S
ref: 26
A
NUT,HEX.,6MM
94001062000S
€ 1.00
26
9403006000
ref: 26
A
NUT,HEX 6MM
€ 1.00
27
9411105000
ref: 27
A
WASHER,SPG.,5MM
9411105000
€ 1.00
28
9411106000
ref: 28
A
WASHER,SPRING,6MM
9411106000
€ 1.00
