ALTERNATOR

CL450 SCRAMBLER 1971 K4 USA

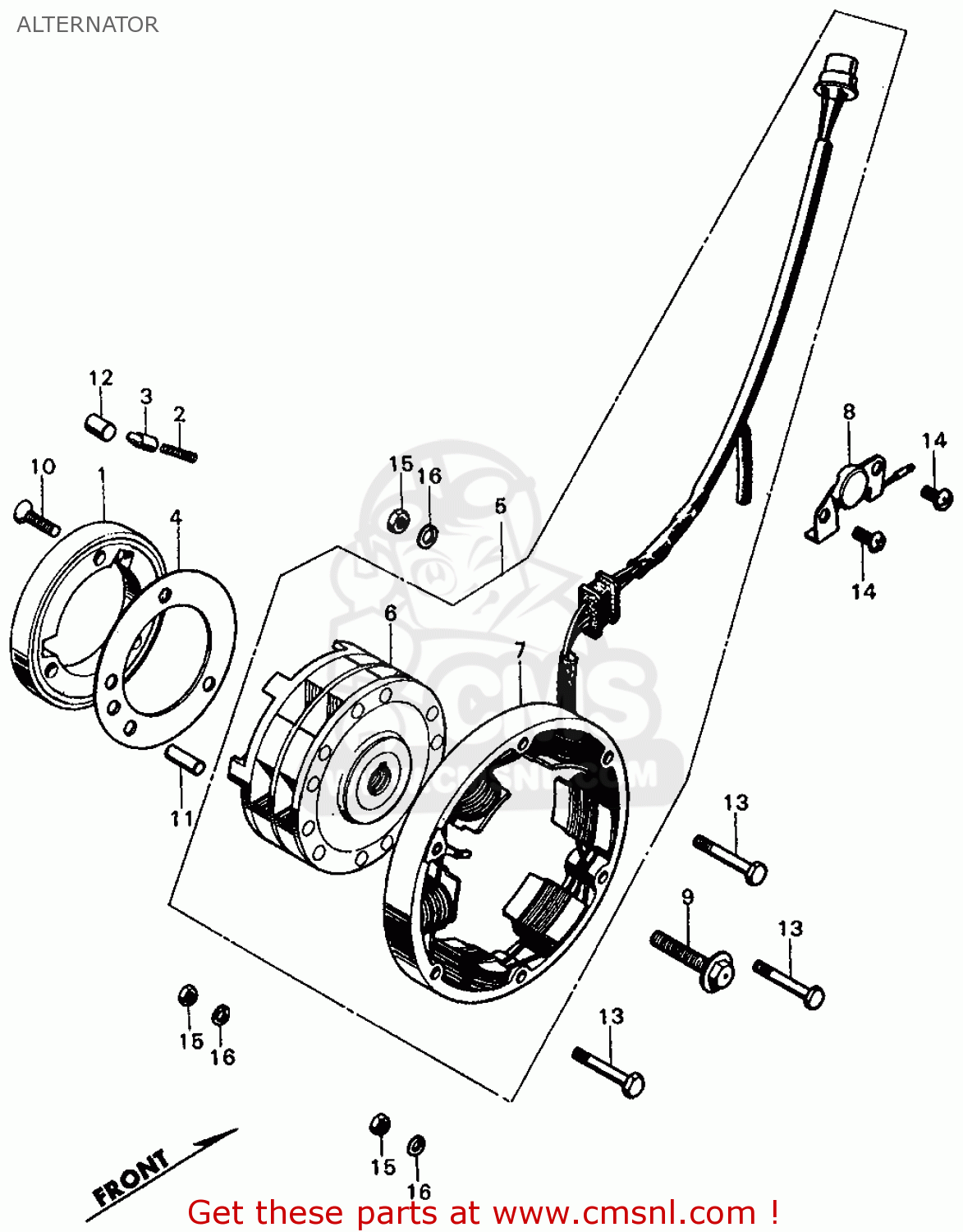

Alternator technisch schema CL450 SCRAMBLER 1971 K4 USA

ALTERNATOR CL450 SCRAMBLER 1971 K4 USA
ALTERNATOR CL450 SCRAMBLER 1971 K4 USA
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
28120292000
ref: 1
A
OUTER,CLUTCH
28120292000
€ 125.00
2
28125283010
ref: 2
A
SPRING, CLUTCH
28125283010
€ 3.50
3
28126292000
ref: 3
A
CAP,SPRING
28126292000
€ 10.50
4
28128283010
ref: 4
A
PLATE STARTING
28128283010
€ 10.50
5
31100292023
ref: 5
A
A.C.GENERATOR
31100292023
€ 989.00
6
31101292003
ref: 6
A
ROTOR,GENERATOR
31101292003
€ 734.50
7
31102292013
ref: 7
A
STATOR,GENERATOR
31102292013
€ 507.00
8
35750283000
ref: 8
A
SWITCH NEUTRAL
35750283000
€ 19.00
9
90014286000
ref: 9
A
BOLT,ROTOR SET
90014286000
€ 11.50
10
90091286000
ref: 10
A
SCREW,FLAT.6X25
90091286000
€ 3.50
11
90712500010
ref: 11
A
PIN KNOCK 8X18
90712500010
€ 2.00
12
91101377000
ref: 12
A
ROLLER,10.2X11.5
91101377000
€ 3.00
12
91103259000
ref: 12
A
ROLLER 10.2X11.5
91103259000
€ 3.00
13
9200006036
ref: 13
A
BOLT,HEX 6X36
9200006036
€ 1.50
13
9220006035
ref: 13
A
BOLT, HEX., 6X35
9220006035
€ 1.50
13
92201060350A
ref: 13
A
BOLT,HEX,6X35
92201060350A
€ 1.50
14
9350006010
ref: 14
A
SCREW,CROSS,6X10
9350006010
€ 1.00
15
90310KA3711
ref: 15
A
NUT HEX 6MM
€ 1.00
15
94000060000S
ref: 15
A
NUT,HEX.,6MM
€ 1.00
15
9400106000
ref: 15
A
NUT,HEX 6MM
9400106000
€ 1.00
15
94001060000S
ref: 15
A
NUT,HEX 6MM
94001060000S
€ 1.00
15
94001060080S
ref: 15
A
NUT,HEX.,6MM
€ 1.00
15
94001062000S
ref: 15
A
NUT,HEX.,6MM
94001062000S
€ 1.00
15
9403006000
ref: 15
A
NUT,HEX 6MM
€ 1.00
16
9411106000
ref: 16
A
WASHER,SPRING,6MM
9411106000
€ 1.00
