TURN SIGNAL K3-K5

CL450 SCRAMBLER 1971 K4 USA

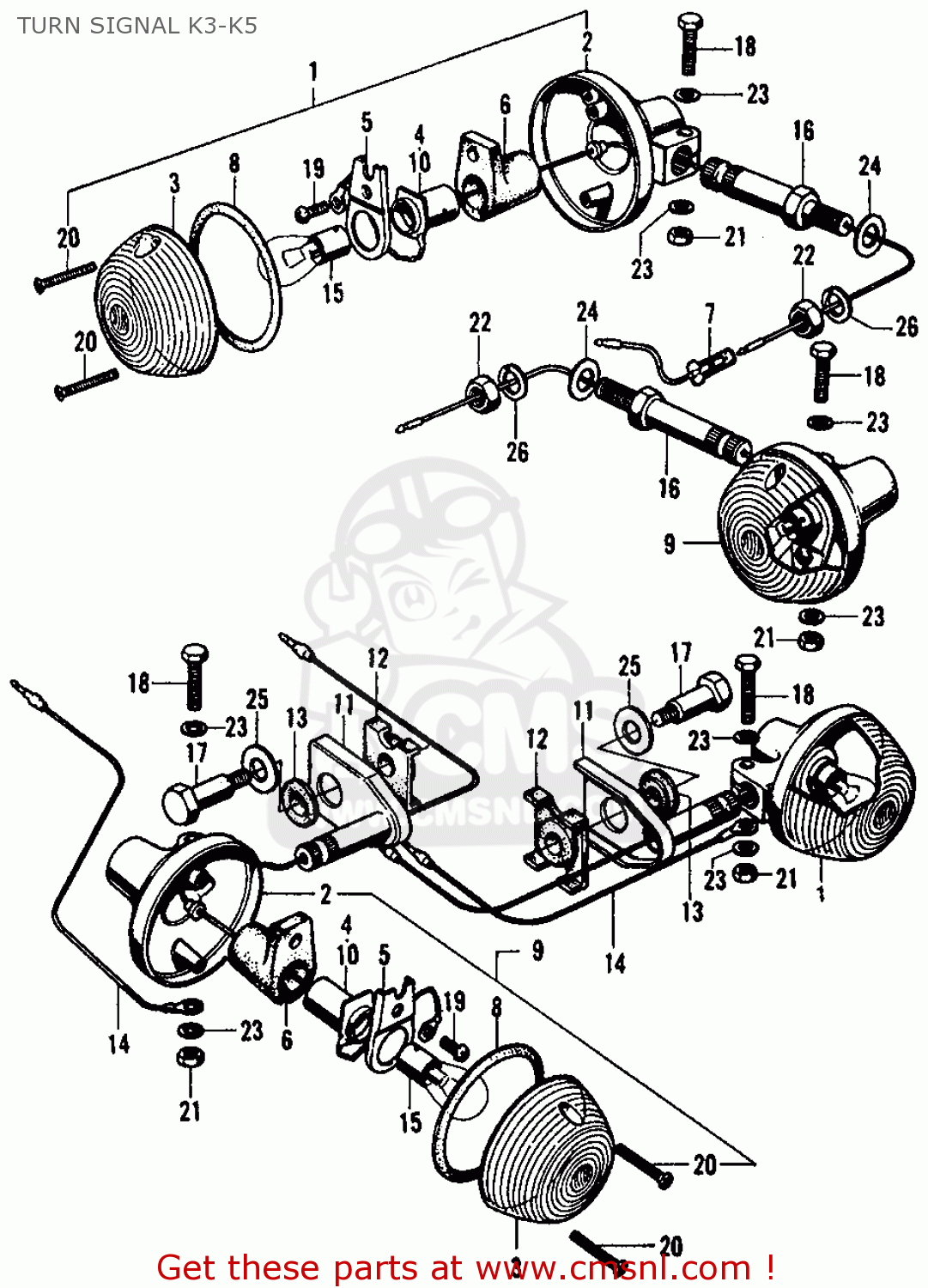

Turn signal k3-k5 technisch schema CL450 SCRAMBLER 1971 K4 USA

TURN SIGNAL K3-K5 CL450 SCRAMBLER 1971 K4 USA
TURN SIGNAL K3-K5 CL450 SCRAMBLER 1971 K4 USA
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
33400292670
ref: 1
A
WINKER ASSY,RIGHT
33400292670
€ 54.00
1
33400292679
ref: 1
A
WINKER ASSY 74IE
33400292679
€ 54.00
2
33401292003
ref: 2
A
BASE,WINKER
33401292003
€ 34.50
2
33401341701
ref: 2
A
BASE,WINKER
33401341701
€ 34.50
3
33402268671
ref: 3
A
LENS WINKER
33402268671
€ 11.00
3
33402268672
ref: 3
A
LENS,WINKER
33402268672
€ 11.00
4
33402292003
ref: 4
A
SOCKET,R.WINKER
33402292003
€ 15.50
5
33407284000
ref: 5
A
SOCKET,WINKER
33407284000
€ 4.50
5
33407284003
ref: 5
A
SOCKET,WINKER
33407284003
€ 4.50
6
33408284000
ref: 6
A
RUBBER,WINKER
€ 5.00
6
33408341701
ref: 6
A
RUBBER,WINKER
33408341701
€ 5.00
7
33410292000
ref: 7
A
CORD,F.WINKER SUB
33410292000
€ 3.00
8
33443268671
ref: 8
A
PACKING,LENS
33443268671
€ 2.50
9
33400292670
ref: 9
A
WINKER ASSY,RIGHT
33400292670
€ 54.00
9
33400292679
ref: 9
A
WINKER ASSY 74IE
33400292679
€ 54.00
9
33450292670
ref: 9
A
WINKER ASSY,LEFT
33450292670
€ 54.00
10
33453292003
ref: 10
A
SOCKET,L.WINKER
33453292003
€ 19.50
11
33607292000B
ref: 11
A
STAY,REAR WINKER
33607292000B
€ 34.50
12
33608292020
ref: 12
A
RUBBER,MOUNT
33608292020
€ 4.00
13
33608286000
ref: 13
A
RUBBER,MOUNT
33608286000
€ 3.00
13
33609292000
ref: 13
A
RUBBER,MOUNT
33609292000
€ 3.00
14
33620286670
ref: 14
A
CORD,WINKER EARTH
33620286670
€ 9.00
14
33620292000
ref: 14
A
CORD,WINKER EARTH
€ 9.00
15
34905268671
ref: 15
A
BULB, WINKER
34905268671
€ 4.00
16
90154268670
ref: 16
A
BOLT, RIGHT CASE
90154268670
€ 30.50
17
90155292010
ref: 17
A
BOLT,WINKER SET
90155292010
€ 10.00
18
92000060280B
ref: 18
A
BOLT, HEX., 6X28
€ 2.00
18
920000602802
ref: 18
A
BOLT, HEX., 6X28
920000602802
€ 2.00
19
93500050080A
ref: 19
A
SCREW,CROSS 5X8
93500050080A
€ 0.50
20
93700030250B
ref: 20
A
SCREW CROSS 3X25
93700030250B
€ 1.00
20
937000302502
ref: 20
A
SCREW CROSS 3X25
937000302502
€ 1.00
21
90310KA3711
ref: 21
A
NUT HEX 6MM
€ 1.00
21
94000060000S
ref: 21
A
NUT,HEX.,6MM
€ 1.00
21
9400106000
ref: 21
A
NUT,HEX 6MM
9400106000
€ 1.00
21
94001060000S
ref: 21
A
NUT,HEX 6MM
94001060000S
€ 1.00
21
94001060080S
ref: 21
A
NUT,HEX.,6MM
€ 1.00
21
94001062000S
ref: 21
A
NUT,HEX.,6MM
94001062000S
€ 1.00
21
9403006000
ref: 21
A
NUT,HEX 6MM
€ 1.00
22
94001100000S
ref: 22
A
NUT,HEX.,10M/M
94001100000S
€ 1.00
23
9410106000
ref: 23
A
WASHER,PLAIN, 6MM
9410106000
€ 0.50
23
9410106080
ref: 23
A
WASHER PLAIN 6MM
9410106080
€ 1.00
24
9410110200
ref: 24
A
WASHER 10MM
9410110200
€ 1.00
25
9410112000
ref: 25
A
WASHER,PLAIN,12MM
9410112000
€ 1.00
26
9411110000
ref: 26
A
SPG-WASHER 10MM
9411110000
€ 1.00
