De online onderdelen catalogus

SEAT K3-K4

CL450 SCRAMBLER 1971 K4 USA

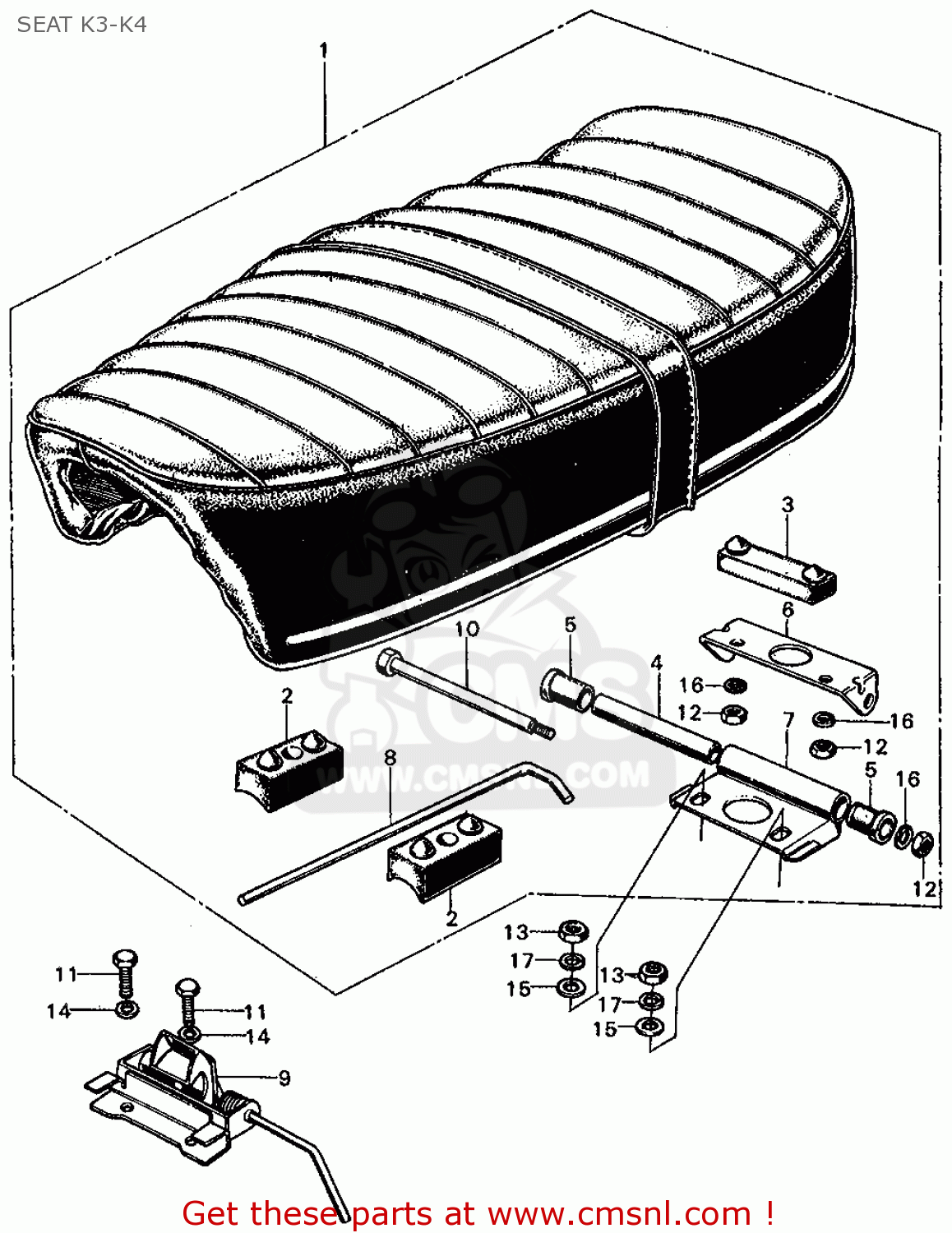

Seat k3-k4 technisch schema CL450 SCRAMBLER 1971 K4 USA

SEAT K3-K4 CL450 SCRAMBLER 1971 K4 USA
SEAT K3-K4 CL450 SCRAMBLER 1971 K4 USA
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
77200320670A
ref: 1
A
SEAT,DOUBLE
€ 1,191.50
2
77204292000
ref: 2
A
RUBBER,SEAT SETT.
77204292000
€ 7.50
3
77205286000
ref: 3
A
RUBBER B SEAT
77205286000
€ 6.00
4
77212292000
ref: 4
A
COLLAR,SET HINGE
77212292000
€ 6.50
5
77213292000
ref: 5
A
RUBBER,SEAT HINGE
77213292000
€ 2.00
6
77214292000B
ref: 6
A
PLATE,SEAT HINGE
77214292000B
€ 19.00
7
77215292010B
ref: 7
A
BRACKET,SEAT
77215292010B
€ 22.00
8
77216292000
ref: 8
A
BAR,SEAT STOPPER
77216292000
€ 7.00
9
77230292000
ref: 9
A
CATCH ASSY,SEAT
77230292000
€ 25.50
10
90101292000
ref: 10
A
BOLT,SEAT HING
90101292000
€ 5.00
11
9200006012
ref: 11
A
BOLT,HEX 6X12
9200006012
€ 1.00
11
9210106012
ref: 11
A
BOLT,HEX.,6X12
9210106012
€ 1.00
11
92101060120A
ref: 11
A
BOLT,HEX.,6X12
92101060120A
€ 1.00
12
90310KA3711
ref: 12
A
NUT HEX 6MM
€ 1.00
12
94000060000S
ref: 12
A
NUT,HEX.,6MM
€ 1.00
12
9400106000
ref: 12
A
NUT,HEX 6MM
9400106000
€ 1.00
12
94001060000S
ref: 12
A
NUT,HEX 6MM
94001060000S
€ 1.00
12
94001060080S
ref: 12
A
NUT,HEX.,6MM
€ 1.00
12
94001062000S
ref: 12
A
NUT,HEX.,6MM
94001062000S
€ 1.00
12
9403006000
ref: 12
A
NUT,HEX 6MM
€ 1.00
14
9410106000
ref: 14
A
WASHER,PLAIN, 6MM
9410106000
€ 0.50
14
9410106080
ref: 14
A
WASHER PLAIN 6MM
9410106080
€ 1.00
15
9410108000
ref: 15
A
WASHER,PLAIN,8MM
9410108000
€ 1.00
16
9411106000
ref: 16
A
WASHER,SPRING,6MM
9411106000
€ 1.00
17
9411108000
ref: 17
A
SPG-WASHER 8MM
9411108000
€ 1.00
