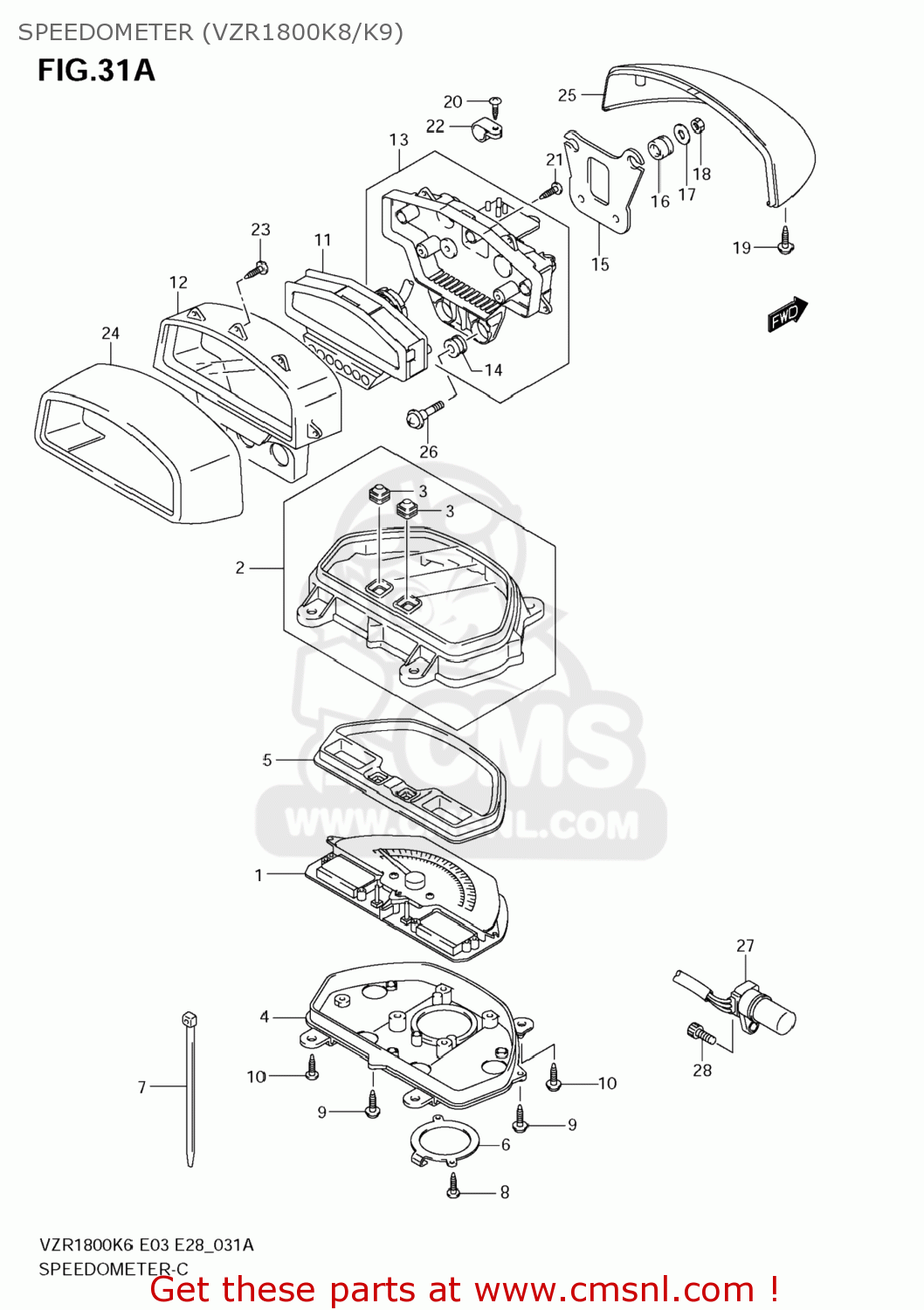

SPEEDOMETER (VZR1800K8/K9)

VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

Speedometer (vzr1800k8/k9) スキーマ VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

SPEEDOMETER (VZR1800K8/K9) VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

価格は EUR 単位です

参照

パーツ番号

説明

量

1-1

3412048G50
参照: 1-1

SPEEDOMETER

€ 434.00

1-2

3412048G40
参照: 1-2

SPEEDOMETER

€ 909.50

2

3415048G00
参照: 2

UPR CASE ASSY

€ 73.50

3

3412432F00
参照: 3

RUBBER,SWITCH

€ 3.50

4

3411148G40
参照: 4

LWR CASE

€ 49.50

5

3412548G00
参照: 5

REFLECTOR ASSY

€ 41.50

6

3495048G00
参照: 6

BRACKET

€ 14.50

7

3419248G00
参照: 7

CLAMP

€ 10.00

8

3418309F00
参照: 8

SCREW(3X12)

€ 2.00

9

3414903G00
参照: 9

SCREW(3X14)

€ 3.50

10

035410516A
参照: 10

SCREW

€ 1.00

11

3422048G10
参照: 11
34220-48G11

TACHOMETER ASSY

€ 888.50

12

3425048G00
参照: 12

UPR CASE ASSY

€ 99.50

13

3421148G10
参照: 13

LWR CASE ASSY

€ 82.50

14

3495533E00
参照: 14

CUSHION,METER

€ 3.00

15

3429648G00
参照: 15

BRACKET

€ 47.50

16

3495548G00
参照: 16

CUSHION

€ 7.50

17

0916005013
参照: 17

WASHER(5.2X16X1)

€ 1.00

18

0831000057
参照: 18

NUT

€ 1.50

19

3414917E10
参照: 19

SCREW(4X14)

€ 4.00

20

035411412A
参照: 20

SCREW

€ 1.50

21

3414903G00
参照: 21

SCREW(3X14)

€ 3.50

22

3419803A50
参照: 22

CLAMP

€ 4.00

23

3418348G00
参照: 23

SCREW(2.3X10.5)

€ 6.00

24

3425648G10
参照: 24

UPR COVER

€ 84.50

25

3425748G00
参照: 25

LWR COVER

€ 181.50

26

3414948G00
参照: 26

SCREW,TACHOMETER

€ 5.50

27

3499048G00
参照: 27

SENSOR,SPEED

€ 88.50

28

071300616A
参照: 28
07130-0616B

BOLT

€ 2.50
