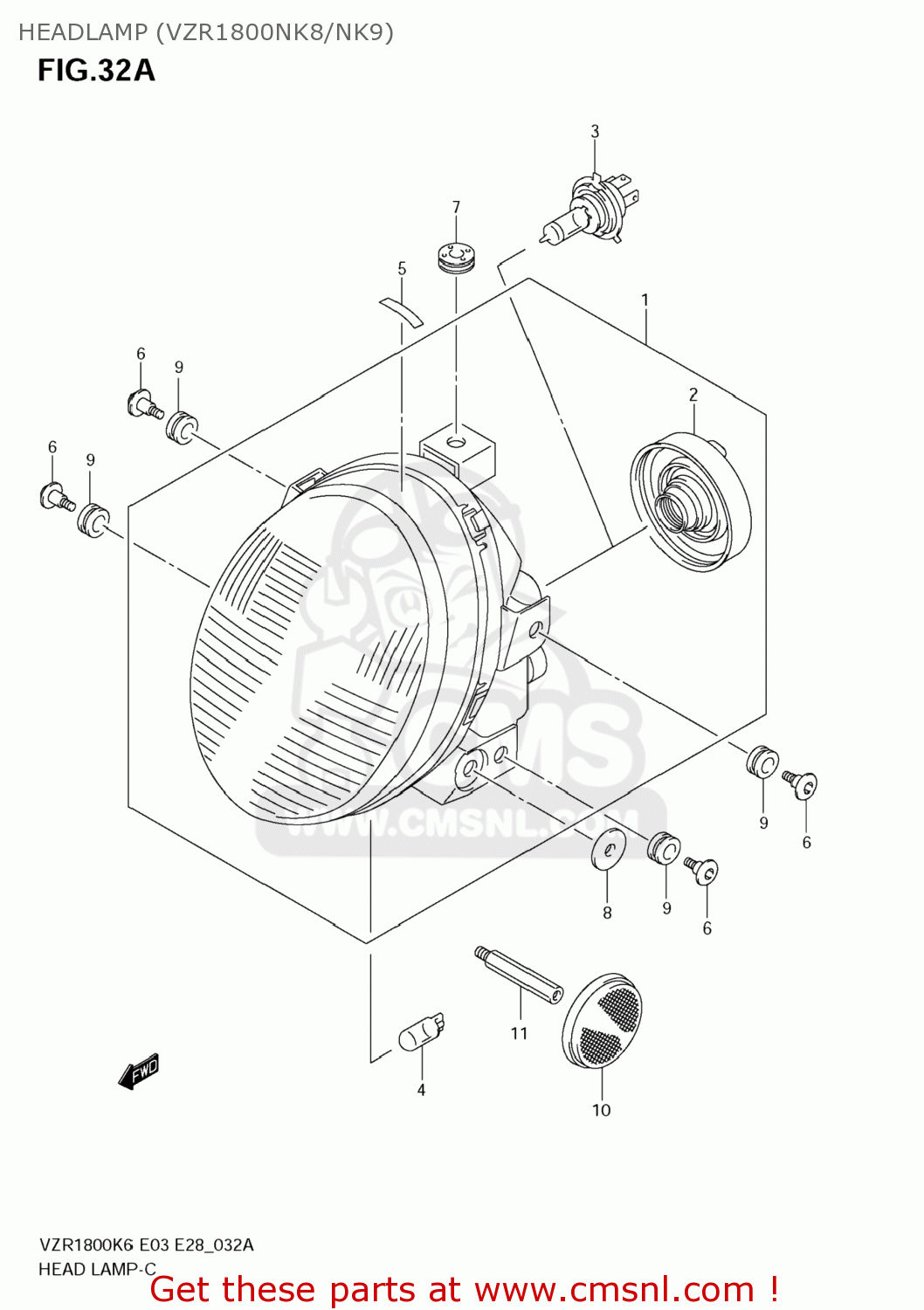

HEADLAMP (VZR1800NK8/NK9)

VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

Headlamp (vzr1800nk8/nk9) スキーマ VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

HEADLAMP (VZR1800NK8/NK9) VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)
HEADLAMP (VZR1800NK8/NK9) VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)
価格は EUR 単位です
参照
パーツ番号
説明
量
1
3510048GB0999
参照: 1
HEADLAMP ASSY
3510048GB0999
€ 415.50
2
3517314G00
参照: 2
COVER
3517314G00
€ 12.00
3
0947112060
参照: 3
BULB(12V60/55W,H4)
0947112060
€ 7.50
4
0947112216
参照: 4
BULB(12V5W)
0947112216
€ 4.00
5
9444306G00
参照: 5
TAPE(6X25X0.13)
9444306G00
€ 2.00
6
0913906126
参照: 6
SCREW(6X20)
0913906126
€ 3.50
7
0932008028
参照: 7
CUSHION
0932008028
€ 2.00
8
0932006026
参照: 8
CUSHION
0932006026
€ 2.50
9
0932009501
参照: 9
CUSHION
0932009501
€ 1.50
10
3595014A10
参照: 10
35950-14A11
REFLECTOR,REFLEX
3595014A10
€ 12.50
11
0911906104
参照: 11
BOLT
0911906104
€ 9.00
