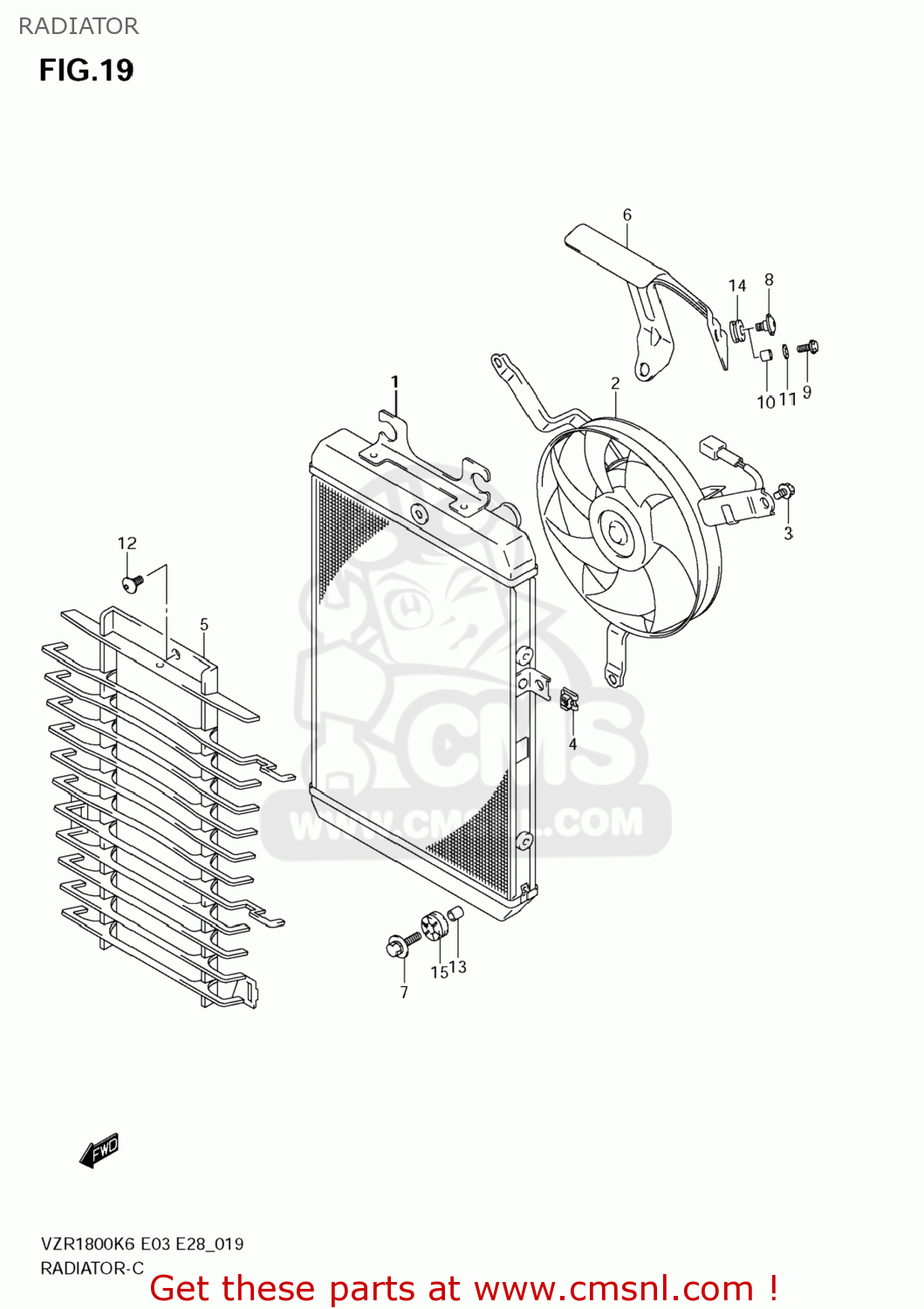

RADIATOR

VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

Radiator スキーマ VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

RADIATOR VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)
RADIATOR VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)
価格は EUR 単位です
参照
パーツ番号
説明
量
1
1771048G00
参照: 1
RADIATOR ASSY,WATER
€ 699.00
2
1780048G00
参照: 2
FAN ASSY,RADIATOR
€ 524.50
3
1771140F00
参照: 3
BOLT,FAN ASSY
1771140F00
€ 3.50
4
1771240F00
参照: 4
NUT,FAN ASSY
1771240F00
€ 3.50
5
1776148G00
参照: 5
GUARD,RADIATOR
1776148G00
€ 35.50
6
1777148G10
参照: 6
SHIELD,RADIATOR HEAT
€ 82.50
7
0911806097A05
参照: 7
BOLT (6X25)
€ 2.00
8
0913906124
参照: 8
SCREW(6X12)
0913906124
€ 3.00
9
015470616B
参照: 9
BOLT
015470616B
€ 2.00
10
0918006001
参照: 10
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
11
0916006152
参照: 11
WASHER(6.5X20X1.2)
0916006152
€ 1.50
12
0913906144
参照: 12
SCREW(6X12)
0913906144
€ 2.50
13
0918006290A05
参照: 13
09180-06290
SPACER (6.5X10
€ 1.50
14
0932008066
参照: 14
CUSHION
0932008066
€ 6.00
15
0932010051
参照: 15
CUSHION
0932010051
€ 3.00
