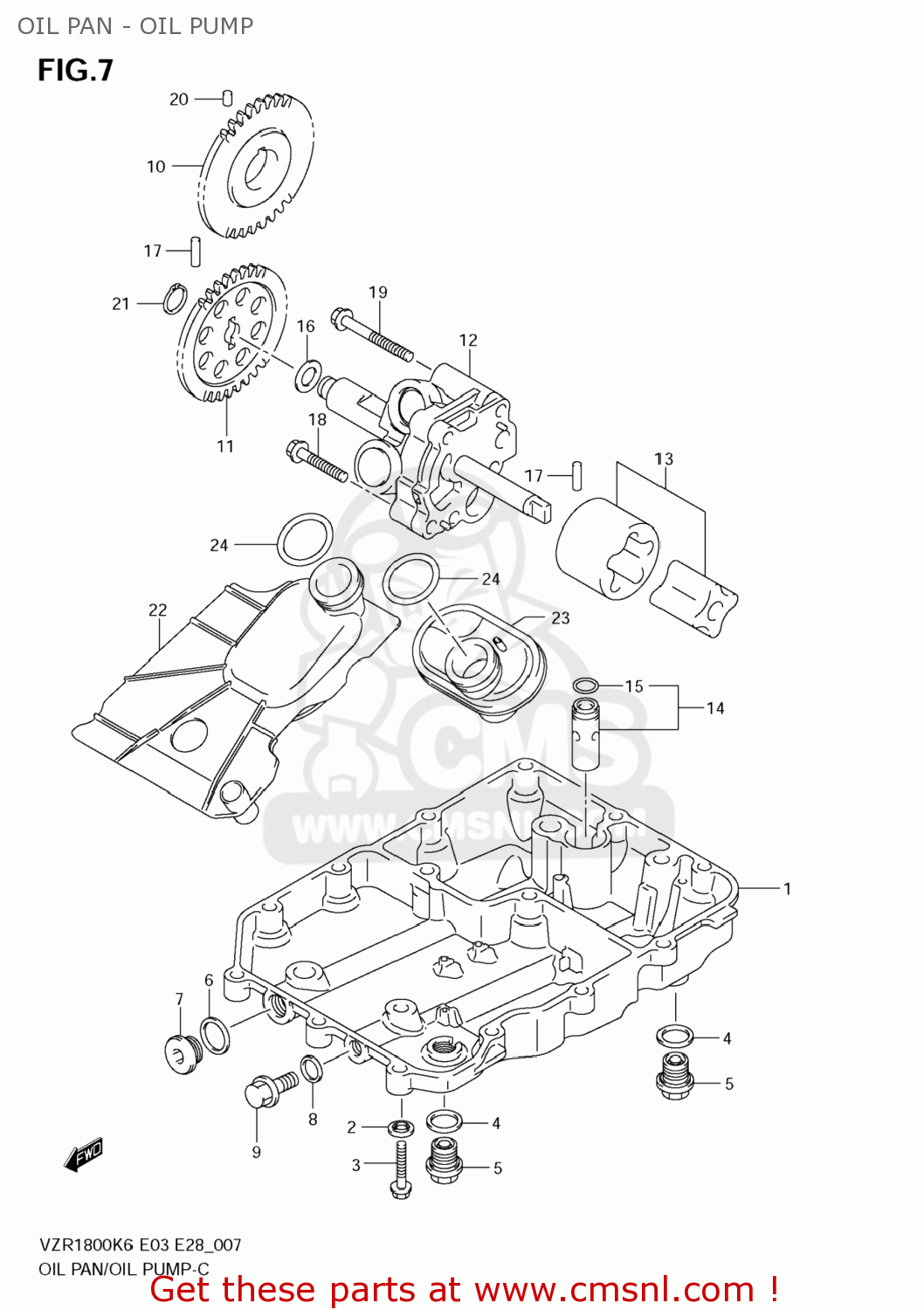

OIL PAN - OIL PUMP

VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

Oil pan - oil pump スキーマ VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

OIL PAN - OIL PUMP VZR1800 BOULEVARD M109R 2006 (K6) USA (E03)

価格は EUR 単位です

参照

パーツ番号

説明

量

1

1151148G00
参照: 1
11511-48G01

PAN,OIL

€ 196.50

2

0916806023
参照: 2

GASKET(5.8X13X1.2) (NAS)

€ 1.50

3

015470630A
参照: 3

BOLT

€ 2.00

4

0916814002
参照: 4
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.00

5

0924714036A05
参照: 5
09247-14036

PLUG(14X20)

€ 5.00

6

0916816002
参照: 6

GASKET(16X22X2) (NAS)

€ 1.50

7

0924816012A05
参照: 7

PLUG. OIL GALLE

€ 3.50

8

0916810002
参照: 8

GASKET(10X14X3.6) (NAS)

€ 1.50

9

0924710008
参照: 9

PLUG(10X12)

€ 2.50

10

1632148G00
参照: 10

GEAR,OIL PUMP DRIVE

€ 45.50

11

1633148G00
参照: 11

GEAR,OIL PUMP DRIVEN

€ 45.50

12

1640048G00
参照: 12

PUMP ASSY,ENGINE OIL

€ 130.50

13

1641048G00
参照: 13

ROTOR SET,OIL PUMP

€ 38.50

14

1644024F00
参照: 14

VALVE ASSY,OIL RELIEF(7K)

€ 37.00

15

0928013004
参照: 15

O RING(D:1.9,ID:13)

€ 2.00

16

0918110158
参照: 16

SHIM(10X18X0.5)

€ 2.50

17

0926104009
参照: 17

PIN(4X15.8)

€ 1.50

18

015470635A
参照: 18

BOLT

€ 2.50

19

015470655A
参照: 19

BOLT

€ 2.50

20

0422104069
参照: 20

PIN

€ 1.50

21

0833131106
参照: 21
08331-3110A

CIRCLIP,10MM

€ 1.50

22

1653048G00
参照: 22

STRAINER,ENGINE OIL FR

€ 24.50

23

1652048G00
参照: 23

STRAINER,ENGINE OIL RR

€ 18.50

24

0928022016
参照: 24

O RING(D:3.7,ID:21.7)

€ 4.50
