OIL PUMP

GL1500 GOLDWING 1988 (J) USA CALIFORNIA

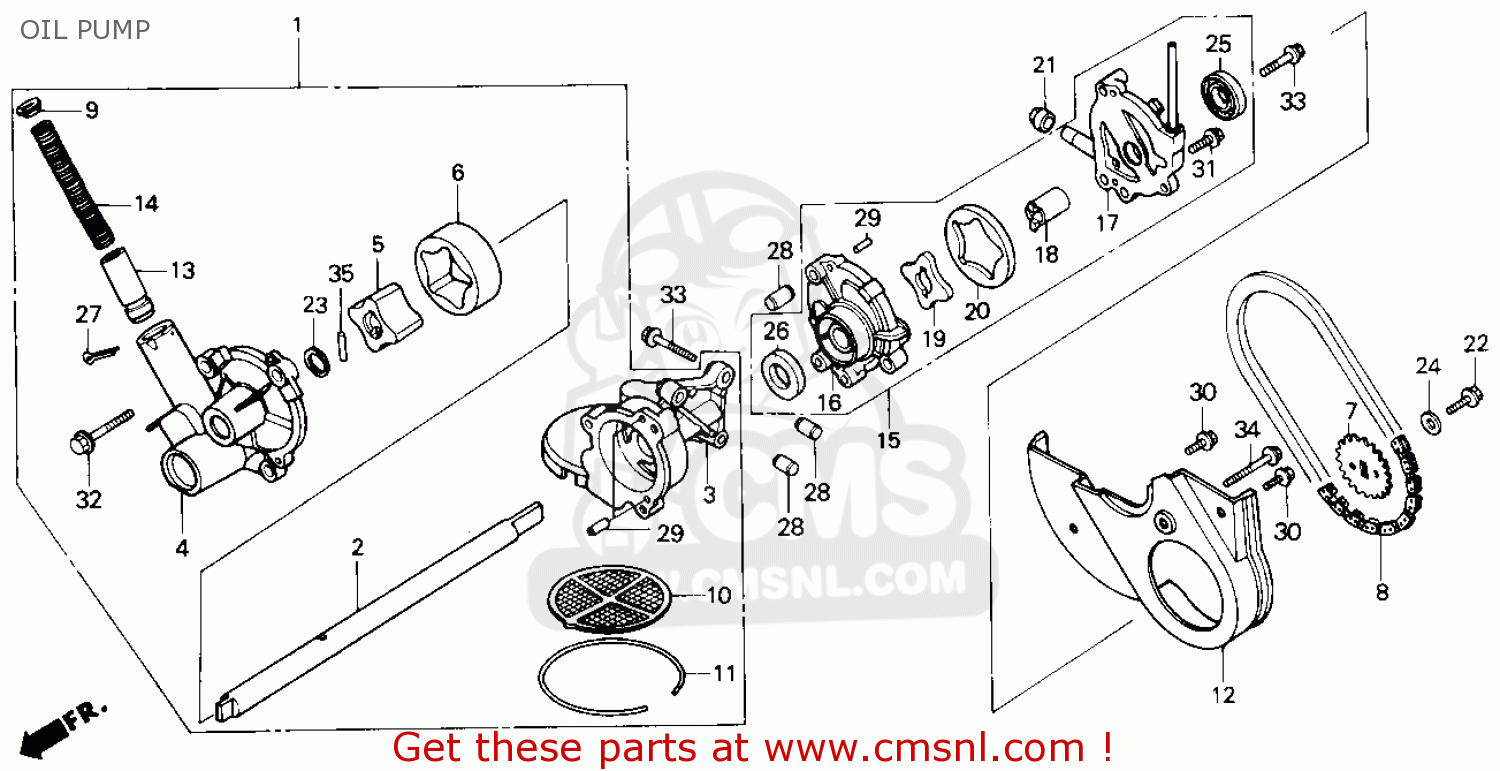

Oil pump diagramma GL1500 GOLDWING 1988 (J) USA CALIFORNIA

OIL PUMP GL1500 GOLDWING 1988 (J) USA CALIFORNIA
OIL PUMP GL1500 GOLDWING 1988 (J) USA CALIFORNIA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
15110MN5010
rif: 1
PUMP ASSY,OIL
€ 361.00
1
15110MN5020
rif: 1
PUMP ASSY,OIL
€ 361.00
1
15110MN5030
rif: 1
PUMP ASSY,OIL
€ 361.00
2
15111MN5000
rif: 2
SHAFT,OIL PUMP
€ 29.50
2
15111MN5010
rif: 2
SHAFT,OIL PUMP
€ 29.50
2
15111MN5020
rif: 2
SHAFT,OIL PUMP
15111MN5020
€ 29.50
3
15112MN5000
rif: 3
BODY,OIL PUMP
€ 72.50
4
15113MN5000
rif: 4
COVER,OIL PUMP
15113MN5000
€ 68.50
5
15124MJ0000
rif: 5
ROTOR,INNER
15124MJ0000
€ 19.50
6
15125MJ0000
rif: 6
ROTOR,OUTER
15125MJ0000
€ 19.50
7
15134MN5000
rif: 7
SPRKT.OIL PUMP DR
€ 26.00
8
15135MN5003
rif: 8
CHAIN,OIL PUMP DR
15135MN5003
€ 67.50
9
15142371000
rif: 9
SEAT,VALVE
15142371000
€ 3.50
10
15150MG7000
rif: 10
SCREEN,OIL PUMP
€ 25.50
11
15160PA5003
rif: 11
RING,SNAP,92MM
15160PA5003
€ 6.00
12
15171MN5000
rif: 12
GUIDE,OIL PUMP CH
€ 61.00
13
15231MN5010
rif: 13
VALVE,RELIEF
€ 8.00
14
15232MN5000
rif: 14
SPRING,RELIEF VAL
€ 4.00
15
15240MN5000
rif: 15
PUMP ASSY,SCAVENG
€ 149.50
15
15240MN5010
rif: 15
PUMP ASSY,SCAVENG
€ 149.50
16
15241MN5000
rif: 16
BODY,SCAVENGE OIL
€ 59.00
16
15241MN5010
rif: 16
BODY,SCAVENGE OIL
€ 59.00
17
15242MN5000
rif: 17
COVER COMP,SCAVEN
€ 17.00
17
15242MN5010
rif: 17
COVER COMP,SCAVEN
€ 17.00
18
15243MN5000
rif: 18
COLLAR,OIL PUMP
€ 7.50
18
15243MN5010
rif: 18
COLLAR,OIL PUMP
€ 7.50
19
15244MN5000
rif: 19
ROTOR,INNER
15244MN5000
€ 21.50
20
15245MN5000
rif: 20
ROTOR,OUTER
15245MN5000
€ 28.50
21
15247MN5000
rif: 21
GROMMET,SCAVNGE O
15247MN5000
€ 2.50
22
90021KE8010
rif: 22
BOLT HEX,6X16
90021KE8010
€ 3.00
23
90456MC7000
rif: 23
WASHER,THRUST12MM
90456MC7000
€ 4.00
24
90488MB0000
rif: 24
WASHER, 6X2.3
90488MB0000
€ 2.50
27
9420130250
rif: 27
PIN,SPLIT,3X25
9420130250
€ 1.00
27
9420130300
rif: 27
PIN COTTER 3.0MM
9420130300
€ 1.00
27
9420130400
rif: 27
PIN COTTER 3.0MM
9420130400
€ 1.50
27
9420130450
rif: 27
PIN,C0TTER 30X45
9420130450
€ 1.00
29
9430305080
rif: 29
DOWEL,PIN,5X8
9430305080
€ 1.50
30
957010601408
rif: 30
BOLT,FLANGE,6X14
957010601408
€ 1.00
31
957000601800
rif: 31
BOLT,FLANGE,6X18
957000601800
€ 1.00
31
957010601800
rif: 31
BOLT FLANGE 6X18
957010601800
€ 1.00
32
957010602200
rif: 32
BOLT,FLANGE,6X22
957010602200
€ 1.50
33
957010603208
rif: 33
BOLT,FLANGE 6X32
957010603208
€ 1.50
34
957010604508
rif: 34
BOLT,FLANGE,6X45
957010604508
€ 2.00
35
9622050178
rif: 35
ROLLER
9622050178
€ 1.00
