WIND SCREEN EXCEPT

GL1500 GOLDWING 1988 (J) USA CALIFORNIA

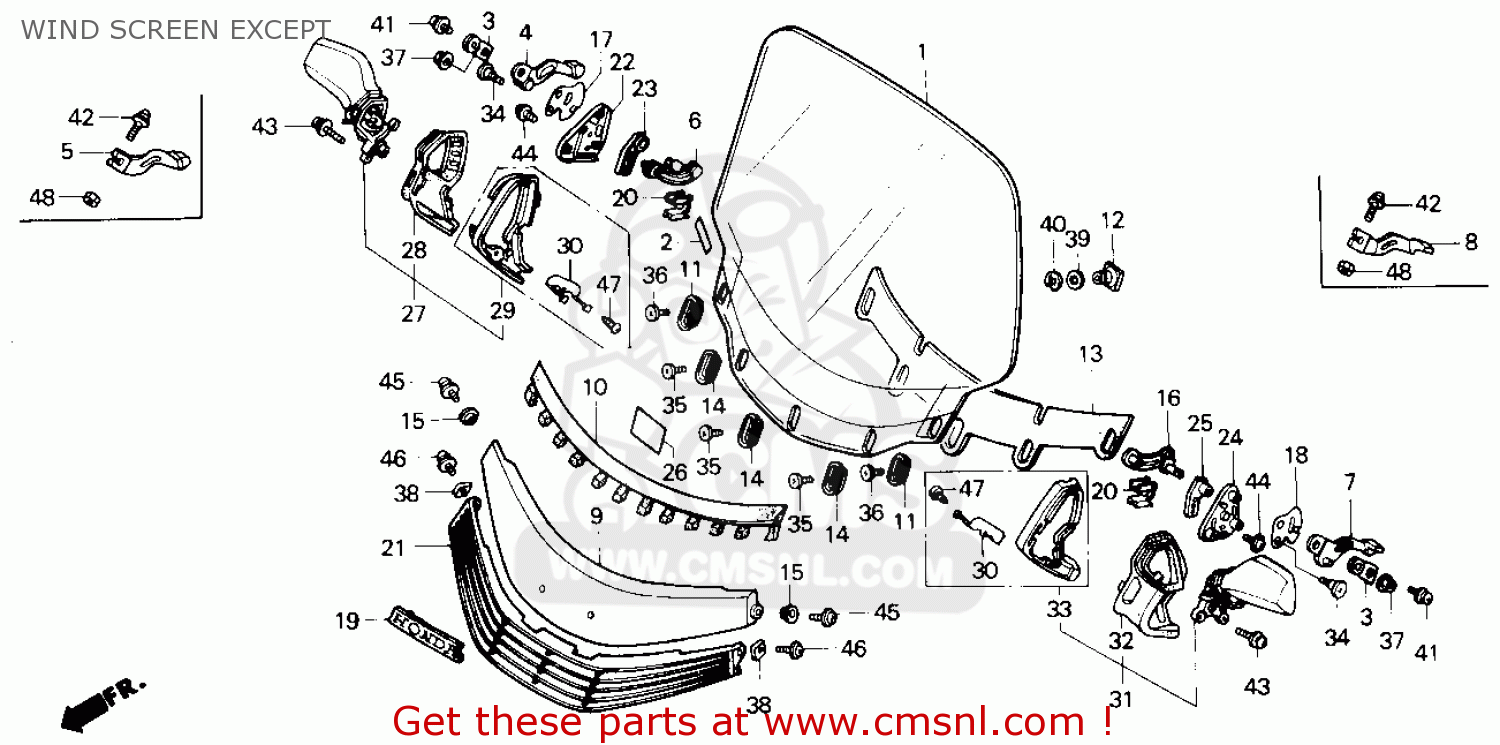

Wind screen except diagramma GL1500 GOLDWING 1988 (J) USA CALIFORNIA

WIND SCREEN EXCEPT GL1500 GOLDWING 1988 (J) USA CALIFORNIA
WIND SCREEN EXCEPT GL1500 GOLDWING 1988 (J) USA CALIFORNIA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
64100MN5000
rif: 1
SCREEN,WIND
€ 348.50
1
64130MW5000
rif: 1
SCREEN COMP WIND
€ 348.50
2
64101463891
rif: 2
LABEL,SCREEN
64101463891
€ 3.50
3
64103MN5000
rif: 3
LEVER A
64103MN5000
€ 5.00
4
64107MN5000
rif: 4
LEVER R
64107MN5000
€ 11.50
6
64108MN5000
rif: 6
TENTION PLATE COM
€ 6.00
7
64109MN5000
rif: 7
LEVER L
64109MN5000
€ 14.00
9
64110MN5000
rif: 9
GARNISH,SCREEN
64110MN5000
€ 113.00
10
64111MN5000
rif: 10
SEAL WIND SCREEN
64111MN5000
€ 36.00
11
64113MN5000
rif: 11
PLATE B,WIND SCRE
64113MN5000
€ 5.50
12
64114MG9770
rif: 12
NUT,SCREEN SET
64114MG9770
€ 6.50
13
64115MAM000
rif: 13
CUSHION,SCREEN
€ 33.50
13
64115MN5000
rif: 13
CUSHION SCREEN
€ 33.50
14
64116MN5000
rif: 14
PLATE,WIND SCREEN
64116MN5000
€ 4.50
16
64118MN5000
rif: 16
TENTION PLATE COM
64118MN5000
€ 20.00
17
64123MN5000
rif: 17
PLATE R,LEVER SID
64123MN5000
€ 3.50
18
64124MN5000
rif: 18
PLATE L LEVER SID
64124MN5000
€ 3.50
19
64125MN5000
rif: 19
EMB.,SCREEN GARNI
64125MN5000
€ 29.50
19
64125MT8000
rif: 19
EMB.,SCREEN GARNI
64125MT8000
€ 29.50
20
64219MN5000
rif: 20
CLIP,SCREEN GUIDE
64219MN5000
€ 4.50
21
64260MN5000
rif: 21
LOUVER,FR UP
64260MN5000
€ 41.00
22
64531MN5000
rif: 22
BASE R MIRROR
64531MN5000
€ 9.00
23
64532MN5000
rif: 23
PLATE,R.PIVOT
€ 7.00
24
64631MN5000
rif: 24
BASE L MIRROR
64631MN5000
€ 5.00
25
64632MN5000
rif: 25
PLATE,L.PIVOT
€ 7.00
26
87522MG9770
rif: 26
LEBEL WIND SHIELD
87522MG9770
€ 3.00
27
88110MN5000ZA
rif: 27
MIRROR A*PB-192M*
€ 311.50
27
88110MN5000ZB
rif: 27
MIRROR A*NH-215M*
€ 311.50
27
88110MN5004ZA
rif: 27
MIRROR AS*PB192M*
88110MN5004ZA
€ 311.50
27
88110MN5004ZB
rif: 27
MIRROR AS*NH215M*
88110MN5004ZB
€ 311.50
27
88110MN5000ZC
rif: 27
MIRROR A*YR-149M*
€ 311.50
27
88110MN5004ZC
rif: 27
MIRROR AS*YR149M*
€ 311.50
28
88113MN5003
rif: 28
BOOT,R.
88113MN5003
€ 49.00
29
88114MN5003ZA
rif: 29
BASE ASS*PB-192M*
88114MN5003ZA
€ 50.00
29
88114MN5003ZB
rif: 29
BASE ASS*NH-215M*
88114MN5003ZB
€ 50.00
29
88114MN5003ZC
rif: 29
BASE ASS*YR-149M*
88114MN5003ZC
€ 50.00
30
88119MN5000
rif: 30
PLATE SET
88119MN5000
€ 4.50
31
88120MN5000ZA
rif: 31
MIRROR A*PB-192M*
€ 311.50
31
88120MN5000ZB
rif: 31
MIRROR A*NH-215M*
€ 324.00
31
88120MN5004ZA
rif: 31
MIRROR AS*PB192M*
€ 311.50
31
88120MN5004ZB
rif: 31
MIRROR AS*NH215M*
€ 324.00
31
88120MN5000ZC
rif: 31
MIRROR A*YR-149M*
€ 317.50
31
88120MN5004ZC
rif: 31
MIRROR AS*YR149M*
€ 317.50
32
88123MN5003
rif: 32
BOOT,L.
88123MN5003
€ 37.00
33
88124MN5003ZA
rif: 33
BASE ASS*PB-192M*
€ 50.00
33
88124MN5003ZB
rif: 33
BASE ASS*NH-215M*
88124MN5003ZB
€ 50.00
33
88124MN5003ZC
rif: 33
BASE ASS*YR-149M*
88124MN5003ZC
€ 50.00
34
90104KT8710
rif: 34
SCREW,SPECIAL 6X8
90104KT8710
€ 3.50
35
90107MN5000
rif: 35
SCREW SCREEN SET
90107MN5000
€ 2.00
36
90107MN5000
rif: 36
SCREW SCREEN SET
90107MN5000
€ 2.00
37
90301MG8000
rif: 37
NUT,FLANGE,5MM
90301MG8000
€ 2.50
38
90305MN5000
rif: 38
NUT,PLATAE 5MM
90305MN5000
€ 3.00
39
90401KF0003
rif: 39
WASHER
€ 2.50
39
90501MT2000
rif: 39
WASHER
90501MT2000
€ 2.50
40
90601473003
rif: 40
E-RING,8MM
90601473003
€ 3.00
41
938910400808
rif: 41
WASHER, SCREW 4X8
938910400808
€ 1.00
43
938910502808
rif: 43
SCREW,WASH,5X28
938910502808
€ 0.50
44
938930501208
rif: 44
SCREW-WASH.,5X12
938930501208
€ 1.50
45
938940501208
rif: 45
SCREW-WASH.,5X12
938940501208
€ 1.00
46
938940501607
rif: 46
SCREW WASHER 5X16
938940501607
€ 1.00
47
9390124280
rif: 47
SCREW,TAPPING,4X10
9390124280
€ 1.00
