CHAMBER PROTECTOR

GL1500 GOLDWING 1988 (J) USA CALIFORNIA

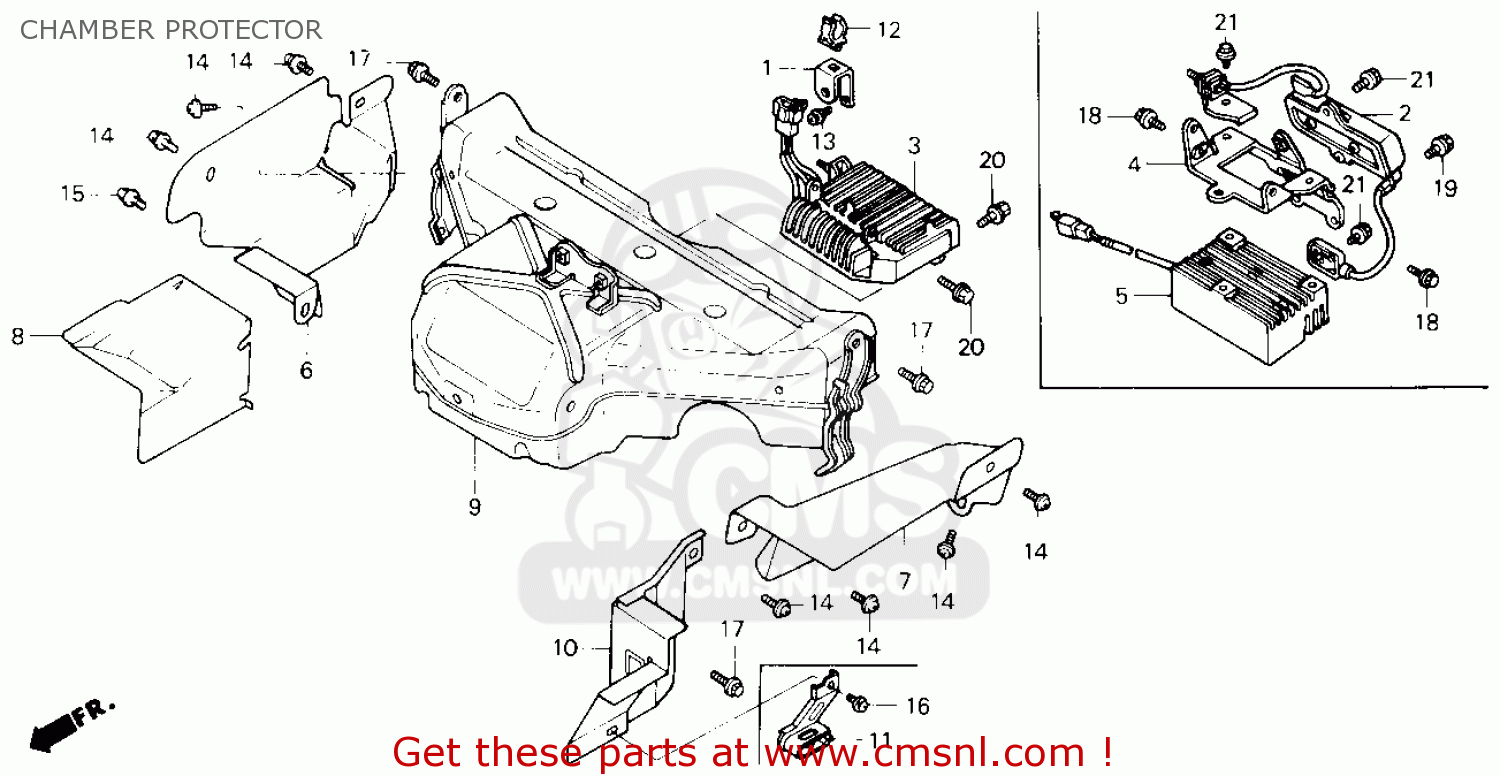

Chamber protector diagramma GL1500 GOLDWING 1988 (J) USA CALIFORNIA

CHAMBER PROTECTOR GL1500 GOLDWING 1988 (J) USA CALIFORNIA
CHAMBER PROTECTOR GL1500 GOLDWING 1988 (J) USA CALIFORNIA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
2
36280MN5005
rif: 2
RESISTOR ASSY.,RE
€ 151.00
4
36285MN5005
rif: 4
STAY,RVS SET
€ 17.50
5
36300MN5005
rif: 5
POWER CONT,UNIT(R
€ 495.00
6
50270MN5000
rif: 6
PROTR.,R HEAT
€ 9.00
7
50271MN5000
rif: 7
PROTR.,L HEAT
€ 7.00
8
50272MN5000
rif: 8
GUARD FR R HEAT
€ 8.50
9
50273MN5000
rif: 9
PROTR.,CHAMBER UP
€ 57.50
9
50273MT2000
rif: 9
PRCTR.,CHAMBER UP
€ 57.50
10
50274MN5000
rif: 10
GUARD FR,L HEAT
50274MN5000
€ 18.50
11
50275MN5000
rif: 11
CLAMPER,DRAIN TUB
50275MN5000
€ 8.50
14
938920501208
rif: 14
SCREW-WASH.,5X12
938920501208
€ 1.00
15
938920502008
rif: 15
SCREW-WASH.,5X20
938920502008
€ 1.50
16
938930501208
rif: 16
SCREW-WASH.,5X12
938930501208
€ 1.50
17
957010601008
rif: 17
BOLT,FLANGE,6X10
957010601008
€ 1.50
18
957010601008
rif: 18
BOLT,FLANGE,6X10
957010601008
€ 1.50
19
957010601208
rif: 19
BOLT,FLANGE,6X12
957010601208
€ 1.00
21
957010601208
rif: 21
BOLT,FLANGE,6X12
957010601208
€ 1.00
21
958010601218
rif: 21
BOLT,FLANGE 6X12
€ 1.00
