FRONT FENDER

GL1500 GOLDWING 1988 (J) USA CALIFORNIA

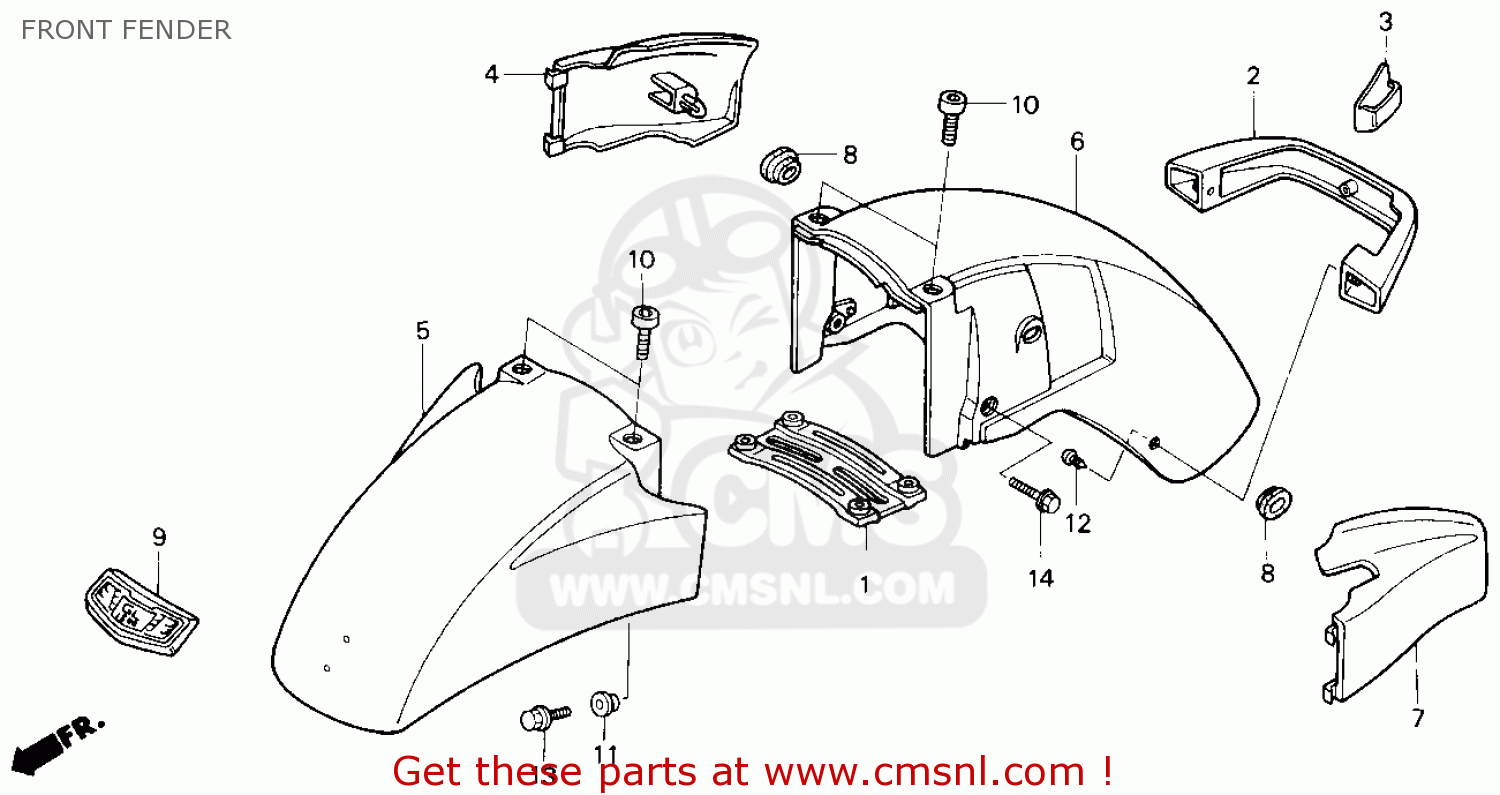

Front fender diagramma GL1500 GOLDWING 1988 (J) USA CALIFORNIA

FRONT FENDER GL1500 GOLDWING 1988 (J) USA CALIFORNIA
FRONT FENDER GL1500 GOLDWING 1988 (J) USA CALIFORNIA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
61101MN5000
rif: 1
STAY,FENDER
61101MN5000
€ 46.50
2
61102MN5000
rif: 2
GUARD,FENDER
61102MN5000
€ 57.00
2
61102MN5000ZA
rif: 2
GUARD,FEND*TYPE1*
€ 57.00
2
61102MW5000ZC
rif: 2
GUARD,FEND*TYPE1*
61102MW5000ZC
€ 57.00
3
61103MN5000
rif: 3
GUAID,CABLE
61103MN5000
€ 6.00
4
61104MN5000ZA
rif: 4
COVER,R.*PB-192M*
€ 75.50
4
61104MN5000ZB
rif: 4
COVER,R.*NH-215M*
61104MN5000ZB
€ 50.00
4
61104MN5000ZC
rif: 4
COVER,R.*YR-149M*
61104MN5000ZC
€ 482.00
5
61105MN5000ZA
rif: 5
FRONT FE*PB-192M*
61105MN5000ZA
€ 1,102.50
5
61105MN5000ZB
rif: 5
FENDER A*NH-215M*
61105MN5000ZB
€ 231.50
5
61105MN5000ZC
rif: 5
FENDER A*YR-149M*
€ 231.50
6
61106MN5000ZA
rif: 6
FRONT FE*PB-192M*
61106MN5000ZA
€ 223.00
6
61106MN5000ZB
rif: 6
FENDER B*NH-215M*
€ 223.00
6
61106MN5000ZC
rif: 6
FENDER B*YR-149M*
€ 223.00
7
61114MN5000ZA
rif: 7
COVER,L.*PB-192M*
61114MN5000ZA
€ 75.50
7
61114MN5000ZB
rif: 7
COVER,L.*NH-215M*
61114MN5000ZB
€ 75.50
7
61114MN5000ZC
rif: 7
COVER,L.*YR-149M*
61114MN5000ZC
€ 482.00
8
64266MG9770
rif: 8
GROM,SPEAKER PNL.
64266MG9770
€ 4.00
9
87124MN5000
rif: 9
EMBLEM,FR.FENDER
87124MN5000
€ 38.00
9
87124MT8000
rif: 9
EMB.FR.FENDER
87124MT8000
€ 38.00
10
90124MN5000
rif: 10
BOLT SOCKET 7X17
90124MN5000
€ 4.50
11
90555197890
rif: 11
WASHER,FLANGE 6X3
90555197890
€ 2.50
12
9390324220
rif: 12
SCREW,TAPPING,4X10
9390324220
€ 0.50
13
957010601008
rif: 13
BOLT,FLANGE,6X10
957010601008
€ 1.50
14
957010601608
rif: 14
BOLT,FLANGE,6X16
957010601608
€ 1.00
