RECOIL STARTER

KLF185-A1 BAYOU185 1985

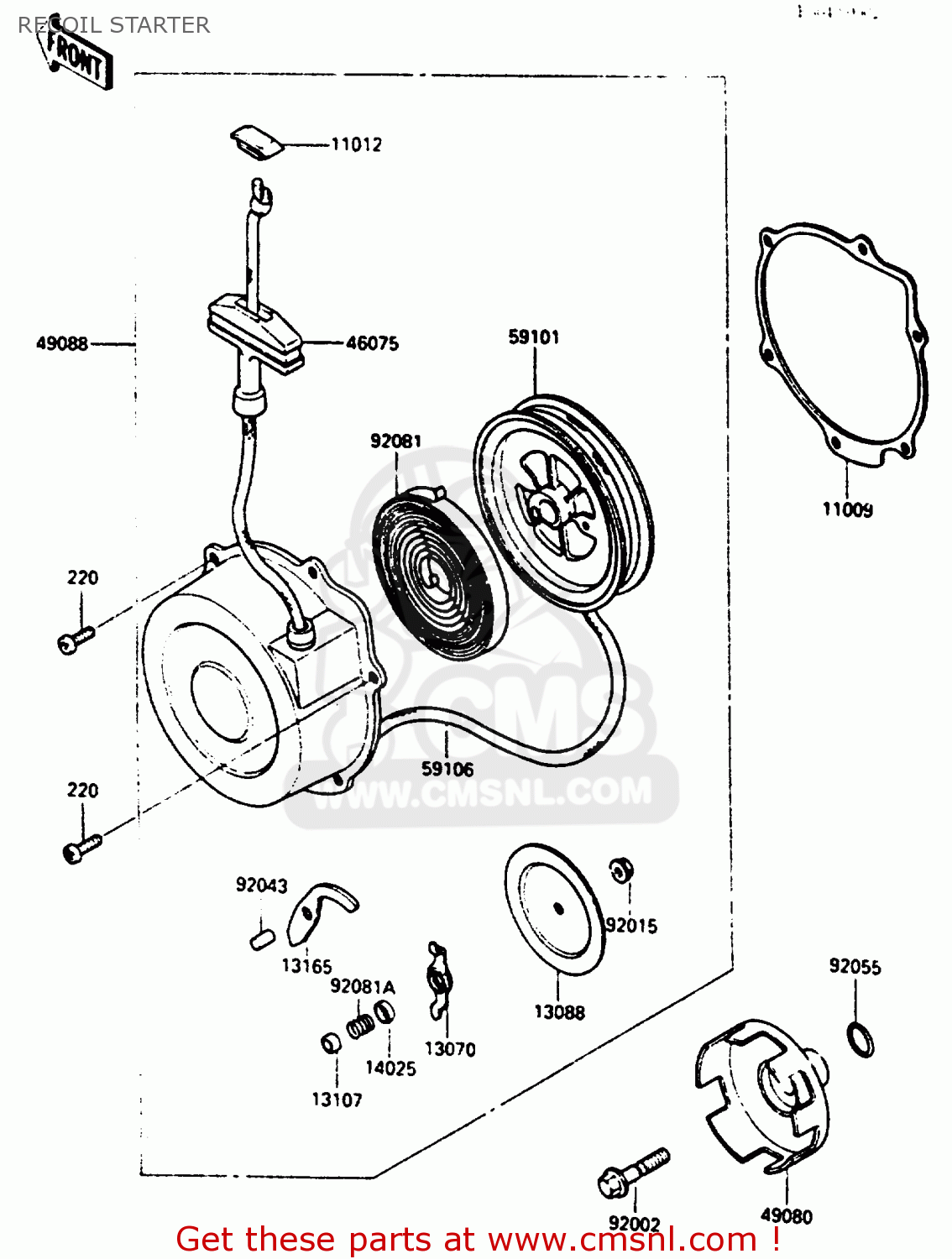

Recoil starter diagrama KLF185-A1 BAYOU185 1985

RECOIL STARTER KLF185-A1 BAYOU185 1985
RECOIL STARTER KLF185-A1 BAYOU185 1985
los precios están en EUR
ref
parte #
descripción
cantidad
11009
110091394
ref: 11009
GASKET,RECOIL STARTER (MCA)
110091394
€ 5.50
11012
110121420
ref: 11012
CAP,RECOIL GRIP
110121420
€ 3.50
13070
130701123
ref: 13070
GUIDE,RECOIL
130701123
€ 2.50
13088
130881059
ref: 13088
PLATE-FRICTION,RECOIL (NAS)
130881059
€ 6.00
13107
131071129
ref: 13107
SHAFT,RECOIL
131071129
€ 2.50
13165
131651110
ref: 13165
PAWL,RECOIL
131651110
€ 9.00
14024
140251966
ref: 14024
COVER,RECOIL
140251966
€ 2.00
46075
460751057
ref: 46075
GRIP,RECOIL
€ 15.50
49080
490801051
ref: 49080
PULLEY-STARTING
490801051
€ 32.00
49088
490881051
ref: 49088
STARTER-RECOIL
€ 163.50
59101
591011105
ref: 59101
REEL
591011105
€ 42.50
59106
591061102
ref: 59106
ROPE,RECOIL
€ 37.50
92002
920021296
ref: 92002
BOLT,10X40
920021296
€ 6.50
92015
920151464
ref: 92015
NUT,6MM
920151464
€ 2.50
92043
920431259
ref: 92043
PIN,RECOIL
920431259
€ 2.00
92055
920551255
ref: 92055
RING-O
920551255
€ 11.50
92081
920811772
ref: 92081
SPRING,RECOIL
920811772
€ 37.00
92081A
920811773
ref: 92081A
SPRING,PAWL
920811773
€ 2.00
220
220C0614
ref: 220
SCREW-PAN-CROS,6X14,B
220C0614
€ 1.50
