FRAME

KLF185-A1 BAYOU185 1985

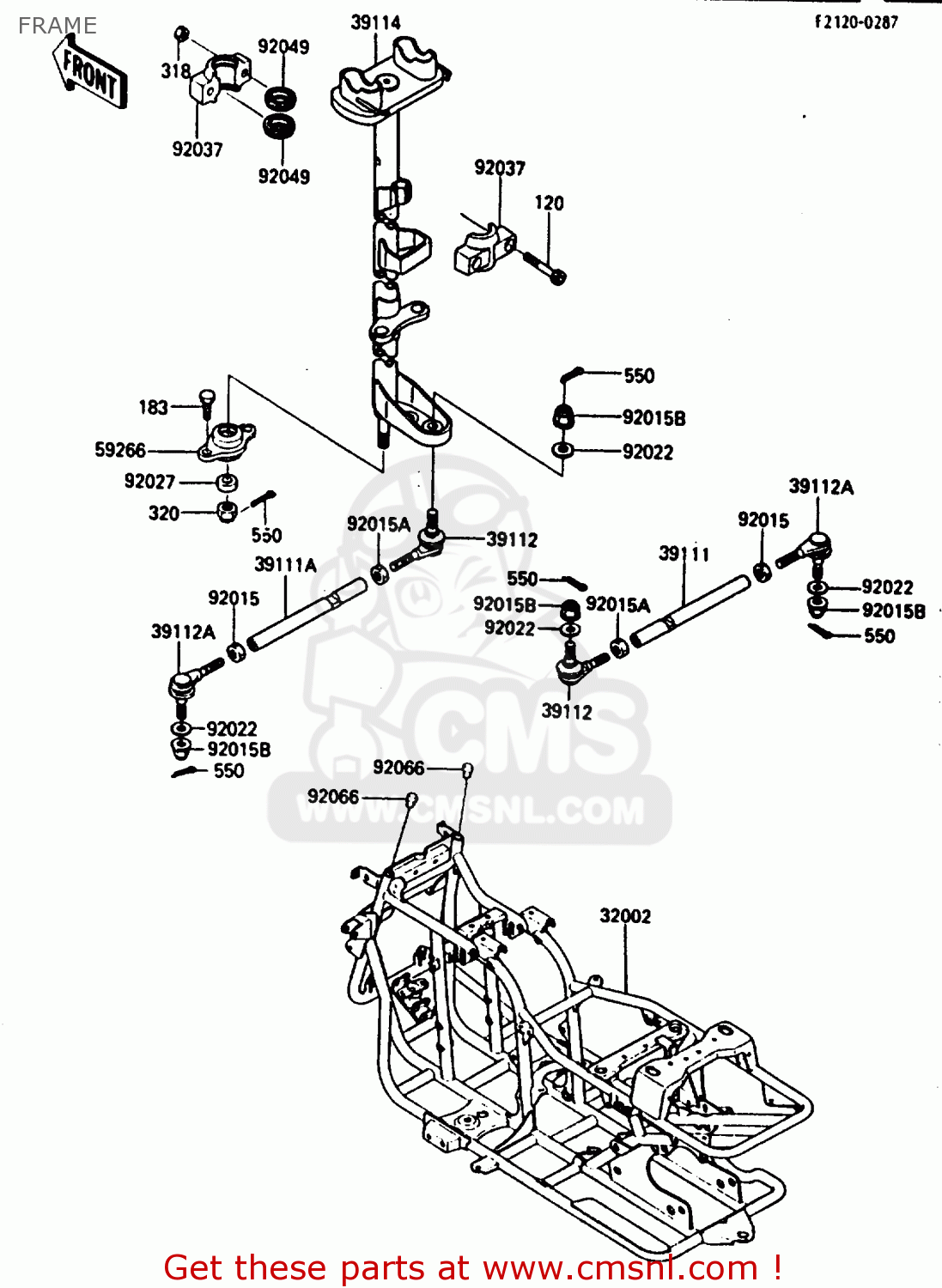

Frame diagrama KLF185-A1 BAYOU185 1985

FRAME KLF185-A1 BAYOU185 1985
FRAME KLF185-A1 BAYOU185 1985
los precios están en EUR
ref
parte #
descripción
cantidad
32002
320021767
ref: 32002
FRAME-COMP
€ 884.50
39111
391111054
ref: 39111
ROD-TIE,RH
391111054
€ 14.00
39111A
391111061
ref: 39111A
ROD-TIE,LH
€ 14.00
39112
391121051
ref: 39112
RODEND-TIE
391121051
€ 65.50
39112A
391121052
ref: 39112A
RODEND-TIE
391121052
€ 35.50
39114
391141051
ref: 39114
SHAFT-COMP-STRG
€ 113.50
59266
592661066
ref: 59266
JOINT-BALL
592661066
€ 110.50
92015
920151460
ref: 92015
NUT,LOCK,10MM
920151460
€ 3.50
92015A
920151494
ref: 92015A
NUT,LOCK,10MM
920151494
€ 4.00
92015B
920151502
ref: 92015B
NUT,FLANGED,10MM
920151502
€ 6.50
92022
920221137
ref: 92022
WASHER,10.5X24X1.6
920221137
€ 2.50
92027
920271817
ref: 92027
COLLAR,10X21.3X7
920271817
€ 9.00
92037
920371572
ref: 92037
CLAMP,STEERING SHAFT
€ 35.50
92049
920491199
ref: 92049
SEAL-OIL,MY25X33X8
920491199
€ 6.00
92066
920661220
ref: 92066
PLUG
920661220
€ 3.00
120
120P0845
ref: 120
BOLT,ALLEN,8X45
120P0845
€ 3.00
183
183G0822
ref: 183
BOLT-UPSET-WS-SMALL
183G0822
€ 3.00
318
318B0800
ref: 318
NUT,8MM
318B0800
€ 0.50
320
320H1000
ref: 320
NUT-CASTLE
320H1000
€ 4.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
