CLUTCH

KLF185-A1 BAYOU185 1985

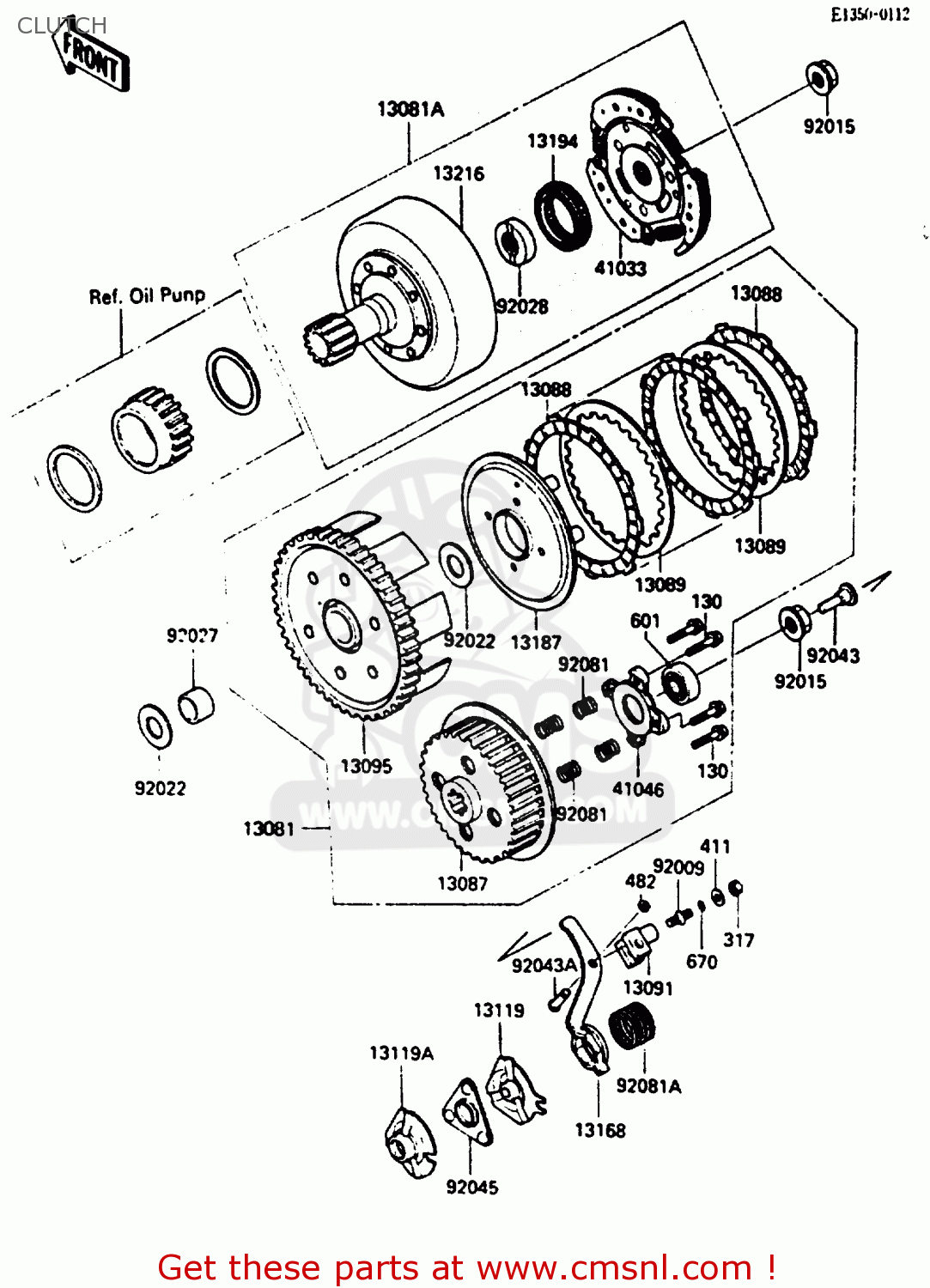

Clutch diagrama KLF185-A1 BAYOU185 1985

CLUTCH KLF185-A1 BAYOU185 1985
CLUTCH KLF185-A1 BAYOU185 1985
los precios están en EUR
ref
parte #
descripción
cantidad
13081
130811205
ref: 13081
CLUTCH-ASSY
€ 218.50
13081A
130811209
ref: 13081A
CLUTCH-ASSY,FR,ENGINE
€ 490.00
13087
130871054
ref: 13087
HUB-CLUTCH
€ 39.50
13088
130881016
ref: 13088
PLATE-FRICTION (NAS)
130881016
€ 9.50
13089
130891012
ref: 13089
PLATE-CLUTCH (NAS)
130891012
€ 7.50
13091
130911341
ref: 13091
HOLDER,CLUTCH RELEASE
130911341
€ 31.50
13095
130951134
ref: 13095
HOUSING-COMP-CLUTCH
€ 187.50
13119
131191052
ref: 13119
CAM-RELEASE
€ 27.50
13119A
131191054
ref: 13119A
CAM-RELEASE
131191054
€ 17.50
13168
131681223
ref: 13168
LEVER,CLUTCH RELEASE
€ 18.50
13187
131871051
ref: 13187
PLATE-CLUTCH OPERATIN
€ 17.50
13194
131941055
ref: 13194
CLUTCH-ONEWAY
131941055
€ 85.50
13216
132161055
ref: 13216
GEAR-COMP,CLUTCH
€ 115.00
41035
410331567
ref: 41035
HUB-ASSY,CLUTCH
€ 141.50
41046
410461055
ref: 41046
HOUSING-BEARING
€ 20.00
92009
920091303
ref: 92009
SCREW,CLUTCH RELEASE
920091303
€ 8.00
92015
920151465
ref: 92015
NUT,16MM
920151465
€ 12.00
92022
92022186
ref: 92022
WASHER-PLAIN
92022186
€ 9.50
92027
920271798
ref: 92027
COLLAR,20X25X21
€ 14.00
92028
920281292
ref: 92028
BUSHING,CLUTCH
920281292
€ 18.00
92043
920431229
ref: 92043
PIN,CLUTCH
€ 9.00
92043A
920431230
ref: 92043A
PIN,CLUTCH RELEASE
920431230
€ 8.00
92045
920451117
ref: 92045
BALL ASSY CLUTCH REL
€ 12.50
92081
920811680
ref: 92081
SPRING,CLUTCH
920811680
€ 3.50
92081A
920811681
ref: 92081A
SPRING,
€ 4.00
130
130P0620
ref: 130
BOLT-FLANGED,6X20
130P0620
€ 2.00
317
317B0800
ref: 317
NUT,8M/M
317B0800
€ 0.50
411
411B0800
ref: 411
WASHER-PLAIN,8MM
411B0800
€ 0.50
482
482J6000
ref: 482
CIRCLIP-TYPE-E,6MM
482J6000
€ 0.50
601
601B6201
ref: 601
BEARING-BALL,#6201C3
601B6201
€ 6.50
670
670B1508
ref: 670
O RING,8MM
670B1508
€ 1.00
