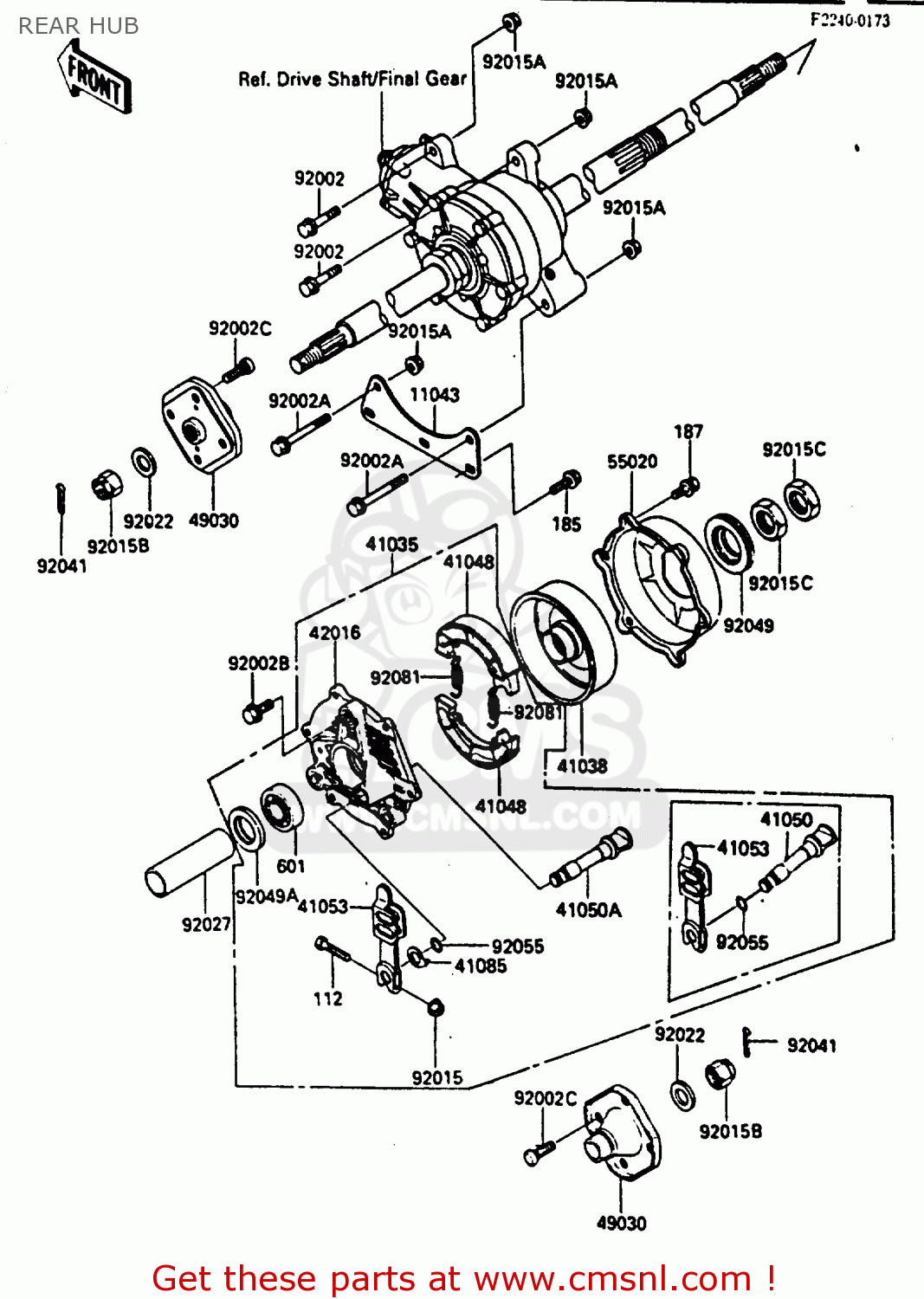

REAR HUB

ref

parte #

descripción

cantidad

11043

110431550
ref: 11043

BRACKET

€ 3.50

41035

410351196
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 278.50

41038

410381163
ref: 41038

DRUM,RR BRAKE

€ 107.50

41048

410481058
ref: 41048

SHOE-BRAKE

€ 25.00

41050

410501057
ref: 41050
(-LF185A-001431)

CAM-BRAKE

€ 26.50

41050A

410501062
ref: 41050A
(LF185A-001632-)

CAM-BRAKE

€ 26.50

41053

410531056
ref: 41053

LEVER-BRAKE CAM

€ 19.50

41085

410851053
ref: 41085
(LF185A-001632-)

INDICATOR

€ 6.00

49030

490301076
ref: 49030

HUB,RR

€ 52.00

55020

550201175
ref: 55020

GUARD,RR BRAKE DRUM

€ 10.50

92002

920021313
ref: 92002

BOLT,FLANGED,10X38

€ 6.00

92002A

920021315
ref: 92002A

BOLT,FLANGED,10X70

€ 6.50

92002B

920021368
ref: 92002B

BOLT,FLANGED,10X20

€ 4.00

92002C

920021459
ref: 92002C

BOLT,10MM

€ 3.00

92015

41072007
ref: 92015

NUT,6MM

€ 2.50

92015B

920151441
ref: 92015B

NUT,CASTLE,18MM

€ 7.00

92015C

920151493
ref: 92015C

NUT,LOCK,32MM

€ 6.50

92022

920221658
ref: 92022

WASHER,18.3X34X4.5

€ 3.00

92027

920271758
ref: 92027

COLLAR,RR HUB,L=124.5

€ 22.00

92041

920411053
ref: 92041

COTTER,4.0X35

€ 2.50

92049

920491194
ref: 92049

SEAL-OIL,RR BRAKE DRU

€ 8.00

92049A

920494001
ref: 92049A

SEAL-OIL,REAR HUB

€ 6.50

92055

920551258
ref: 92055

RING-O,ID=16.8

€ 2.50

92051

42020004
ref: 92051

SPRING-BRAKE SHOE

€ 5.00

112

112H0640
ref: 112

BOLT-UPSET,6X40

€ 1.50

185

185H0818
ref: 185

BOLT-UPSET-WSP-SMALL

€ 1.00

187

187D0614
ref: 187

BOLT-UPSET-WSP

€ 0.50

601

601A6007UU
ref: 601

BEARING-BALL,#6007UU

€ 24.50
