HANDLEBAR (AN400 L1 E33)

AN400A BURGMAN 2011 (L1) USA (E03)

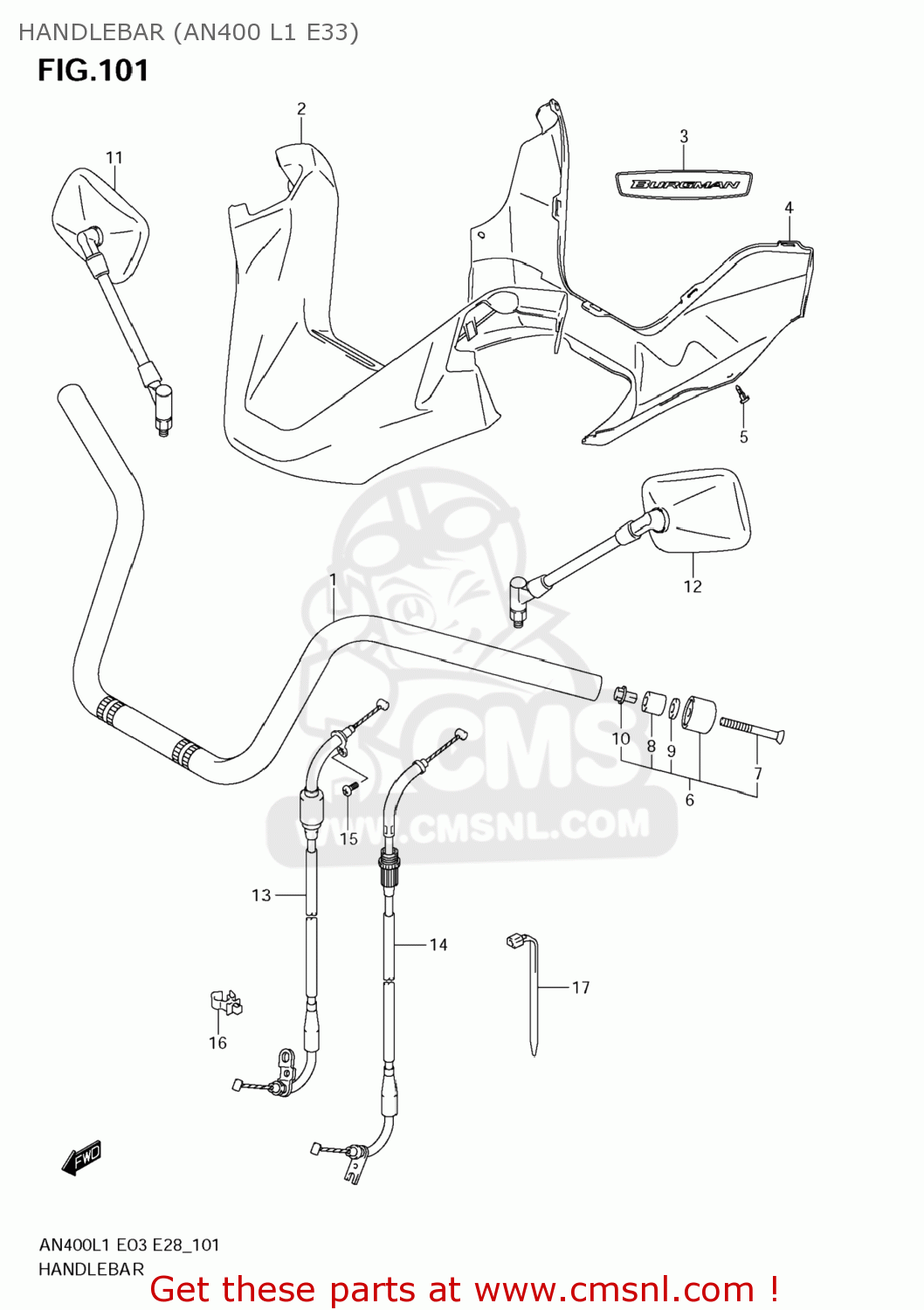

Handlebar (an400 l1 e33) diagram AN400A BURGMAN 2011 (L1) USA (E03)

HANDLEBAR (AN400 L1 E33) AN400A BURGMAN 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611105H00
ref: 1

HANDLEBAR

€ 85.00

2

5631105H01291
ref: 2

COVER,HANDLE FR

€ 58.00

3

6828115F50
ref: 3

EMBLEM,HANDLE COVER

€ 22.00

4

5632105H01291
ref: 4

COVER,HANDLE RR

€ 53.00

5

09409063145PK
ref: 5

CLIP(BLACK)

€ 2.50

6

5620016821
ref: 6

BALANCER SET,HANDLEBAR

€ 22.50

7

021220660B
ref: 7

SCREW

€ 2.50

8

5627210G00
ref: 8

EXPANDER,HANDLE BALANCER

€ 3.00

9

0916006131
ref: 9

WASHER(6.5X16X4)

€ 2.00

10

5627310G10
ref: 10

NUT,HANDLE BALANCER

€ 5.50

11

5650003FD0
ref: 11

MIRROR ASSY,RR VIEW,R

€ 161.00

12

5660003FD0
ref: 12

MIRROR ASSY,RR VIEW,L

€ 160.00

13

5830005H40
ref: 13

CABLE ASSY,THROTTLE NO.1

€ 59.00

14

5830005H10
ref: 14

CABLE ASSY,THROTTLE NO.2

€ 51.50

15

0912505073
ref: 15

SCREW(5X8)

€ 1.00

16

0940316406
ref: 16

CLAMP

€ 4.00

17

0940719401
ref: 17

CLAMP(L:190)

€ 2.00
