CRANKSHAFT

AN400A BURGMAN 2011 (L1) USA (E03)

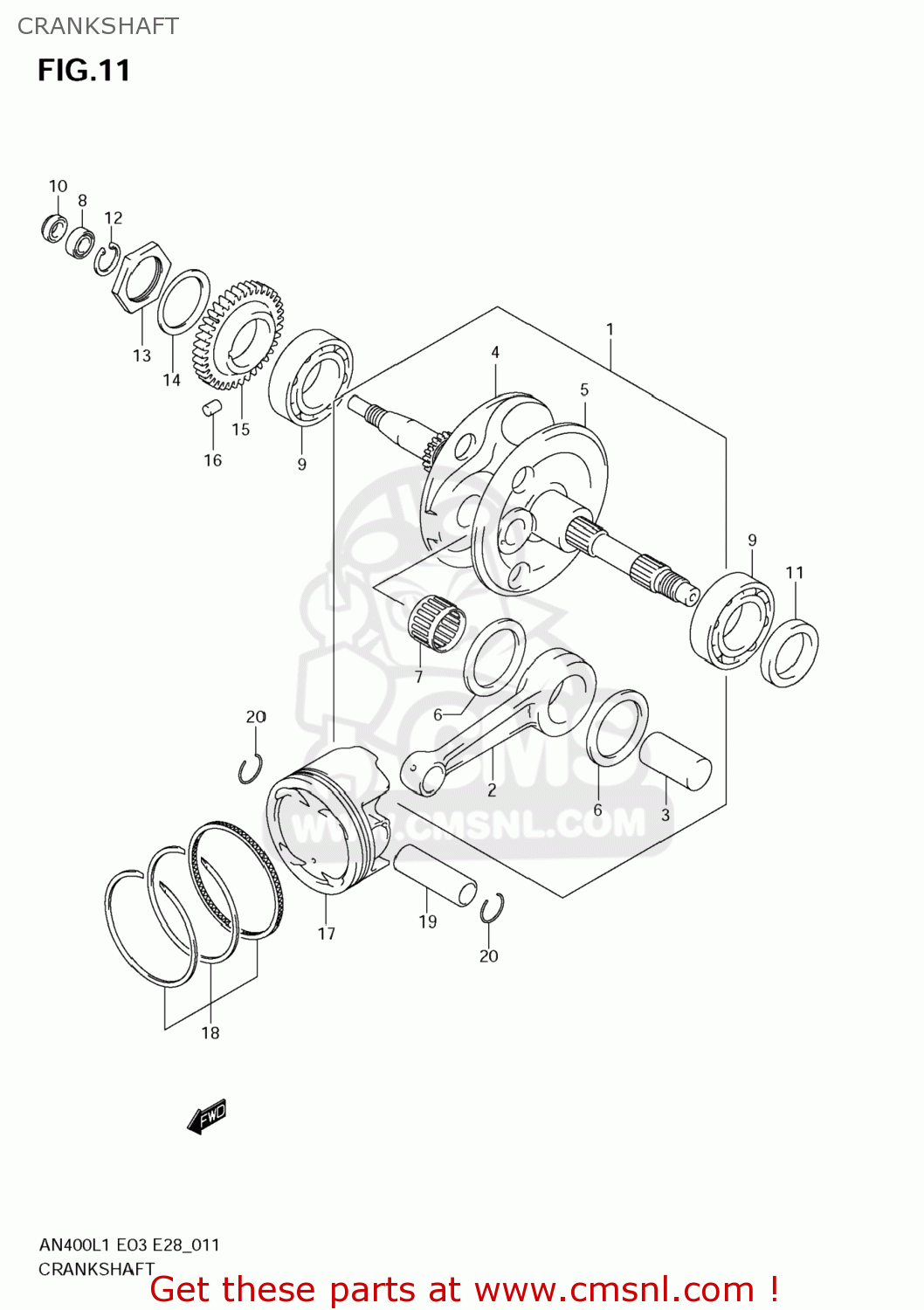

Crankshaft diagram AN400A BURGMAN 2011 (L1) USA (E03)

CRANKSHAFT AN400A BURGMAN 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1220005H10
ref: 1

CRANKSHAFT ASSY

€ 730.00

2

1216105H10
ref: 2

CONNECTING ROD

€ 134.50

3

1221015F10
ref: 3

PIN,CRANK

€ 51.00

4

1222005H00
ref: 4

CRANKSHAFT,R

€ 250.50

5

1226005H00
ref: 5

CRANKSHAFT,L

€ 217.00

6

0916035005
ref: 6

WASHER(35X55X1)

€ 8.00

7

0926335034
ref: 7

BEARING(35X45X22)

€ 61.00

8

0926212016
ref: 8

BEARING(12X32X10)

€ 14.50

9

0926235038
ref: 9

BEARING(35X72X17)

€ 30.50

10

0928212011
ref: 10

SEAL,OIL(12X29X6)

€ 11.00

11

0928334011
ref: 11

SEAL,OIL(34X52X6)

€ 17.00

12

083314132A
ref: 12

CIRCLIP

€ 2.00

13

1266424B01
ref: 13

NUT,FLYWHEEL

€ 9.00

14

0916435002
ref: 14

WASHER

€ 5.00

15

1266105H00
ref: 15

GEAR,CRANK BALANCER DRIVE

€ 85.00

16

0926105005
ref: 16

PIN(5X8)

€ 1.50

17

1211105H100F0
ref: 17

PISTON

€ 65.50

18

1214005H10
ref: 18

RING SET,PISTON

€ 73.00

19

1215105A00
ref: 19

PIN,PISTON

€ 11.50

20

0938120004
ref: 20

CIRCLIP,PISTON PIN

€ 1.50
