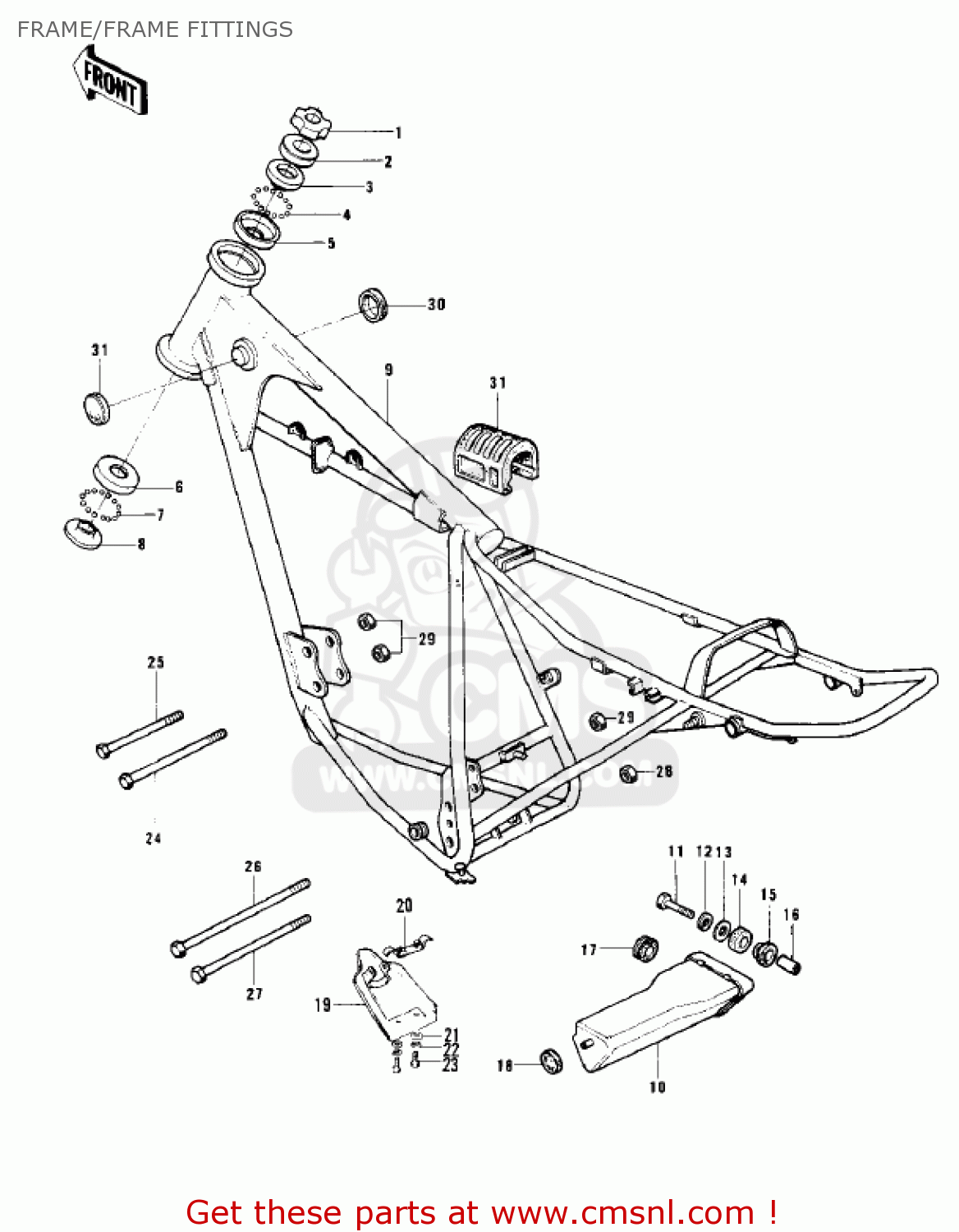

FRAME/FRAME FITTINGS

ref

part #

description

quantity

1

92090022
ref: 1

NUT,STEERING LOCK,25M

€ 17.50

2

46098012
ref: 2

CAP,STEERING STEM

€ 4.50

3

92047014
ref: 3

RACE,STEERING STEM BE

€ 12.00

4

600A0600
ref: 4

BALL-STEEL,3/16

€ 0.50

5

92048009
ref: 5

RACE,STRG STM

€ 13.00

6

92047010
ref: 6

CONE-STERNG BERG LOW

€ 9.50

7

600A0800
ref: 7

BALL-STEEL,1/4

€ 0.50

8

92048005
ref: 8

RACE-STEERING BEARING

€ 10.50

9

32002099
ref: 9

FRAME

€ 983.00

10

32098022
ref: 10

CASE,TOOL

€ 26.00

11

112G0625
ref: 11

BOLT-UPSET,6X25

€ 3.50

12

461F0600
ref: 12

WASHER-SPRING,6MM

€ 0.50

13

92022228
ref: 13

WASHER-PLAIN,7MM

€ 2.50

14

92075175
ref: 14

DAMPER,FEMALE

€ 2.50

15

92075174
ref: 15

DAMPER,MALE

€ 2.50

16

92027162
ref: 16

COLLAR-REAR FENDER

€ 4.00

17

92075150
ref: 17

DAMPER,OIL TANK

€ 2.50

18

92075107
ref: 18

DAMPER

€ 2.00

19

55011020
ref: 19

GUARD,ENGINE

€ 29.00

20

55016008
ref: 20
KD125-A4/A5

BRACKET,ENGINE GUARD

€ 5.00

21

92022125
ref: 21
KD125-A4/A5

WASHER,6.5X20X1.6

€ 1.00

22

461F0600
ref: 22
KD125-A4/A5

WASHER-SPRING,6MM

€ 0.50

23

112G0616
ref: 23
KD125-A4/A5

BOLT UPSET,6X16

€ 1.00

24

110B0865
ref: 24
KD125/A2/A3

BOLT,HEX HEAD,8X65

€ 1.00

24

920011583
ref: 24
KD125-A4/A5

BOLT,FLANGED,8X70

€ 5.50

25

110B0865
ref: 25

BOLT,HEX HEAD,8X65

€ 1.00

26

920011249
ref: 26

BOLT,HEX HEAD,10X130

€ 5.00

26

920011249
ref: 26

BOLT,HEX HEAD,10X130

€ 5.00

27

920011246
ref: 27
KD125

BOLT,HEX HEAD,10X117

€ 6.50

27

920011246
ref: 27
KD125

BOLT,HEX HEAD,10X117

€ 6.50

27

920011603
ref: 27
KD125-A2/A3/A4/A5

BOLT,FLANGED,10X115

€ 6.50

28

920151429
ref: 28

NUT,10MM

€ 4.00

29

92017013
ref: 29

NUT,LOCK,8MM

€ 5.50

30

92075101
ref: 30

DAMPER RUBBER-FL TANK

€ 3.50

31

92075215
ref: 31
KD125

DAMPER,FUEL TANK

€ 9.00

31

92075284
ref: 31
KD125-A2/A3/A4/A5

DAMPER,FUEL TANK

€ 11.50
