CRANKCASE

KD125-A3 1977 USA CANADA

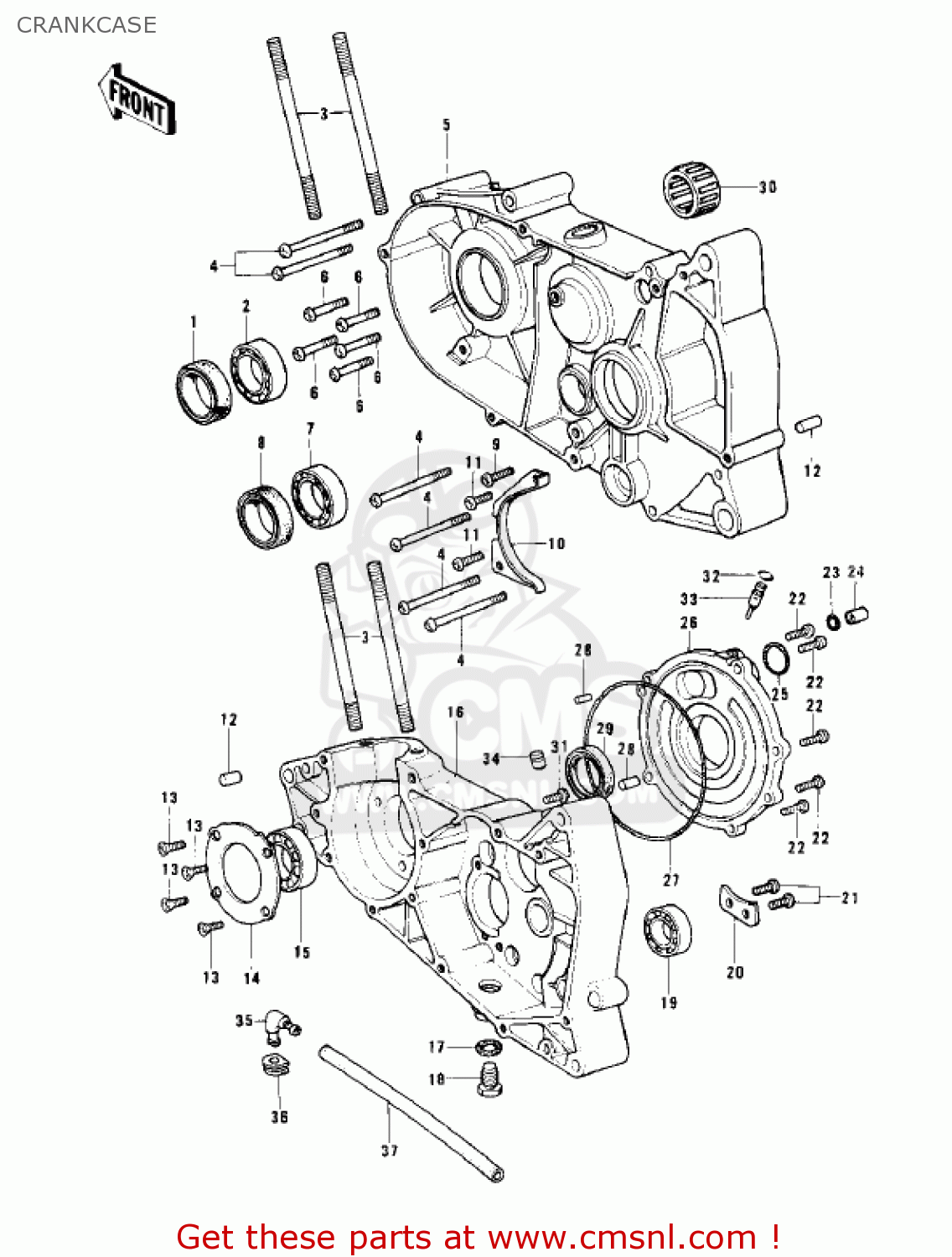

Crankcase diagram KD125-A3 1977 USA CANADA

CRANKCASE KD125-A3 1977 USA CANADA
CRANKCASE KD125-A3 1977 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
920491240
ref: 1
SEAL-OIL
920491240
€ 10.00
2
601B6204
ref: 2
BEARING-BALL,#6204C3
601B6204
€ 7.50
3
172G0870
ref: 3
STUD,8X70
172G0870
€ 3.50
4
220B0660
ref: 4
SCREW-PAN HEAD,6X60
220B0660
€ 2.50
5
140015149
ref: 5
KD125/A2/A3
CRANKCASE,LH BLACK
€ 466.50
5
140015138
ref: 5
KD125-A4/A5
SET-CRANKCASE,F.BLACK
€ 490.00
6
220B0640
ref: 6
SCREW-PAN HEAD,6X40
220B0640
€ 2.00
7
601B6004
ref: 7
BEARING-BALL,#6004C3
601B6004
€ 9.50
8
92050013
ref: 8
OIL SEAL SC25376
92050013
€ 8.50
9
220B0620
ref: 9
SCREW-PAN HEAD,6X20
220B0620
€ 2.00
10
14077003
ref: 10
GUIDE-CHAIN
14077003
€ 7.00
11
220B0612
ref: 11
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
12
920431037
ref: 12
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
13
221B0616
ref: 13
SCREW-CNTSNK HD,6X16
221B0616
€ 0.50
14
14014028
ref: 14
PLATE,CRANK BEARING
14014028
€ 4.50
15
601B6304
ref: 15
BEARING-BALL,#6304C3
601B6304
€ 29.00
16
14002104021
ref: 16
KD125/A2/A3
CRANKCASE,R.H,BLACK
14002104021
€ 178.00
16
140015138
ref: 16
KD125-A4/A5
SET-CRANKCASE,F.BLACK
€ 490.00
17
92065073
ref: 17
GASKET,12.5X18X1,DRAI (NAS)
92065073
€ 2.50
18
920661240
ref: 18
PLUG,DRAIN
920661240
€ 4.50
19
601B6203
ref: 19
BEARING-BALL,#6203C3
601B6203
€ 10.00
20
14014029
ref: 20
PLATE,MISSION BEARNG
14014029
€ 2.00
21
220B0612
ref: 21
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
22
220B0620
ref: 22
SCREW-PAN HEAD,6X20
220B0620
€ 2.00
23
92055029
ref: 23
RING-O,7.8X3.5
92055029
€ 2.50
24
92042037
ref: 24
KD125/A2
DOWEL PIN
92042037
€ 16.00
24
92042017
ref: 24
KD125-A3/A4/A5
PIN,DOWEL,8X16
92042017
€ 3.50
25
670B3028
ref: 25
O RING,28MM
670B3028
€ 2.50
26
14019052
ref: 26
KD125/A2
COVER,ROTALY DISK VL
14019052
€ 30.50
26
14019055
ref: 26
KD125-A3/A4/A5
COVER,ROTARY DISC
€ 46.00
27
92055057
ref: 27
RING-O,107.4X1.9
92055057
€ 5.00
28
610A0512
ref: 28
ROLLER,5X12
610A0512
€ 3.00
29
920491250
ref: 29
SEAL-OIL
920491250
€ 11.00
30
92046043
ref: 30
BEARING-NEEDLE,36BDM4
92046043
€ 16.00
31
220B0625
ref: 31
SCREW-PAN HEAD,6X25
220B0625
€ 1.50
32
92055080
ref: 32
RING-O,2.5X1.5
92055080
€ 3.00
33
92062012
ref: 33
NOZZLE
92062012
€ 8.00
34
92074035
ref: 34
PLUG,15X19
92074035
€ 4.00
35
140691001
ref: 35
KD125-A4/A5
BREATHER
140691001
€ 16.50
36
92071042
ref: 36
KD125-A4/A5
GROMMET
92071042
€ 2.50
37
140691001
ref: 37
KD125-A4/A5
BREATHER
140691001
€ 16.50
