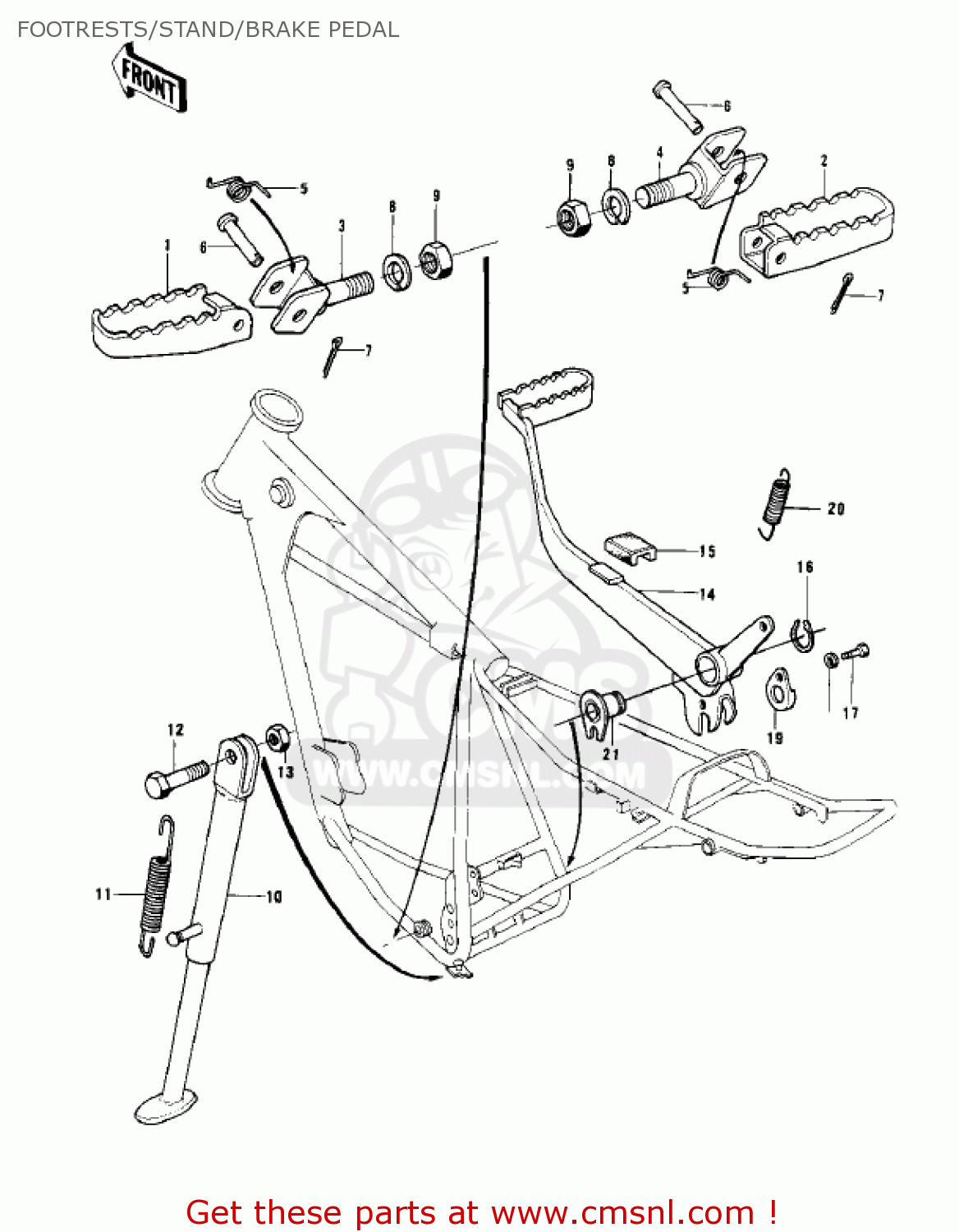

FOOTRESTS/STAND/BRAKE PEDAL

ref

part #

description

quantity

1

34028024
ref: 1

FOOTREST BAR,LH

€ 40.50

2

34028023
ref: 2

FOOTREST BAR,RH

€ 40.50

3

34003051
ref: 3

BRACKET,FOTRST BAR,LH

€ 27.50

4

34003052
ref: 4

BRACKET,FOTRST BAR,R

€ 24.00

5

92083027
ref: 5

FOOTREST BAR SPRING

€ 23.00

6

92043080
ref: 6

PIN-FOOTREST BAR FIT

€ 3.50

7

550D2515
ref: 7

PIN COTTER,295X15

€ 0.50

8

461F1400
ref: 8

WASHER-SPRING,14MM

€ 0.50

9

314B1400
ref: 9

NUT,14MM

€ 1.00

10

340241043
ref: 10

STAND,SIDE

€ 32.00

11

34025008
ref: 11

SPRING,SIDE STAND

€ 4.00

12

920011252
ref: 12

BOLT,HEX HEAD,10X35

€ 3.50

13

314B1000
ref: 13

NUT,10MM

€ 0.50

14

43001058
ref: 14

LEVER-BRAKE,PEDAL

€ 30.50

15

92075220
ref: 15

DAMPER,BRAKE PEDAL

€ 2.50

16

480J2200
ref: 16

CIRCLIP-TYPE-C,22MM

€ 2.50

17

220B0508
ref: 17

SCREW-PAN-CROS,5X8

€ 0.50

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

43081002
ref: 19

BRACKET,BRAKE PEDAL

€ 2.50

20

43005032
ref: 20

SPRING,BRAKE PEDAL

€ 4.00

21

92027210
ref: 21

COLLAR,BRAKE PEDAL

€ 20.00
