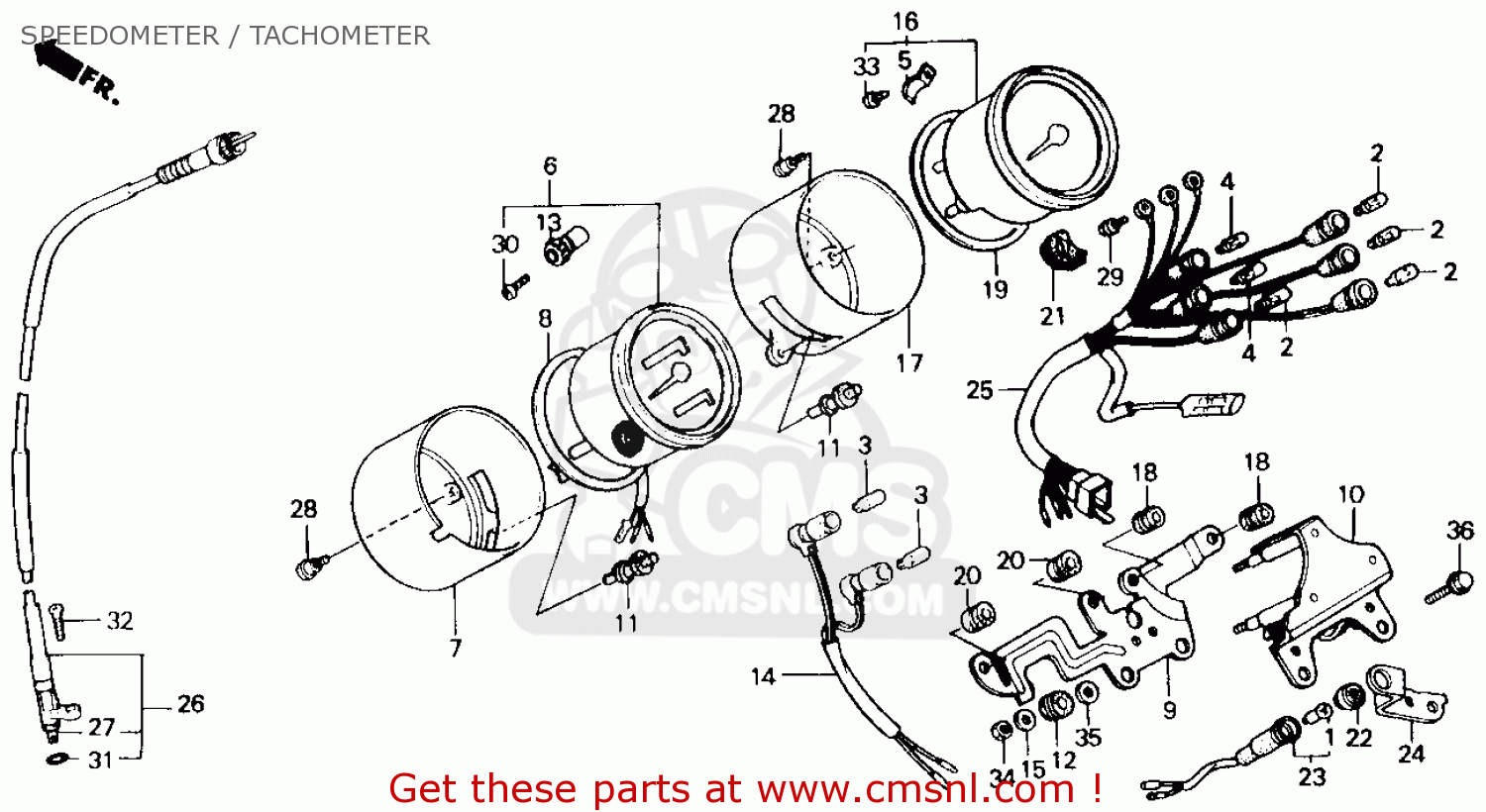

SPEEDOMETER / TACHOMETER

ref

Teil #

Beschreibung

Anzahl

1

34902259000
ref: 1

BULB, DASH

€ 3.00

2

34908KM1671
ref: 2

BULB,WEDGE BASE,(

€ 3.00

3

34908MB9871
ref: 3

BULB,WEDGE BASE

€ 4.00

4

34908MG9951
ref: 4

BULB,WEDGE BASE (

€ 3.00

5

37121MB6831
ref: 5

CLAMP

€ 1.50

6

37200MK6671
ref: 6

SPEEDOMETER ASSY.

€ 271.50

7

37202KN8008
ref: 7

COVER,SPEEDOMETER

€ 57.50

8

37204MK4611
ref: 8

CUSHION,SPEEDOMET

€ 6.50

9

37211MK4630
ref: 9

BRACKET (A)

€ 13.00

10

37212KN8730
ref: 10

BRACKET ASSY.(B)

€ 18.00

11

37214MK4611
ref: 11

STOPPER,METER BRA

€ 4.00

12

37215ME4671
ref: 12

RUBBER,MOUNTING

€ 4.50

13

37220MB4671
ref: 13

KNOB

€ 8.50

14

37224MK4611
ref: 14

SOCKET COMP.

€ 20.00

15

37244MA6008
ref: 15

WASHER,PLAIN

€ 3.00

16

37250MK6671
ref: 16

TACHOMETER ASSY.

€ 298.50

17

37252KN8008
ref: 17

COVER,TACHOMETER

€ 57.50

18

37253MK4611
ref: 18

CUSHION,TACHOMETE

€ 2.00

19

37254MK4611
ref: 19

CUSHION,TACHOMETE

€ 5.50

20

37255MK4611
ref: 20

CUSHION,SPEEDOMET

€ 2.00

21

37257MK4601
ref: 21

GROMMET,TACHOMETE

€ 5.00

22

37561MK6671
ref: 22

LENS COMP.,SIDE S

€ 5.00

23

37562MK6670
ref: 23

SOCKET COMP.,SIDE

€ 6.50

24

37590MK6670
ref: 24

STAY,SIDE STAND W

€ 6.50

25

37619MK6671
ref: 25

CORD COMP.

€ 54.50

26

44830MK4000
ref: 26

CABLE ASSY.,SPEED

€ 38.00

27

44831ML0720
ref: 27

CABLE,INNER

€ 9.50

28

90106KN8008
ref: 28

SCREW,TRUSS,4X12

€ 2.00

29

90108GN2008
ref: 29

SCREW-WASHER,3X10

€ 3.00

30

90600KJ9700
ref: 30

SCREW,PAN,2X6

€ 3.00

31

91301027000
ref: 31

ORING,6.8X1.9

€ 3.50

31

91306PJ4000
ref: 31

O RING, 6.8X1.9

€ 3.50

31

91310MC7003
ref: 31

O-RING B,6.8X1.9

€ 3.50

32

93700050160A
ref: 32

SCREW,OVAL,5X16

€ 1.00

33

9390324310
ref: 33

SCREW,4X12

€ 1.00

34

94002060700S
ref: 34

NUT,HEX.,6MM

€ 1.00

35

9410108700
ref: 35

WASHER,PLAIN,8MM

€ 1.00

36

957010801600
ref: 36

BOLT FLANGE 8X16

€ 1.00

alle Baugruppen
